LAN
1 x Realtek 1Gb Ethernet
-

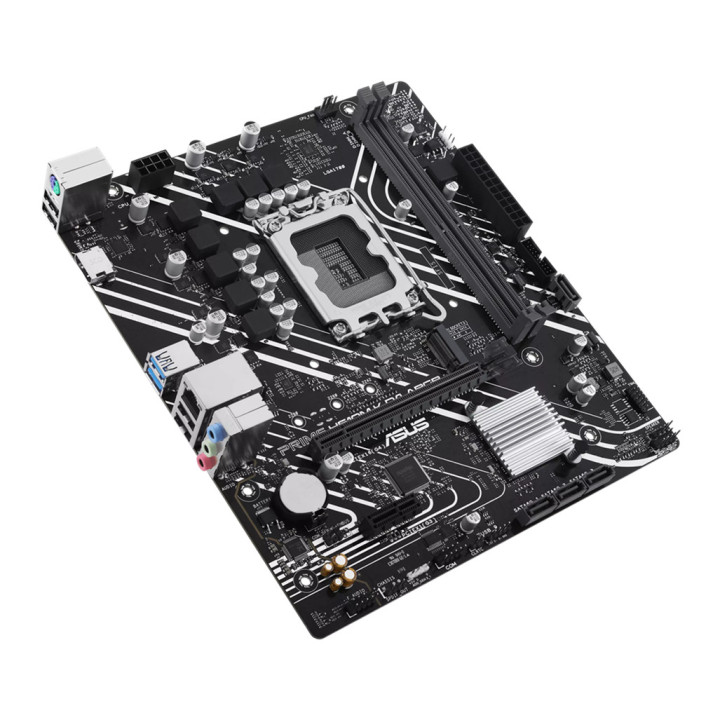

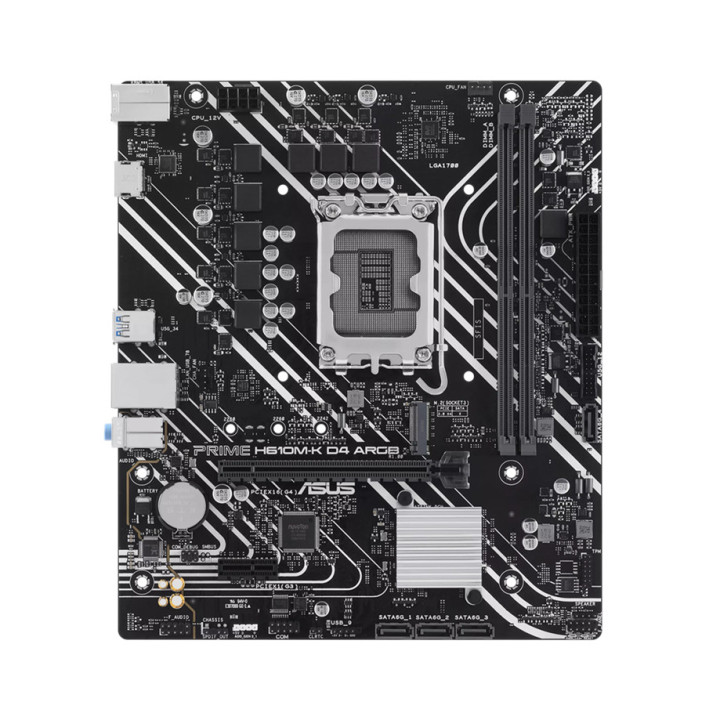

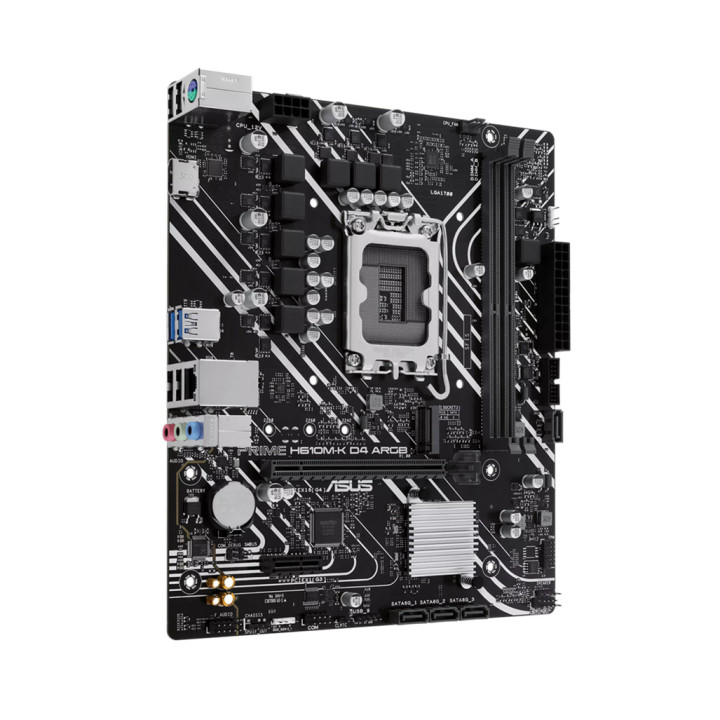

Model
PRIME H610M-K D4 ARGB
-
Manufacturer
ASUS
-
OS
Windows® 11, Windows® 10 64-bit
-
Vendor_url
https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-k-d4-argb/
-
Graphics
1 x HDMI™ port**;
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.;
** Supports 4K@60Hz as specified in HDMI 2.1.
-
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
Audio Features;
- Audio Shielding;
- Premium audio capacitors;
- Dedicated audio PC
-
Memory type
2 x DIMM slots, max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*;
Dual channel memory architecture;
Supports Intel® Extreme Memory Profile (XMP) memory module
-
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen);
1 x PCIe 4.0 x16 slot (supports x16 mode);
Intel® H610 Chipset;
1 x PCIe 3.0 x1 slot;
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of suppor
-
Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports;
Intel® H610 Chipset;
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode);
4 x SATA 6Gb/s ports
-
Chipset
Intel® H610
-
Дънна платка - сокет
LGA1700
-
Дънна платка - чипсет
INTEL H610
-
Дънна платка - поддържан тип памет
DDR4
-
Дънна платка - брой слотове за памет
2 бр
-
Дънна платка - честота на паметта
2133 MHz
2400 MHz
2666 MHz
2800 MHz
2933 MHz
3000 MHz
3200 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
-
Дънна платка - портове
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
Micro ATX
-
USB
Rear USB (Total 6 ports);
2 x USB 5Gbps ports (2 x Type-A);
4 x USB 2.0 ports (4 x Type-A);
Front USB (Total 3 ports);
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
1 x USB 2.0 header supports 1 additional USB 2.0 port
-
Form Factor
micro-ATX Form Factor;
23.4 cm x 20.3 cm
-

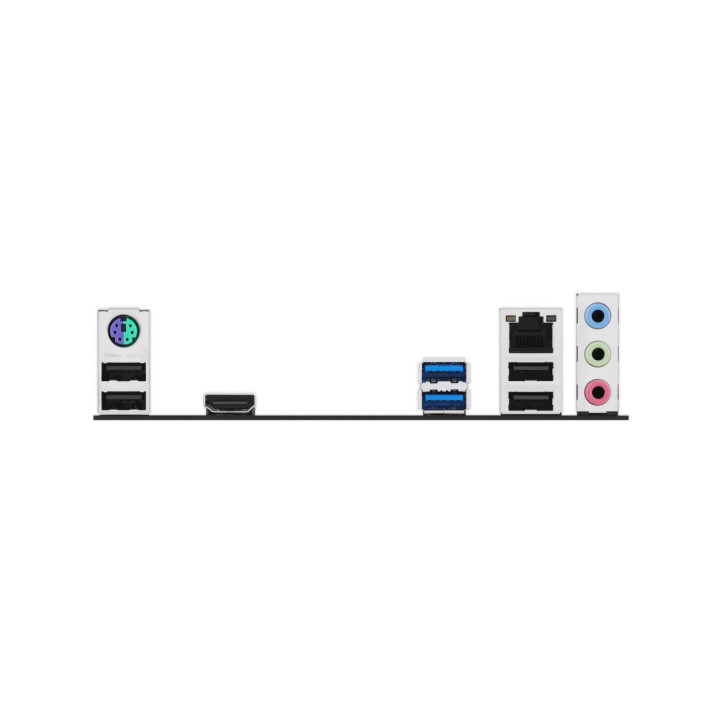

Rear panel I/O
2 x USB 5Gbps ports (2 x Type-A);
4 x USB 2.0 ports (4 x Type-A);
1 x HDMI™ port;
1 x Realtek 1Gb Ethernet port;
3 x Audio jacks;
1 x PS/2 keyboard/mouse combo port
-
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
-
Connectors
Fan and Cooling Related;
1 x 4-pin CPU Fan header;
1 x 4-pin Chassis Fan header;
Power Related;
1 x 24-pin Main Power connector;
1 x 8-pin +12V Power connector;
Storage Related;
1 x M.2 slot (Key M);
4 x SATA 6Gb/s ports;
USB;
1 x USB 5Gbps header support
-
CPU's supported
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*;
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**;
* Refer to www.asus.com for CPU suppo
