Bluetooth
5.4
-
LAN
1 x Intel® 2.5Gb Ethernet;ASUS LANGuard
-
Manufacturer
ASUS
-
OS
Windows® 11 (22H2 & later)
-
Vendor_url
https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-f-gaming-wifi/
-
Graphics
1 x DisplayPort;1 x HDMI® port;2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs
-
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 11
-
Memory type
4 x DIMM slots, max. 256GB, DDR5;Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture ;Supports Intel® Extreme Memory Profile (XMP) memory module;Supports DIMM FlexDIMM Fit;ASUS Enhanced Memory Profile I
-
Warranty
36 Months
-
Expansion Slots
Intel® Core™ Ultra Processors(Series 2);1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes);Intel® Z890 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode)
-
Storage
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors(Series 2);M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;M.2_3 slot (Key
-
Chipset
Intel® Z890 Chipset
-
Дънна платка - сокет
LGA1851
-
Дънна платка - чипсет
INTEL Z890
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - брой слотове за памет
4 бр
-
Дънна платка - честота на паметта
9066 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
ATX
-
USB
Rear USB (Total 14 ports);2 x Thunderbolt™ 4 (2 x USB Type-C®);6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports;Front USB (Total 9 ports);1 x USB 20Gbps
-
Form Factor
ATX Form Factor;30.5 cm x 24.4 cm
-

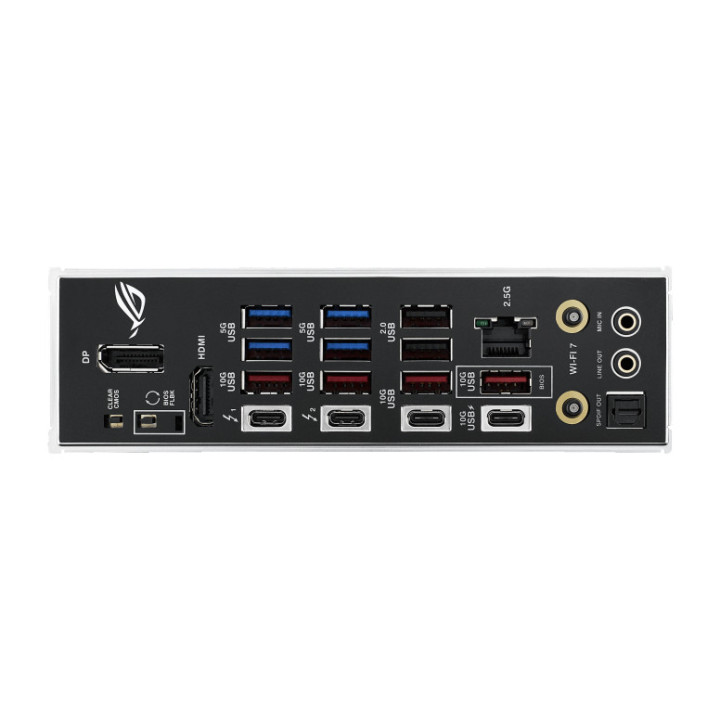

Rear panel I/O
2 x Thunderbolt™ 4 (2 x USB Type-C®);6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge);4 x USB 5Gbps ports (4 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x In
-
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
-
Connectors
Fan and Cooling related ;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;5 x 4-pin Chassis Fan headers;Power related ;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage related ;5 x M.2 slots (Key M
-
CPU's supported
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2);Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
-
Wireless
Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate;Bluetooth® v5.4
