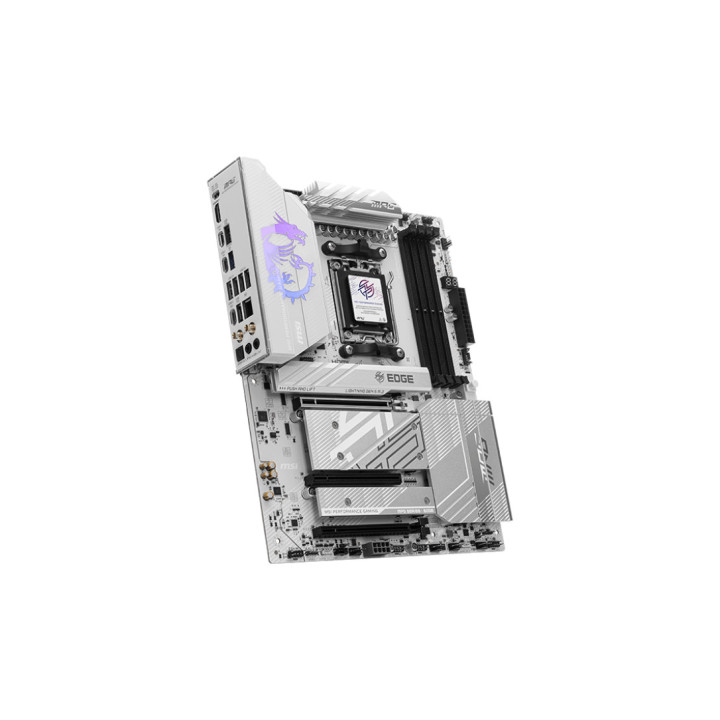

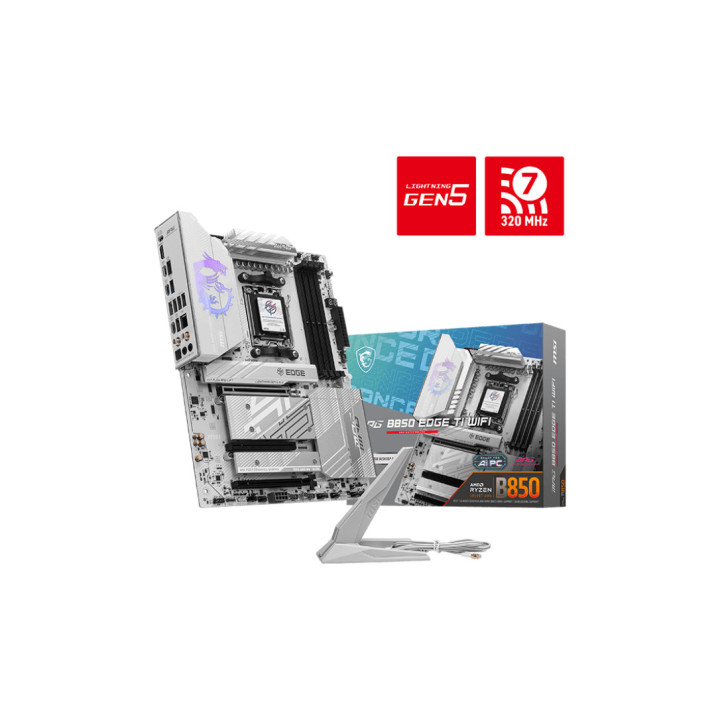

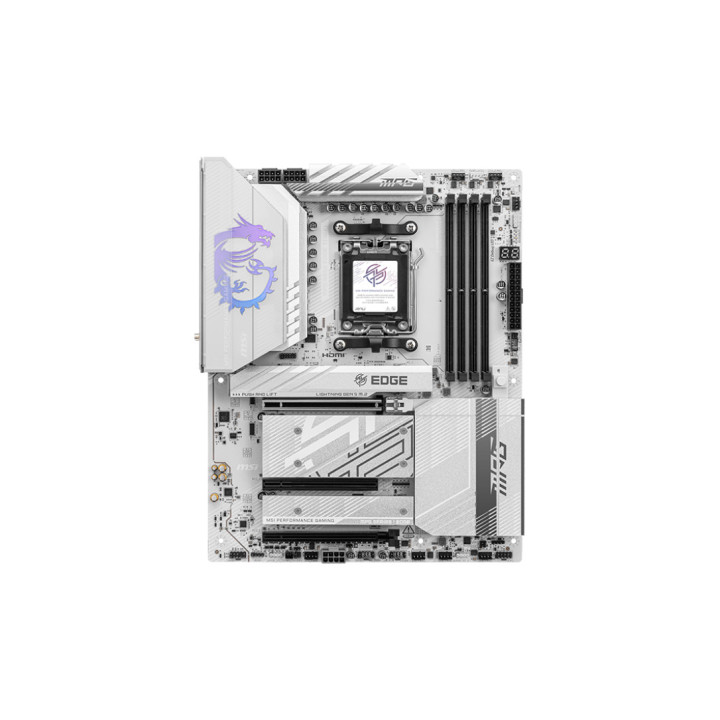

MSI MPG B850 EDGE TI WIFI /AM5

Name: MSI MPG B850 EDGE TI WIFI /AM5
Brand: MSI
SKU: 911-7E62-001
Price: 305.74 EUR
Availability: InStock

MSI

305,74 €

С вкл. данък

911-7E62-001_MO

Споделяне

MSI B850 4xDDR5 4xSATA3 RAID HDMI 4xM2 GLAN 3xPCIEx16 WiFi_MO

Марка
Референция

911-7E62-001
В наличност

5 Артикула
Състояние

Нов

Bluetooth

Supports Bluetooth® 5.4**, MLO, 4KQAM
LAN

1x Realtek® 8126 5G LAN
OS

Support for Windows® 11 64-bit
Vendor_url

https://www.msi.com/Motherboard/MPG-B850-EDGE-TI-WIFI
Graphics

1x HDMI™;Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz
Audio

Realtek® ALC4080 Codec;7.1-Channel USB High-Performance Audio;Supports up to 32-Bit/384 kHz playback on front panel;Supports S/PDIF output
Memory type

4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen™ 9000 Series Processors max. overclocking frequency:;• 1DPC 1R Max speed up to 8400+ MT/s;• 1DPC 2R Max speed up to 6400+ MT/s;• 2DPC 1
Warranty

36 Months
Expansion Slots

3x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E1 slot;• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors);• S
Storage

4x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices;M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices;M.2
Chipset

AMD B850
Дънна платка - чипсет

AMD B850
Дънна платка - поддържан тип памет

DDR5
Дънна платка - честота на паметта

4800 MHz
5600 MHz
6400 MHz
8400 MHz
9000 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
Дънна платка - портове

HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор

ATX
USB

4x USB 2.0 (Rear);4x USB 2.0 (Front);1x USB 5Gbps Type A (Rear);4x USB 5Gbps Type A (Front);2x USB 10Gbps Type A (Rear);3x USB 10Gbps Type C (Rear);1x USB 20Gbps Type C (Front)
Form Factor

ATX;304.8mmx243.84mm

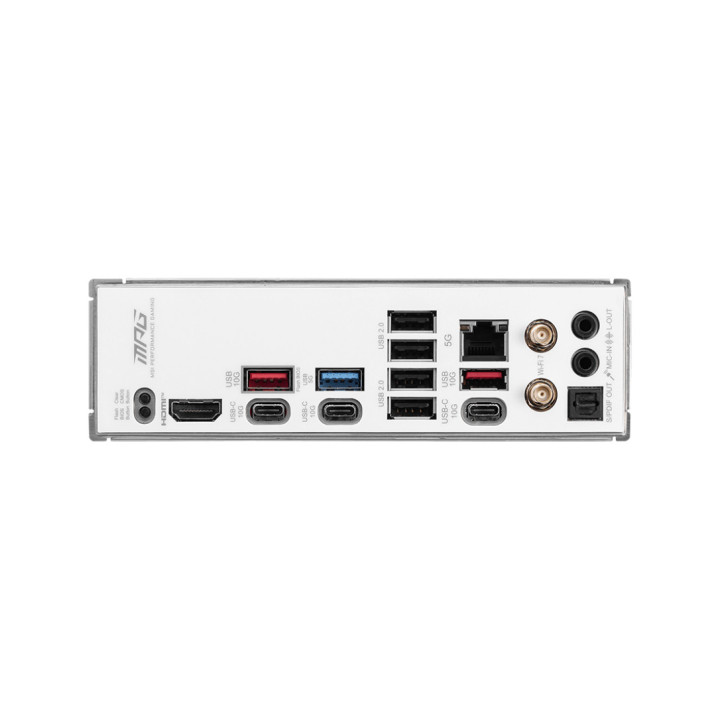

Rear panel I/O

Clear CMOS Button;USB 10Gbps Type-A;USB 5Gbps Type-A;USB 2.0;5G LAN;Wi-Fi / Bluetooth;Audio Connectors;Flash BIOS Button;HDMI™;USB 10Gbps Type-C;USB 10Gbps Type-A;USB 10Gbps Type-C;Optical S/PDIF Out
Connectors

1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);6x System Fan;1x EZ Conn-header (JAF_2);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);3x Addressable V
Wireless

Wi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
