LAN
Intel® Killer™ E5000 5Gbps LAN
-
Manufacturer
MSI
-
OS
Support for Windows® 11 64-bit
-
Vendor_url
https://www.msi.com/Motherboard/Z890-GAMING-PLUS-WIFI6E
-
Dimensions
ATX
243.84mmx304.8mm
-
Graphics
1x HDMI™;
Support HDMI™ 2.1, maximum resolution of 4K 60Hz;
1x DisplayPort;
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
-
Audio
Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
-
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 9200+ MT/s;
• 1DPC 2R Max speed up to 7200+ MT/s;
• 2DPC 1R Max speed up to 6400+ M
-
Expansion Slots
3x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
-
Storage
4x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices;
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260
-
Chipset
INTEL Z890
-
Дънна платка - чипсет
INTEL Z890
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - честота на паметта
4800 MHz
6400 MHz
7200 MHz
9200 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
SATA 3.0
-
Дънна платка - портове
USB 2.0
USB 3.2
-
USB
4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
4x USB 5Gbps Type A (Front);
1x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear);
1x USB 20Gbps Type C (Front)
-

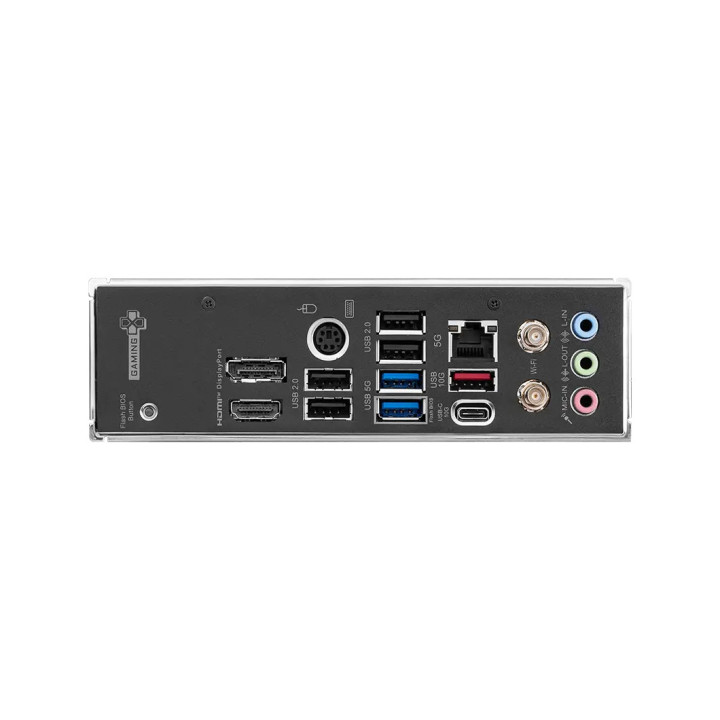

Rear panel I/O
1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x Power Connector(PCIE_PWR 8pin);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
5x System Fan;
1x EZ Conn-header (JAF_1);
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Tun
-
CPU's supported
Supports Intel® Core™ Ultra Processors (Series 2)
-
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices;
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
-
Wireless
Wi-Fi 6E module;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax
-
Socket
LGA 1851
