LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
-Smart Auto Adjust Bandwidth Control
-Visual User Friendly UI
-Visual Network Usage Statistics
-Optimized Default Setting for Game, Browser, and Streaming Modes
-
Manufacturer
ASROCK
-
OS
Microsoft Windows® 10 64-bit / 11 64-bit
-
Vendor_url
https://www.asrock.com/mb/AMD/A620AM-X%20WiFi/index.asp#Gallery
-
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU);
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 1
-
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
-
Memory type
Dual Channel DDR5 Memory Technology;
2 x DDR5 DIMM Slots;
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);
Max. capacity of system memory: 128GB;
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modu
-
Expansion Slots
CPU:;
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;
Chipset:;
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3);
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
-
Storage
CPU:;
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;
Chipset:;
- 4 x SATA3 6.0 Gb/s Connectors
-
Chipset
AMD A620A
-
Дънна платка - сокет
AM5
-
Дънна платка - чипсет
AMD A620A
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - брой слотове за памет
2 бр
-
Дънна платка - честота на паметта
8000 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
Micro ATX
-
USB
CPU:;
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_3));
Chipset:;
- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front);
- 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1 and USB32_2), 2 Front);
- 6 x USB 2.0 (2 Rear, 4 Front)
-
Form Factor
Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
-

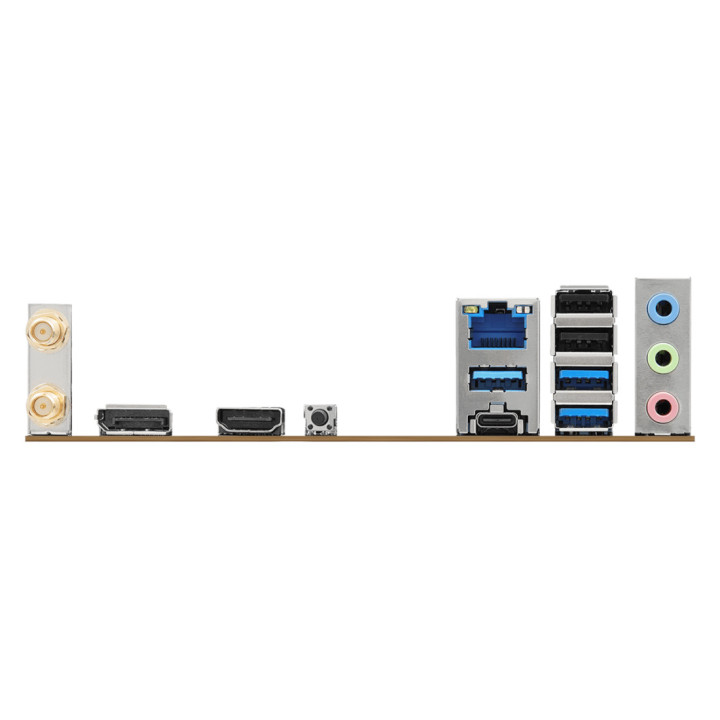

Rear panel I/O
2 x Antenna Ports;
1 x HDMI Port;
1 x DisplayPort 1.4;
1 x USB 3.2 Gen1 Type-C Port;
3 x USB 3.2 Gen1 Type-A Ports;
2 x USB 2.0 Ports;
1 x RJ-45 LAN Port;
1 x BIOS Flashback Button;
HD Audio Jacks: Line in / Front Speaker / Microphone
-
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
-
Connectors
1 x SPI TPM Header;
1 x Power LED and Speaker Header;
1 x RGB LED Header;
3 x Addressable LED Headers;
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);
1 x AIO Pump Fan Connector (4-pi
-
CPU's supported
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
-
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
