Bluetooth
5.3
-
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
-
Manufacturer
GIGABYTE
-
OS
Support for Windows 11 64-bit;Support for Windows 10 64-bit
-
Vendor_url
gigabyte.com/Motherboard/B650M-GAMING-WIFI6E-rev-12#kf
-
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
-
Audio
Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
-
Memory type
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffere
-
Warranty
36 Months
-
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.
-
Storage
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Ph
-
Chipset
AMD B650
-
Дънна платка - сокет
AM5
-
Дънна платка - чипсет
AMD B650
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - честота на паметта
4400 MHz
4800 MHz
5200 MHz
5600 MHz
6000 MHz
6200 MHz
6400 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
-
Дънна платка - портове
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
Micro ATX
-
USB
CPU:;- 2 x USB 3.2 Gen 1 ports on the back panel;- 1 x USB 2.0/1.1 port on the back panel;Chipset:;- 2 x USB 3.2 Gen 1 ports available through the internal USB header;- 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the intern
-
Form Factor
Micro ATX Form Factor; 24.0cm x 22.5cm
-

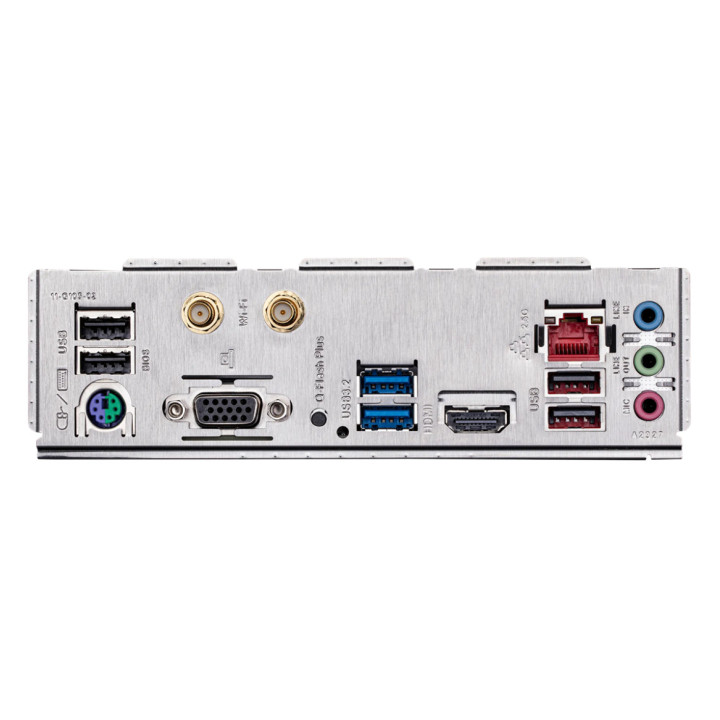

Rear panel I/O
iTE® I/O Controller Chip
-
BIOS
1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Connectors
1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable LED strip headers;1 x RGB LED strip header;1 x M.2 Socket 3 connector;4 x SATA 6Gb/s connectors;1 x front panel header;1 x fron
-
CPU's supported
AMD Socket AM5, support for:;AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
-
Wireless
Realtek® Wi-Fi 6E RTL8852CE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless
