LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
-
OS
Support for Windows 11 64-bit; Support for Windows 10 64-bit
-
Vendor_url
https://www.gigabyte.com/Motherboard/B650M-S2H-rev-10/sp#sp
-
Graphics
Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; - 1 x HDMI port, supporting a maximum reso
-
Audio
Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
-
Memory type
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffe
-
Warranty
36 Months
-
Expansion Slots
CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
-
Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support); Chipset: - 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, and RAID 10 support for SATA storage devices
-
Chipset
AMD B650
-
Дънна платка - чипсет
AMD B650
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - честота на паметта
4400 MHz
4800 MHz
5200 MHz
5600 MHz
6000 MHz
6200 MHz
6400 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
VGA
-
Дънна платка - форм фактор
Micro ATX
-
Form Factor
Micro ATX Form Factor; 23.0cm x 22.5cm
-

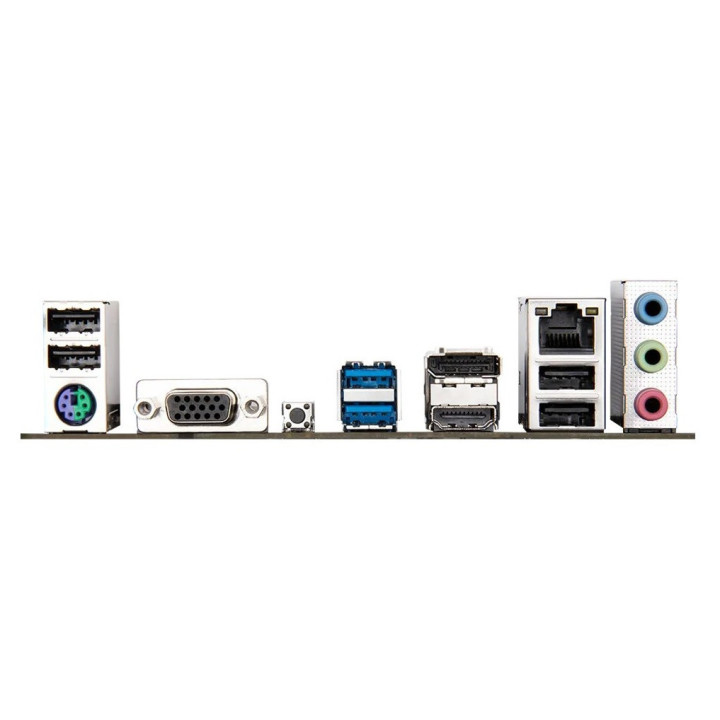

Rear panel I/O
4 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x Q-Flash Plus button; 2 x USB 3.2 Gen 1 ports; 1 x DisplayPort; 1 x HDMI port; 1 x RJ-45 port; 3 x audio jacks
-
BIOS
1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Connectors
1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header;
