GIGABYTE
149,30 €
С вкл. данък
B840 EAGLE WF6E 1.0_MO
Споделяне

GB B840 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 4xPCIEx16 WiFi_MO

  • Марка
  • Референция
    B840 EAGLE WF6E 1.0
  • В наличност
    5 Артикула
  • Състояние
    Нов

  • Bluetooth
    5.3
  • LAN
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Manufacturer
    GIGABYTE
  • OS
    Support for Windows 11 64-bit;Support for Windows 10 64-bit
  • Vendor_url
    https://www.gigabyte.com/Motherboard/B840-EAGLE-WIFI6E
  • Graphics
    Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support for native HDMI 2.1 TMDS compatible ports.;- 1 x DisplayPort
  • Audio
    Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure;7.1-channel audio, access the audio software for audio settings.
  • Memory type
    Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules;4
  • Warranty
    36 Months
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode;- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe
  • Storage
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:;- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 S
  • Chipset
    AMD B840
  • Дънна платка - сокет
    AM5
  • Дънна платка - чипсет
    AMD B840
  • Дънна платка - поддържан тип памет
    DDR5
  • Дънна платка - честота на паметта
    4400 MHz
    4800 MHz
    5200 MHz
    5600 MHz
    5800 MHz
    6000 MHz
    6200 MHz
    6400 MHz
    6600 MHz
    6800 MHz
    7000 MHz
    7200 MHz
    7400 MHz
    7600 MHz
    7800 MHz
    7900 MHz
    7950 MHz
    8000 MHz
    8200 MHz
  • Дънна платка - интерфейси
    M.2 (NVMe) конектор
  • Дънна платка - портове
    USB 2.0
    USB 3.2
  • Дънна платка - форм фактор
    ATX
  • USB
    CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;- 2 x USB 3.2 Gen 1 ports on the back panel;CPU+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel;Chipset:;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 1 x USB Typ
  • Form Factor
    ATX Form Factor; 30.5cm x 24.4cm

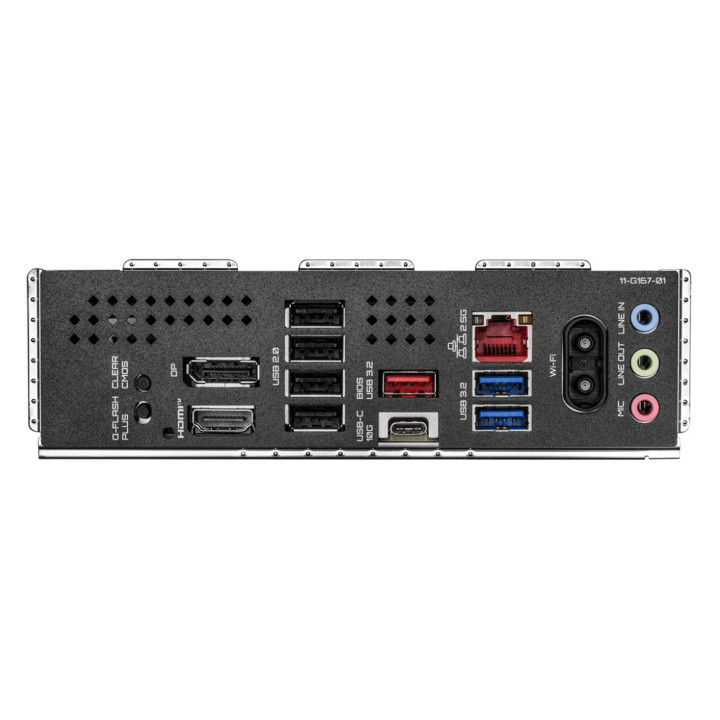

  • Rear panel I/O
    iTE® I/O Controller Chip
  • BIOS
    1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Connectors
    1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip hea
  • CPU's supported
    AMD Socket AM5, support for:;AMD Ryzen™ 9000 Series Processors/;AMD Ryzen™ 8000 Series Processors/;AMD Ryzen™ 7000 Series Processors
  • Wireless
    Realtek® Wi-Fi 6E RTL8852CE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard
