GB B850 GAMING WF6 /AM5

Name: GB B850 GAMING WF6 /AM5
Brand: GIGABYTE
SKU: B850 GAMING WF6 1.0
Price: 177.41 EUR
Availability: InStock

GIGABYTE

177,41 €

С вкл. данък

B850 GAMING WF6 1.0_MO

Споделяне

GB B850 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 4xPCIEx16 WiFI _MO

Марка
Референция

B850 GAMING WF6 1.0
В наличност

5 Артикула
Състояние

Нов

Bluetooth

5.3
LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Manufacturer

GIGABYTE
OS

Support for Windows 11 64-bit;Support for Windows 10 64-bit;Software: Norton® Internet Security (OEM version);LAN bandwidth management software
Vendor_url

https://www.gigabyte.com/Motherboard/B850-GAMING-WIFI6#kf
Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version and HDR.;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Su
Audio

Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
Memory type

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.;
Warranty

36 Months
Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x
Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 800
Chipset

AMD B850
Дънна платка - сокет

AM5
Дънна платка - чипсет

AMD B850
Дънна платка - поддържан тип памет

DDR5
Дънна платка - честота на паметта

4400 MHz
4800 MHz
5200 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
Дънна платка - портове

USB 3.2
Дънна платка - форм фактор

ATX
USB

CPU:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 4 x USB 3.2 Gen 1 po
Form Factor

ATX Form Factor; 30.5cm x 24.4cm

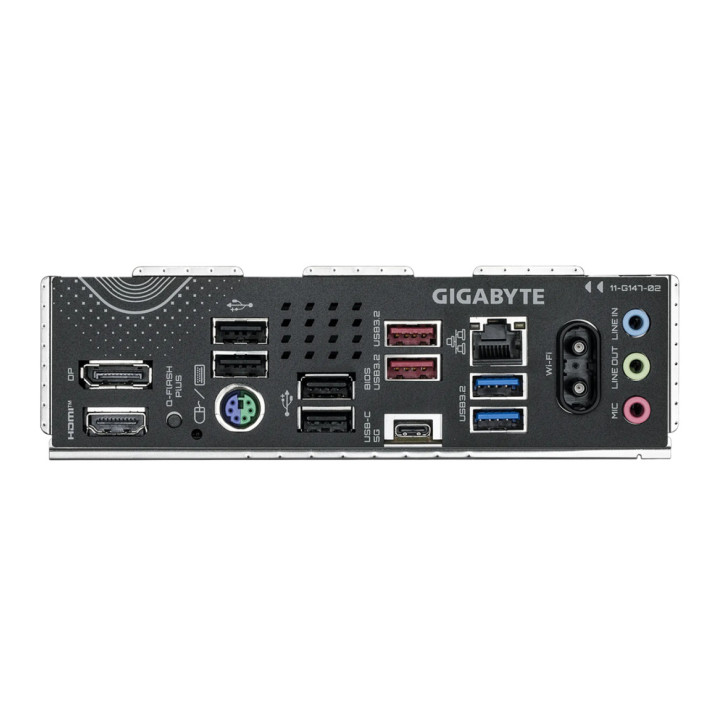

Rear panel I/O

iTE® I/O Controller Chip
BIOS

1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connectors

1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x 4-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED s
CPU's supported

AMD Socket AM5, support for:;AMD Ryzen™ 9000 Series Processors/;AMD Ryzen™ 8000 Series Processors/;AMD Ryzen™ 7000 Series Processors
Wireless

Realtek® Wi-Fi 6 RTL8851BE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 80MHz wireless standard
