Bluetooth
5.3
-
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
-
OS
Support for Windows 11 64-bit;Support for Windows 10 64-bit;Norton® Internet Security (OEM version);LAN bandwidth management software
-
Vendor_url
https://www.gigabyte.com/Motherboard/B760M-D3HP-WIFI6
-
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for
-
Audio
Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
-
Memory type
14th and 13th Generation Intel® Core™ i9/i7 Processors:;- Support for DDR5 5600/5200/4800/4400 MT/s memory modules;13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:;- Support for DDR5 4800/4400 MT/
-
Expansion Slots
CPU:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
-
Storage
CPU:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 suppor
-
Chipset
Intel® B760 Express Chipset
-
Дънна платка - чипсет
INTEL B760
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - честота на паметта
4400 MHz
4800 MHz
5200 MHz
5600 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
SATA 3.0
-
Дънна платка - портове
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
Micro ATX
-
USB
Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports on the back panel;Chipse
-
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
-

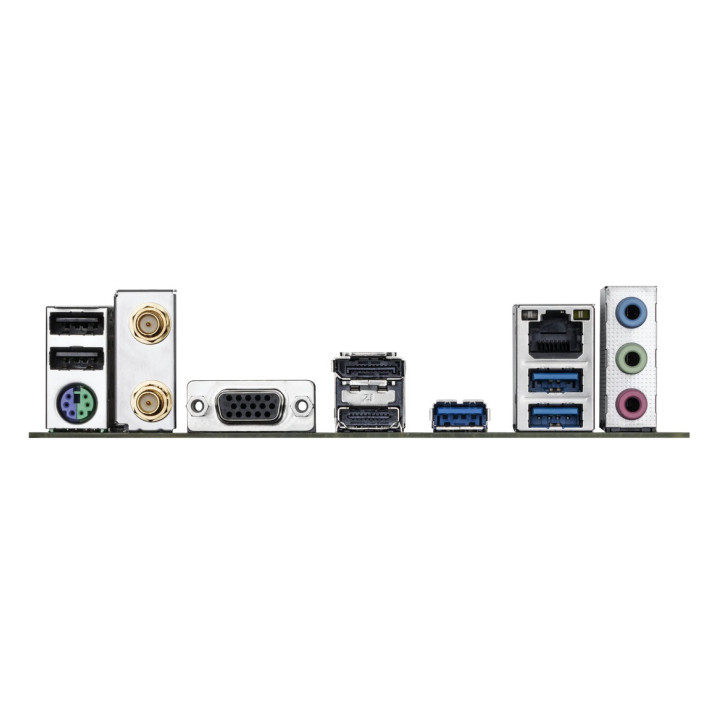

Rear panel I/O
iTE® I/O Controller Chip
-
BIOS
1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Connectors
1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;3 x system fan headers;1 x addressable LED strip header;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header;1 x fron
-
Wireless
Realtek® Wi-Fi 6 RTL8851BE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 80MHz wireless standard;(Actual data rate may vary depending on environment and equipment.)
