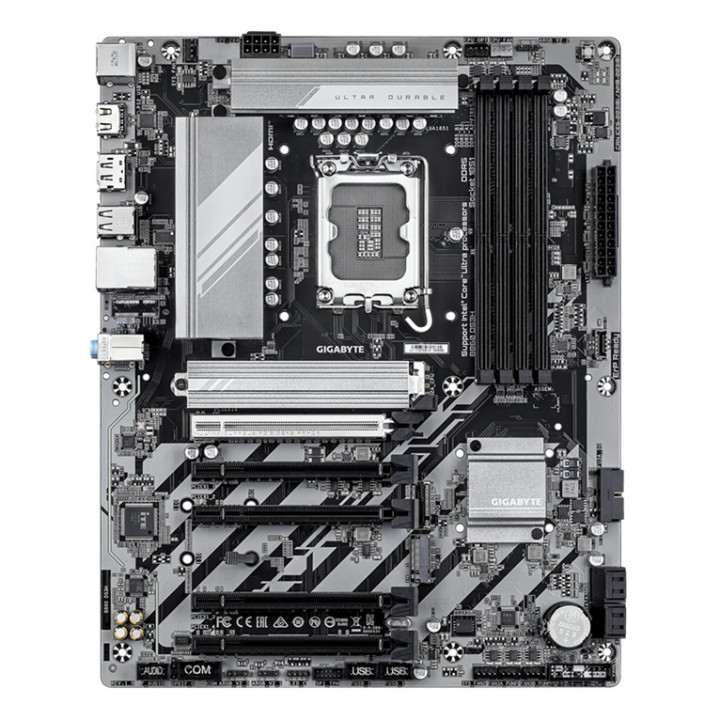

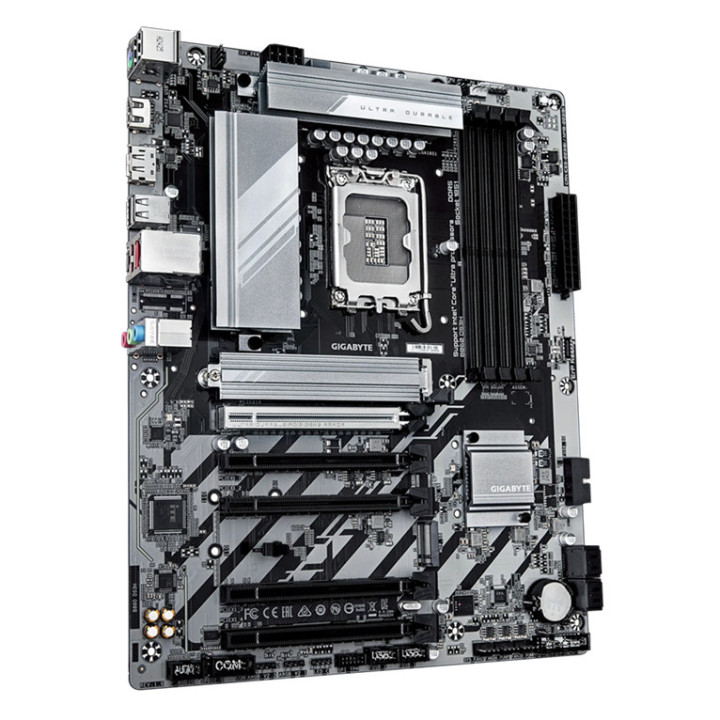

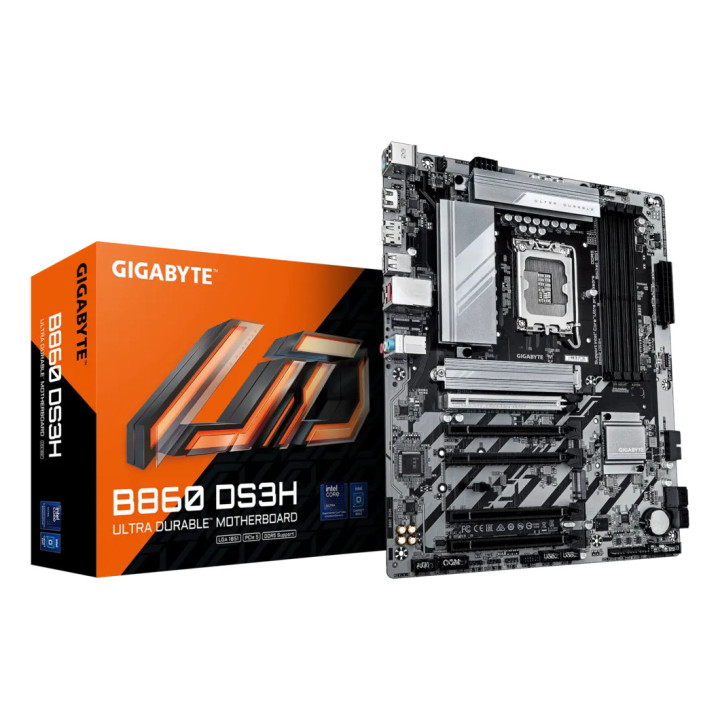

GB B860 DS3H /LGA1851

Name: GB B860 DS3H /LGA1851
Brand: GIGABYTE
SKU: B860 DS3H 1.0
Price: 152.66 EUR
Availability: InStock

GIGABYTE

152,66 €

С вкл. данък

B860 DS3H 1.0_MO

Споделяне

GB B860 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 GLAN 5xPCIEx16_MO

Марка
Референция

B860 DS3H 1.0
В наличност

5 Артикула
Състояние

Нов

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Manufacturer

GIGABYTE
OS

Support for Windows 11 64-bit;Support for Windows 10 64-bit;* The Intel® NPU driver is only supported on Windows 11;Software: Norton® Internet Security (OEM version);LAN bandwidth management software
Vendor_url

https://www.gigabyte.com/Motherboard/B860-DS3H#kf
Graphics

Integrated Graphics Processor-Intel® HD Graphics support;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for
Audio

Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
Memory type

Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules;4 x DDR5 DIM
Warranty

36 Months
Expansion Slots

CPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 4 x P
Storage

CPU:;- 1 x M.2 connector (Socket 3, M key, type 25110/ 22110/ 2580/ 2280 PCIe 5.0 x4/ x2 SSD support) (M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 25110/ 22110/ 2580/ 2280 PCIe 4.0 x4/ x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;
Chipset

Intel® B860 Express Chipset
Дънна платка - сокет

LGA1851
Дънна платка - чипсет

INTEL B860
Дънна платка - поддържан тип памет

DDR5
Дънна платка - честота на паметта

5600 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
8266 MHz
8400 MHz
8600 MHz
8800 MHz
9066 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове

USB 3.2
Дънна платка - форм фактор

ATX
USB

Chipset:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 2 x USB 3.2 Gen 1 ports
Form Factor

ATX Form Factor; 30.5cm x 24.4cm

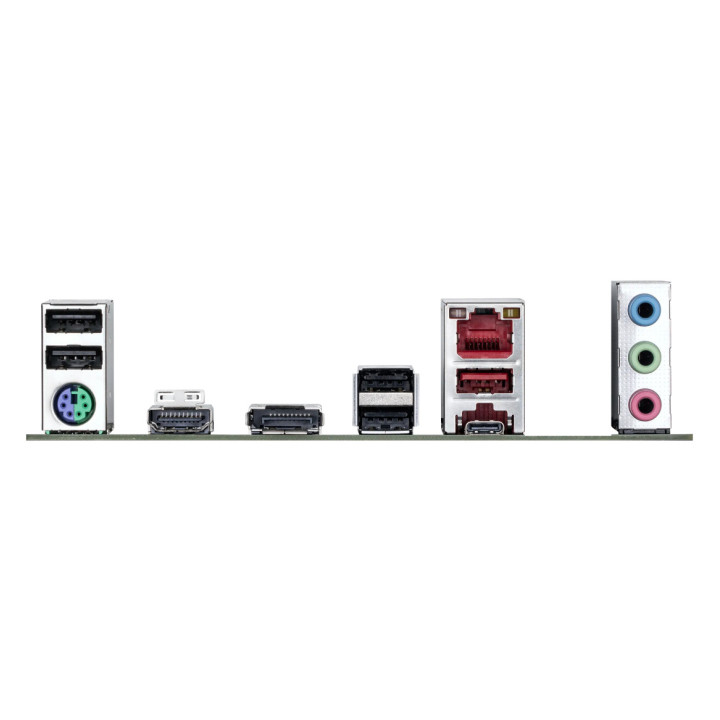

Rear panel I/O

iTE® I/O Controller Chip
BIOS

1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connectors

1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;2 x system fan headers;2 x system fan/water cooling pump headers;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip he
CPU's supported

LGA1851 socket: Support for Intel® Core™ Ultra Processors;L3 cache varies with CPU

Поръчай спокойно

Сигурно плащане Карта, банков превод или наложен платеж. Данните ти са защитени със SSL криптиране.
Бърза доставка Изпращаме до 1–2 работни дни със Спиди или Еконт, в подсилена опаковка, за да пристигне цял.
14 дни право на връщане Не е това, което очакваше? Върни го до 14 дни и ти възстановяваме сумата.
Гаранция и поддръжка Гаранция на цялата конфигурация и сервиз при нас. Ако възникне проблем, ние го поемаме.

Коментари (0)

Все още няма отзиви от клиенти.
