Bluetooth
5.3
-
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
-
OS
Support for Windows 11 64-bit;Software: Norton® Internet Security (OEM version);LAN bandwidth management software
-
Vendor_url
https://www.gigabyte.com/Motherboard/B860-GAMING-X-WIFI6E#kf
-
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version;- 1 x HDMI port, supporting a maximum
-
Audio
Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
-
Memory type
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules;4 x DDR5 DIMM s
-
Expansion Slots
CPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 2 x P
-
Storage
CPU:;- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);Chipset:;- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RA
-
Chipset
Intel ® B860 Express Chipset
-
Дънна платка - чипсет
INTEL B860
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - честота на паметта
5600 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
8266 MHz
8400 MHz
8600 MHz
8800 MHz
9066 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
SATA 3.0
-
Дънна платка - портове
USB 3.2
USB 4.0
-
Дънна платка - форм фактор
ATX
-
USB
CPU:;- 1 x USB4® USB Type-C® port on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 4 x USB 3.2 Gen 1 ports (2 ports on the bac
-
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
-

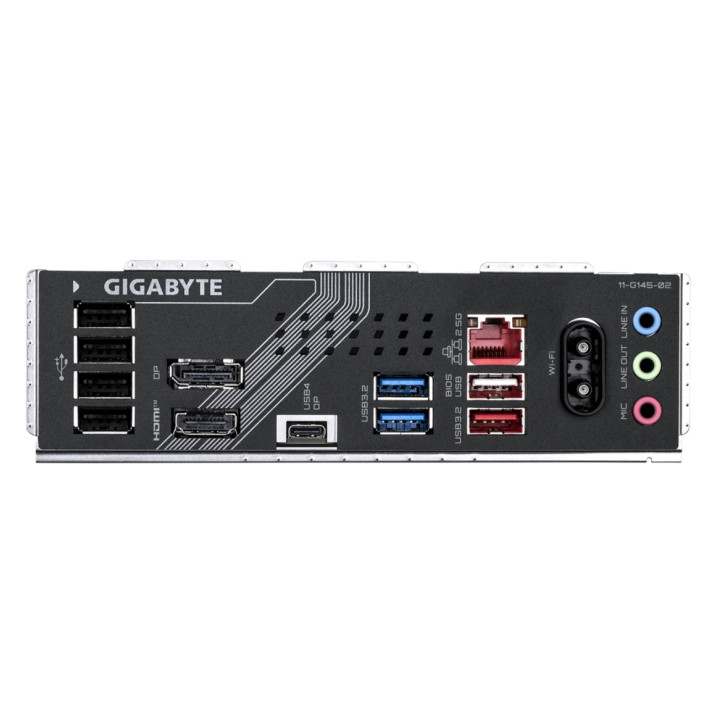

Rear panel I/O
iTE® I/O Controller Chip
-
BIOS
1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Connectors
1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip hea
-
Wireless
Intel ® Wi-Fi 6E AX211 (PCB rev. 1.0);- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard;Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1);- WIFI a, b, g, n, ac, ax, supporting 2.
