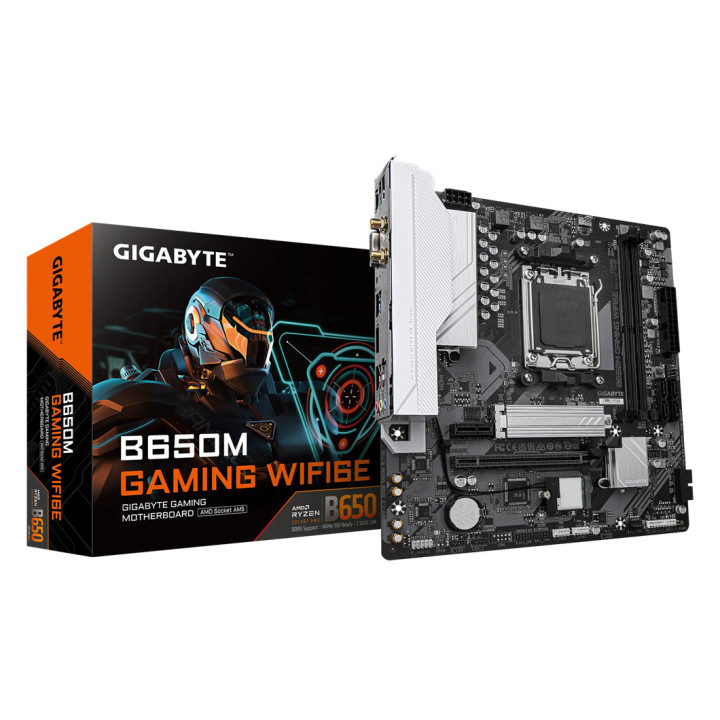

GIGABYTE B650M GAMING WIFI6E

GB B650M GAMING WIFI6E / AM5
Product ID: 72131

• Vendor_url: gigabyte.com/Motherboard/B650M-GAMING-WIFI6E-rev-12#kf

• Manufacturer: GIGABYTE

• Graphics: Integrated Graphics Processor with AMD Radeon™ Graphics support;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• CPU's supported: AMD Socket AM5, support for:;AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

• Chipset: AMD B650

• Expansion slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage: 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:;AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;4 x SATA 6Gb/s connectors;RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• Memory type: Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme;Memory Profile (XMP) memory modules

• Rear panel I/O: iTE® I/O Controller Chip

• USB: CPU:;- 2 x USB 3.2 Gen 1 ports on the back panel;- 1 x USB 2.0/1.1 port on the back panel;Chipset:;- 2 x USB 3.2 Gen 1 ports available through the internal USB header;- 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header);Chipset+USB 2.0 Hub:;- 2 x USB 2.0/1.1 ports available through the internal USB header

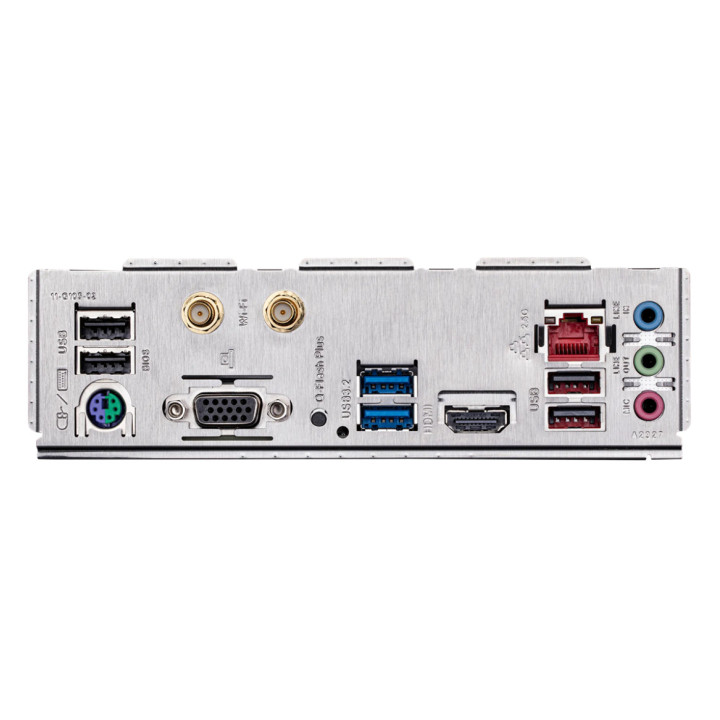

• Connectors: 1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable LED strip headers;1 x RGB LED strip header;1 x M.2 Socket 3 connector;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio header;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x Clear CMOS jumper;Back Panel Connectors;4 x USB 2.0/1.1 ports;1 x PS/2 keyboard/mouse port;1 x D-Sub port;1 x Q-Flash Plus button;2 x USB 3.2 Gen 1 ports;1 x HDMI port;1 x RJ-45 port;3 x audio jacks

• Audio: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel

• Lan: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless: Realtek® Wi-Fi 6E RTL8852CE;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless

• Bluetooth: 5.3

• BIOS: 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Form factor: Micro ATX Form Factor; 24.0cm x 22.5cm

• OS: Support for Windows 11 64-bit;Support for Windows 10 64-bit
