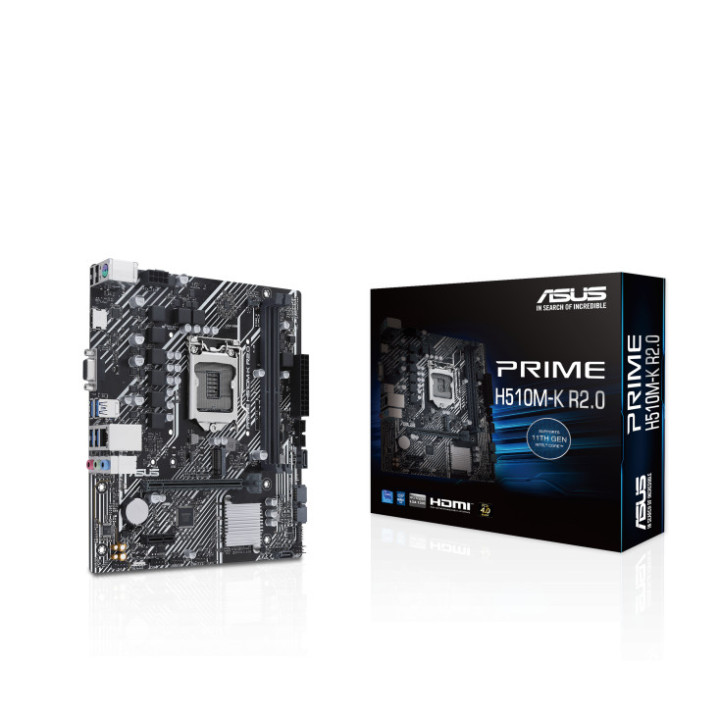

ASUS PRIME H510M-K GEN 3/4

ASUS PRIME H510M-K R2.0
Product ID: 68056
Mnfr. Part#: PRIME H510M-K R2.0

• Graphics: 1 x VGA port; 1 x HDMI™ port**

• CPU`s supported: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.

• Chipset: Intel® H470 Chipset

• Expansion Slots: Intel® 11th & 10th Gen Processors*; 1 x PCIe 4.0/3.0 x16 slot; - Intel® 11th Gen processors support PCIe 4.0 x16; - Intel® 10th Gen processors support PCIe 3.0 x16; Intel® H470 Chipset; 1 x PCIe 3.0 x1 slot

• Storage: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H470 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports

• Memory type: 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)

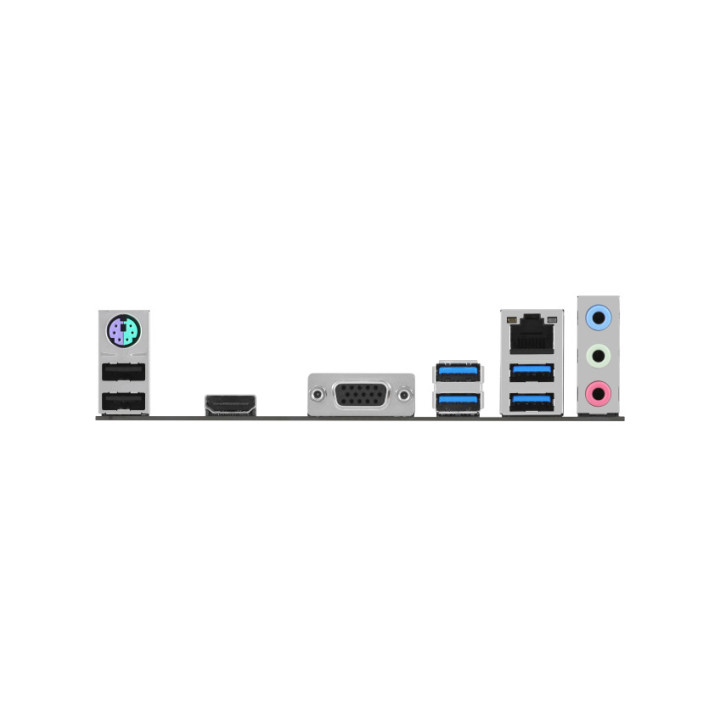

• I/O: 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x VGA port; 1 x HDMI™ port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port

• Connectors: 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header

• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers

• LAN: 1 x Realtek 1Gb Ethernet

• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

• Form Factor: micro-ATX Form Factor; 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )

• OS: Windows® 10 64-bit
