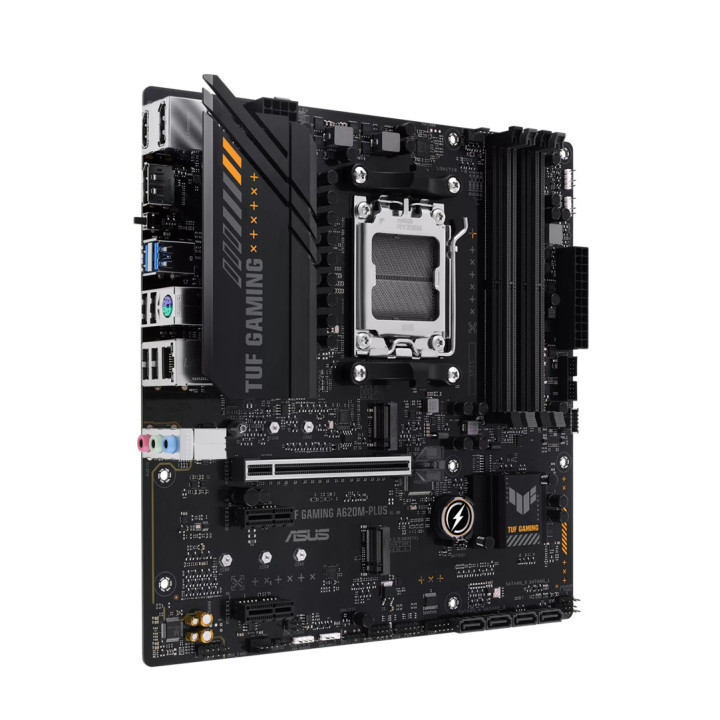

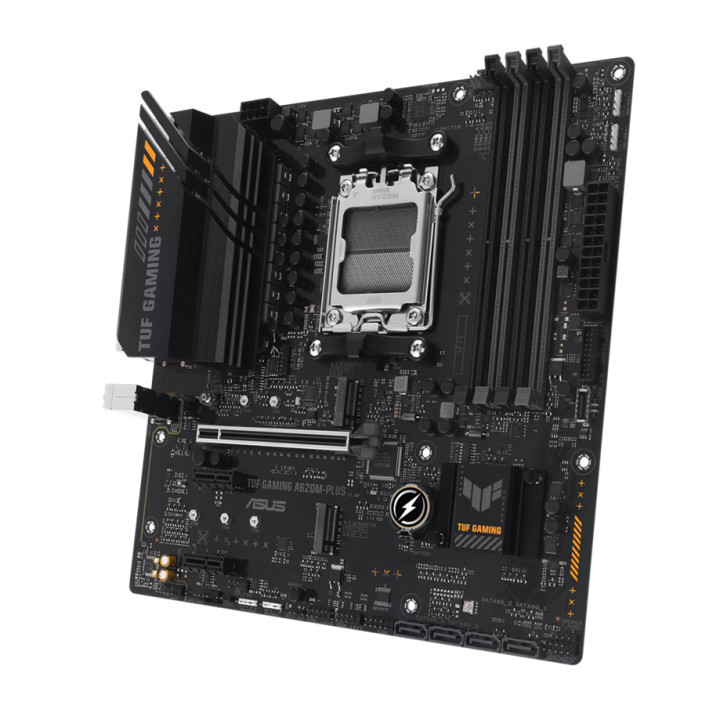

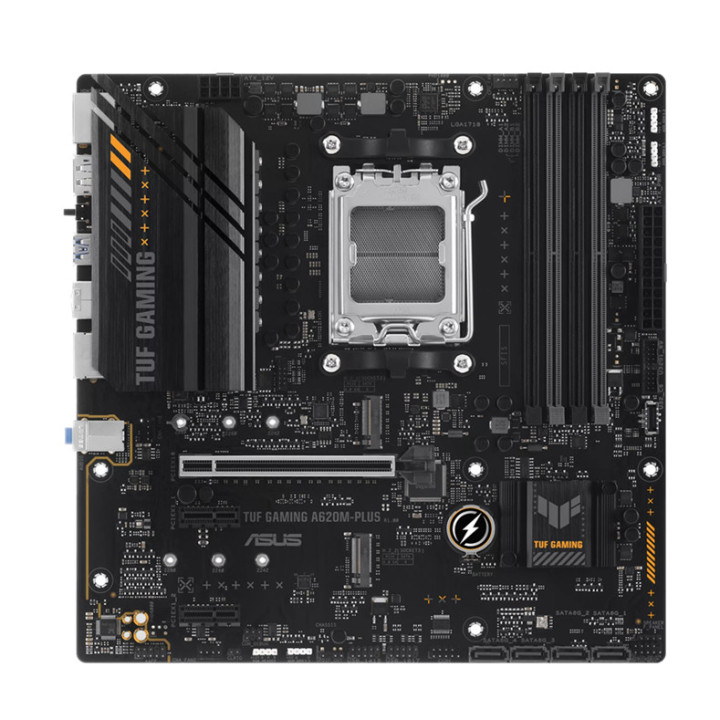

ASUS TUF GAMING A620M-PLUS

Name: ASUS TUF GAMING A620M-PLUS
Brand: ASUS
SKU: 90MB1EZ0-MOEAY0
Price: 141.11 EUR
Availability: InStock

ASUS

141,11 €

С вкл. данък

90MB1EZ0-MOEAY0_MO

Споделяне

_MO

Марка
Референция

90MB1EZ0-MOEAY0
В наличност

5 Артикула
Състояние

Нов

LAN

1 x Realtek 2.5Gb Ethernet;
TUF LANGuard
Model

TUF GAMING A620M-PLUS
Manufacturer

ASUS
OS

Windows 11, Windows 10 64-bit
Vendor_url

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-a620m-plus/
Dimensions

24.4 cm x 24.4 cm
Graphics

2 x DisplayPort**;
1 x HDMI™ port***;
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.;
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.;
*** Supports 4K@60Hz as specified in HDMI 2.1.
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
Audio Features;
- Audio Shielding;
- Premium audio capacitors;
- Dedicated audio PC
Memory type

4 x DIMM slots, max. 192GB, DDR5 ECC and Non-ECC Un-buffered DIMM;
Supports up to 7600+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors;
Dual channel memory architecture;
Supports AMD Extended Profiles for Overclocking (EXPO™);
ASUS Enhanced Memo
Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors;
1 x PCIe 4.0 x16 slot (supports x16 mode);
AMD Ryzen™ 8000 Series Desktop Processors;
1 x PCIe 4.0 x16 slot (supports x8/x4 mode);
AMD A620A Chipset;
1 x PCIe 3.0 x1 slot
Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;
AMD Ryzen™ 9000 & 7000 Series Desktop Processors;
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);
AMD Ryzen™ 8000 Series
Chipset

AMD A620A Chipset
Дънна платка - сокет

AM5
Дънна платка - чипсет

AMD A620A
Дънна платка - поддържан тип памет

DDR5
Дънна платка - брой слотове за памет

4 бр
Дънна платка - честота на паметта

7000 MHz
7600 MHz
8000 MHz
9000 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
Дънна платка - портове

Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор

Micro ATX
USB

Rear USB (Total 6 ports);
2 x USB 10Gbps ports (2 x Type-A);
4 x USB 2.0 ports (4 x Type-A);
Front USB (Total 7 ports);
1 x USB 5Gbps connector (supports USB Type-C®);
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
2 x USB 2.0 headers support
Form Factor

micro-ATX Form Factor
Rear panel I/O

2 x USB 10Gbps ports (2 x Type-A);
4 x USB 2.0 ports (4 x Type-A);
2 x DisplayPort;
1 x HDMI™ port;
1 x Realtek 2.5Gb Ethernet port;
3 x Audio jacks;
1 x BIOS FlashBack™ button;
1 x PS/2 keyboard/mouse combo port
BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Connectors

Fan and Cooling Related;
1 x 4-pin CPU Fan header;
2 x 4-pin Chassis Fan headers;
Power Related;
1 x 24-pin Main Power connector;
1 x 8-pin +12V CPU Power connector;
Storage Related;
2 x M.2 slots (Key M);
4 x SATA 6Gb/s ports;
USB;
1 x USB 5Gbps connecto
CPU's supported

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors;
Supports up to AMD 170W CPU
RAID

AMD RAIDXpert2 Technology;
Ryzen™ 9000 Series Processors: RAID 0/1/5/10;
Ryzen™ 8000 Series Processors: RAID 0/1;
Ryzen™ 7000 Series Processors: RAID 0/1/10
