LAN
1 x Realtek 2.5Gb Ethernet
-
Manufacturer
ASUS
-
OS
Windows® 11, Windows® 10 64-bit
-
Vendor_url
https://www.asus.com/motherboards-components/motherboards/csm/prime-b650-plus-csm/
-
Graphics
1 x DisplayPort;1 x HDMI® port
-
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layer
-
Memory type
4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports AMD Extended Profiles
-
Warranty
36 Months
-
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD B650 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode);2 x PCIe 4.0 x1 slot
-
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 mod
-
Chipset
AMD B650 Chipset
-
Дънна платка - сокет
AM5
-
Дънна платка - чипсет
AMD B650
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - честота на паметта
4800 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7600 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
ATX
-
USB
Rear USB (Total 8 ports);4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®);2 x USB 3.2 Gen 1 ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 1 connector (supports USB Type-C®);1 x USB 3.2 Gen 1 header suppo
-
Form Factor
ATX Form Factor, 30.5 cm x 24.4 cm
-

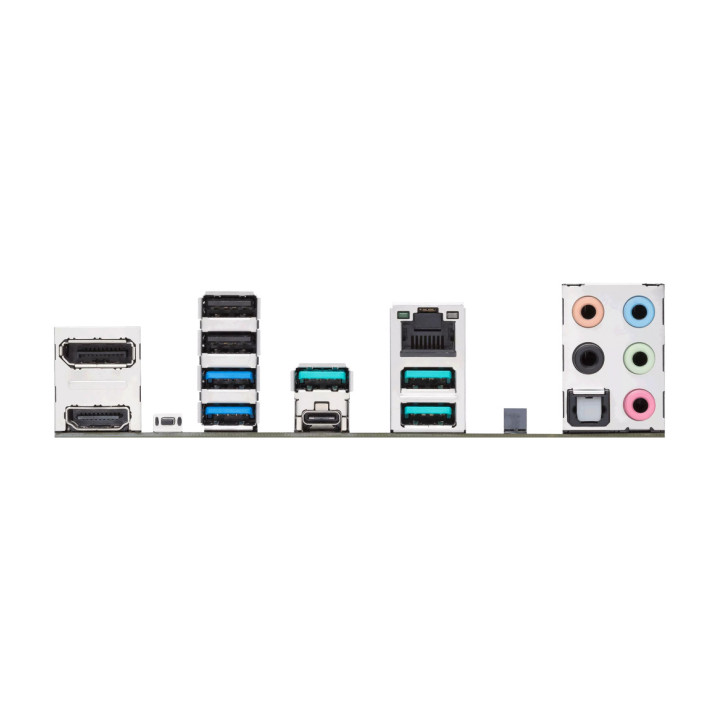

Rear panel I/O
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®);2 x USB 3.2 Gen 1 ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x Vertical M.2 slot (Key E);1 x Realtek 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out
-
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
-
Connectors
Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M)4 x SAT
-
CPU's supported
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
-
Wireless
Vertical M.2 slot only (Key E, PCIe)
