Bluetooth
5.4
-
LAN
1 x Intel® 2.5Gb Ethernet TUF LANGuard
-
Manufacturer
ASUS
-
OS
Windows 11 (22H2 & later)
-
Vendor_url
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z890-plus-wifi/
-
Graphics
1 x DisplayPort**;1 x HDMI™ port***;1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output******;* Graphics specifications may vary between C
-
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming,
-
Memory type
4 x DIMM slots, max. 192GB, DDR5;Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*;Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AE
-
Warranty
36 Months
-
Expansion Slots
Intel® Core™ Ultra Processors(Series 2)*;-1 x PCIe 5.0 x16 slot;Intel® Z890 Chipset;-1 x PCIe 4.0 x16 slot (supports x4 mode);-1 x PCIe 4.0 x4 slot;-2 x PCIe 4.0 x1 slots
-
Storage
Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors(Series 2)*;-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);-M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);Intel® Z890 Chipset;-M.2_3 slo
-
Chipset
Intel® Z890 Chipset
-
Дънна платка - сокет
LGA1851
-
Дънна платка - чипсет
INTEL Z890
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - брой слотове за памет
4 бр
-
Дънна платка - честота на паметта
9066 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 3.2
-
Дънна платка - форм фактор
ATX
-
Form Factor
ATX Form Factor 30.5 cm x 24.4 cm
-

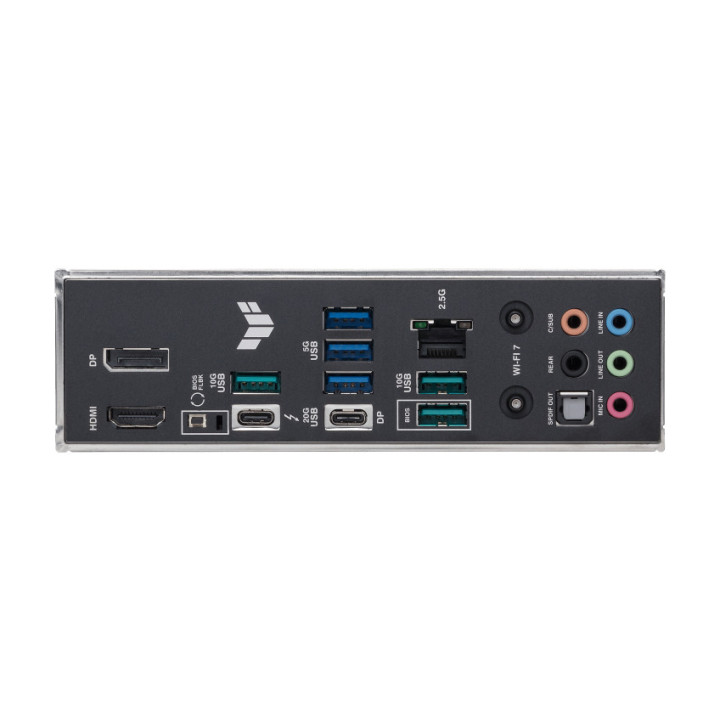

Rear panel I/O
1 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Intel® 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack™ button;Rear USB (Total 8 ports)1 x Thunderbolt™ 4 port (1 x USB Type-C®);1 x USB 20Gbps port (1 x USB Type-C®);3
-
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
-
Connectors
Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connector;Storage Related;4 x M.2 slots (Key M);4
-
CPU's supported
Support Intel® Core™ Ultra Processors (Series 2), LGA1851*;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
-
Wireless
Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band**;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.;Bluetooth® v5.4***;*Wi-Fi features may vary depending on the operating system;For Windows 11, Wi-Fi 7 will require 24H2 o
