LAN
Realtek® 8111H 1G LAN
-
Manufacturer
MSI
-
OS
Support for Windows® 11 64-bit
-
Vendor_url
https://www.msi.com/Motherboard/B550-GAMING-WIFI6E
-
Graphics
1x HDMI™;
Support HDMI™ 1.4, maximum resolution of 4K 30Hz;
1x DisplayPort;
Support DisplayPort 1.2, maximum resolution of 4K 60Hz
-
Audio
Realtek® ALC897;
7.1-Channel High Definition Audio
-
Memory type
4x DDR4, Maximum Memory Capacity 128GB;
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 480
-
Expansion Slots
2x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset);
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset);
*The supported specification depends on installed processor
-
Storage
2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices;
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices;
6x SATA 6G
-
Chipset
AMD B550
-
Дънна платка - чипсет
AMD B550
-
Дънна платка - поддържан тип памет
DDR4
-
Дънна платка - честота на паметта
2667 MHz
2800 MHz
2933 MHz
3000 MHz
3066 MHz
3200 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4400 MHz
4533 MHz
4600 MHz
4733 MHz
4800 MHz
4866 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
ATX
-
USB
4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front);
1x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear)
-
Form Factor
ATX 243.84mmx304.8mm
-

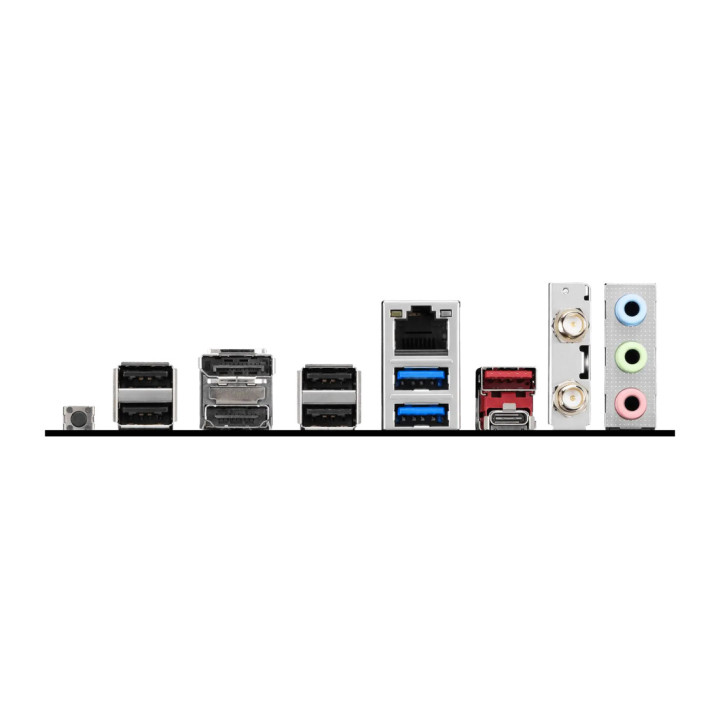

Rear panel I/O
USB 2.0;
DisplayPort 1.2;
1G LAN;
USB 10Gbps (Type-A);
Wi-Fi / Bluetooth;
Audio Connectors;
Flash BIOS Button;
HDMI™;
USB 2.0;
USB 5Gbps (Type-A);
USB 10Gbps (Type-C)
-
Connectors
1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
6x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
2x Addressable V2 RGB LED connector (JARGB_V2);
-
CPU's supported
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
-
Wireless
Wi-Fi 6E Solution;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Dual-band 1T1R mode;
Supports MU-MIMO RX;
Supports 2.4GHz/ 5GHz/ 6GHz* frequency band;
Supports 802.11 a/ b/ g/ n/ ac/ ax;
Supports Bluetooth® 5.3**;
* The usage of Wi-Fi 6
-
Socket
Socket AM4
