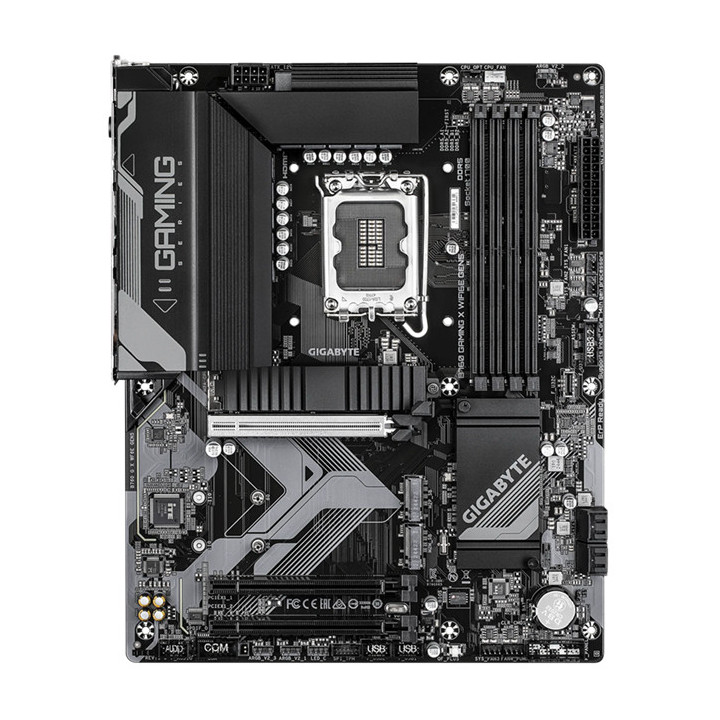

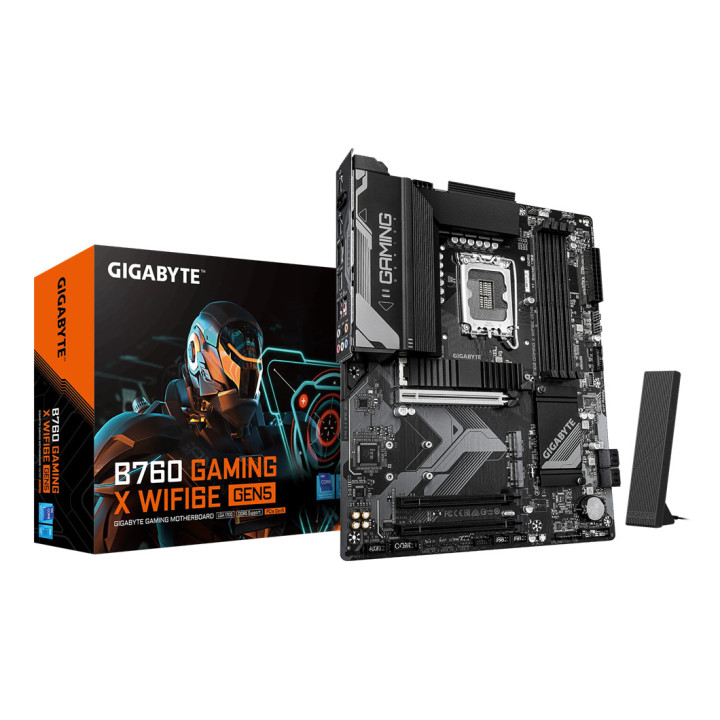

GB B760 GAMING X WF6E GEN5

Name: GB B760 GAMING X WF6E GEN5
Brand: GIGABYTE
SKU: B760 G X WF6E GEN5 1.0
Price: 161.05 EUR
Availability: InStock

GIGABYTE

161,05 €

С вкл. данък

B760 G X WF6E GEN5 1.0_MO

Споделяне

GB B760 4xDDR5 4xSATA3 RAID HDMI DP 3xM2 GLAN 3xPCIEx16 WiFi_MO

Марка
Референция

B760 G X WF6E GEN5 1.0
В наличност

5 Артикула
Състояние

Нов

Bluetooth

5.3
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Manufacturer

GIGABYTE
OS

Support for Windows 11 64-bit;Support for Windows 10 64-bit
Vendor_url

https://www.gigabyte.com/Motherboard/B760-GAMING-X-WIFI6E-GEN5
Graphics

Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Suppor
Audio

Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
Memory type

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256
Warranty

36 Months
Expansion Slots

CPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset:;- 2 x P
Storage

CPU:;- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset:;- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID
Chipset

Intel® B760 Express Chipset
Дънна платка - сокет

LGA1700
Дънна платка - чипсет

INTEL B760
Дънна платка - поддържан тип памет

DDR5
Дънна платка - честота на паметта

4000 MHz
4800 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове

USB 3.2
Дънна платка - форм фактор

ATX
USB

Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;- 3 x USB 3.2 Gen 1 ports (1
Form Factor

ATX Form Factor; 30.5cm x 24.4cm

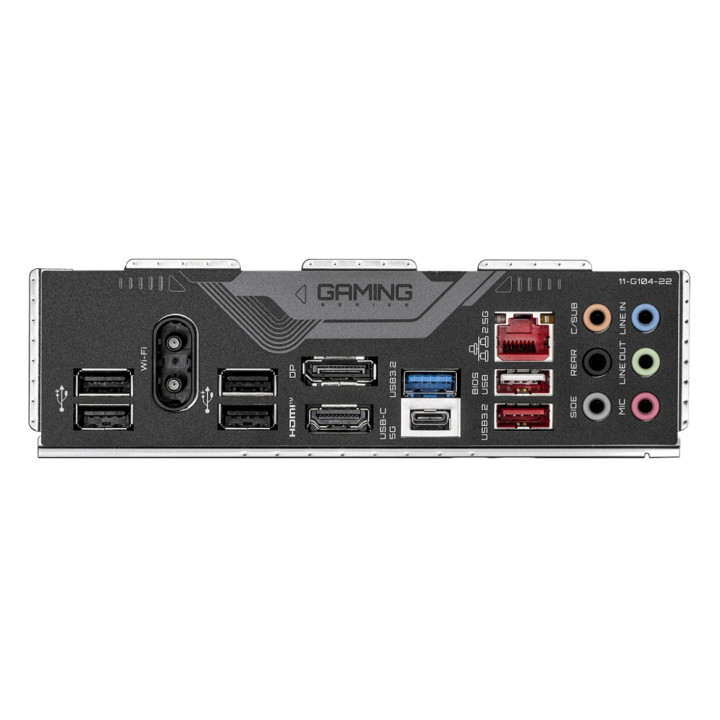

Rear panel I/O

iTE® I/O Controller Chip
BIOS

1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connectors

1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip hea
CPU's supported

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,;Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
Wireless

Intel® Wi-Fi 6E AX210;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard
