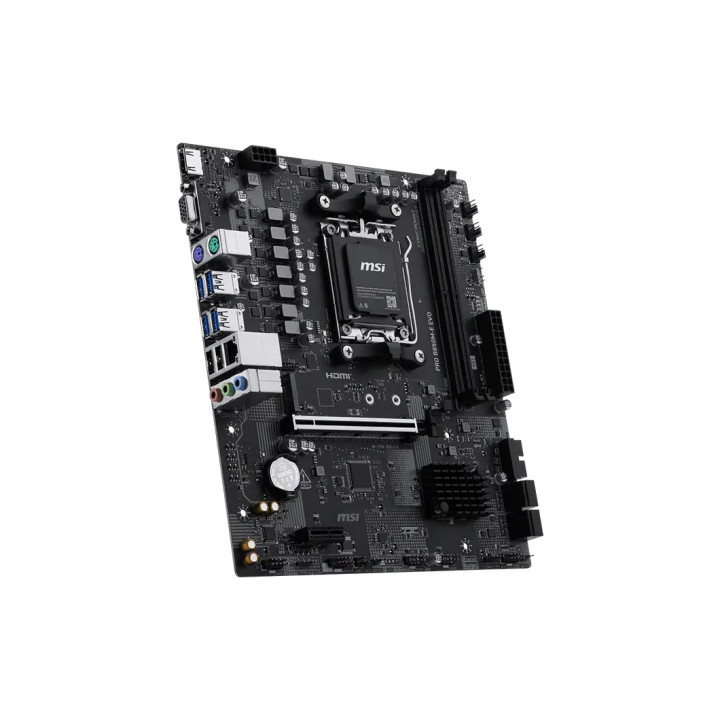

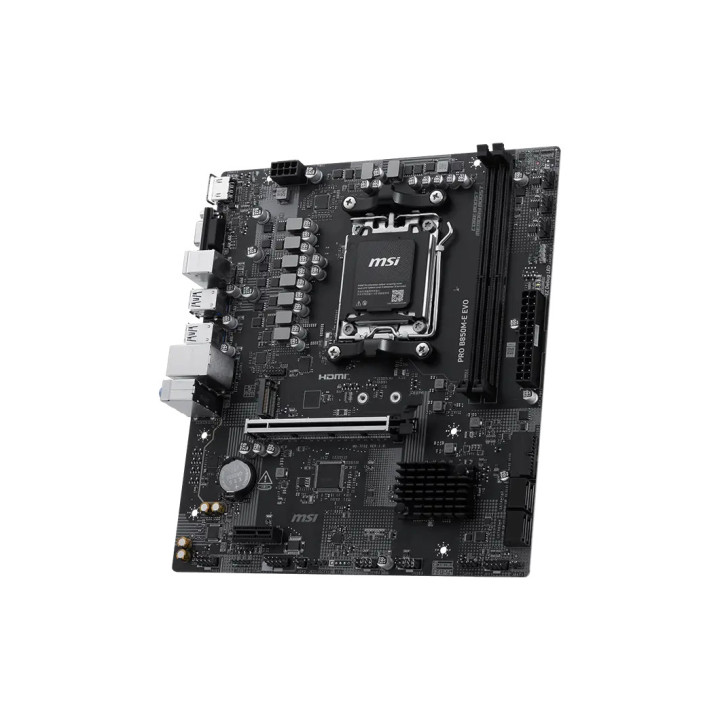

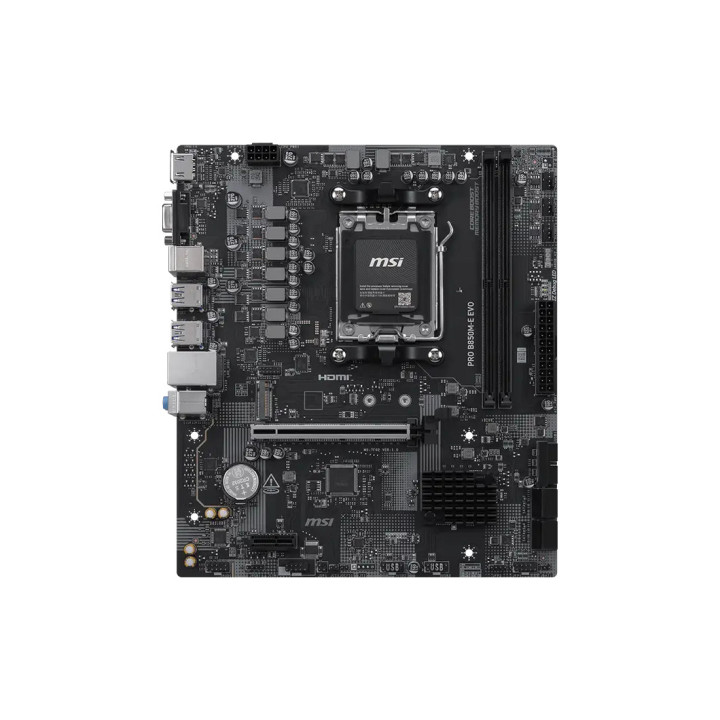

MSI PRO B850M-E EVO Изображения
_MO
-
Марка
-
Референция911-7F02-001
-
В наличност5 Артикула
-
СъстояниеНов
-
LANRealtek® 8125 2.5G LAN
-
ManufacturerMSI
-
OSSupport for Windows® 11 64-bit
-
Vendor_urlhttps://www.msi.com/Motherboard/PRO-B850M-E-EVO
-
Graphics1x HDMI™;
Support HDMITM 2.1 port with HDR, maximum resolution of 4K 60Hz*;
1x VGA;
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*;
*Available only on processors featuring integrated graphics. Graphics specifications ma -
AudioRealtek® ALC897;
7.1-Channel High Definition Audio -
Memory type2x DDR5, Maximum Memory Capacity 128GB;
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;
Ryzen™ 9000 Series Processors max. overclocking frequency:;
• 1DPC 1R Max speed up to 8200+ MT/s;
• 1DPC 2R Max speed up to 8000+ MT/s;
Supports -
Expansion Slots1x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E1 slot;
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors);
• Supports PCIe 4.0 x8 (For Ryze -
Storage1x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
4x SATA 6G;
M2_1 slot;
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors);
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) -
Other4x EZ Debug LED
-
ChipsetAMD B850
-
Дънна платка - чипсетAMD B850
-
Дънна платка - поддържан тип паметDDR5
-
Дънна платка - честота на паметта4800 MHz
5600 MHz
8000 MHz
8200 MHz
9000 MHz -
Дънна платка - интерфейсиM.2 (NVMe) конектор
SATA 3.0 -
Дънна платка - портовеHDMI
USB 2.0
USB 3.2
VGA -
Дънна платка - форм факторMicro ATX
-
USB2x USB 2.0 (Rear);
4x USB 2.0 (Front);
4x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front) -
Form FactormATX
243.84mmx215mm -

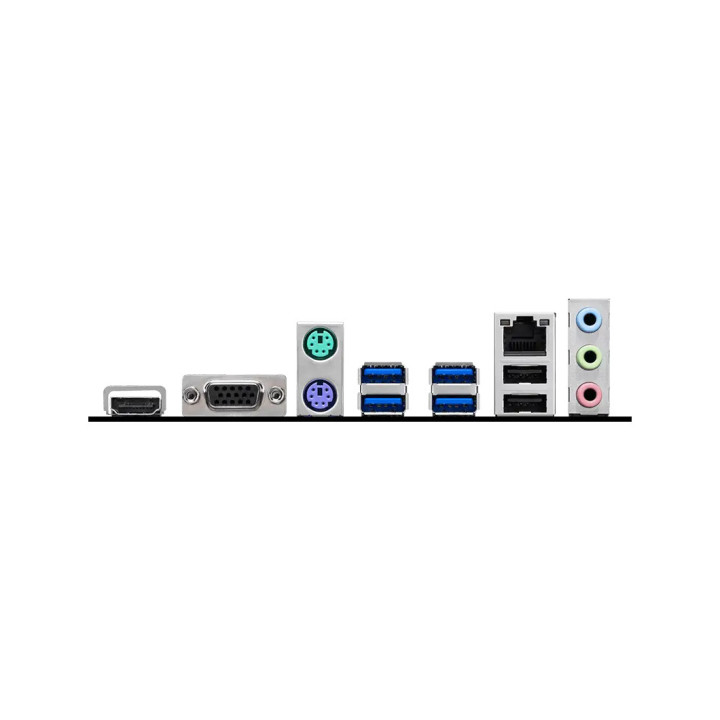

Rear panel I/OHDMI™;
VGA;
Keyboard / Mouse;
USB 5Gbps Type-A;
USB 5Gbps Type-A;
2.5G LAN;
Audio Connectors;
USB 2.0 -
Connectors1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
2x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
1x Addressable V2 RGB LED connector (JARGB_V2);
1x RGB LED connector(JRGB);
1 -
CPU's supportedSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
-
RAIDSupports RAID 0, RAID 1 , and RAID 10 for SATA storage devices
-
SocketAM5
