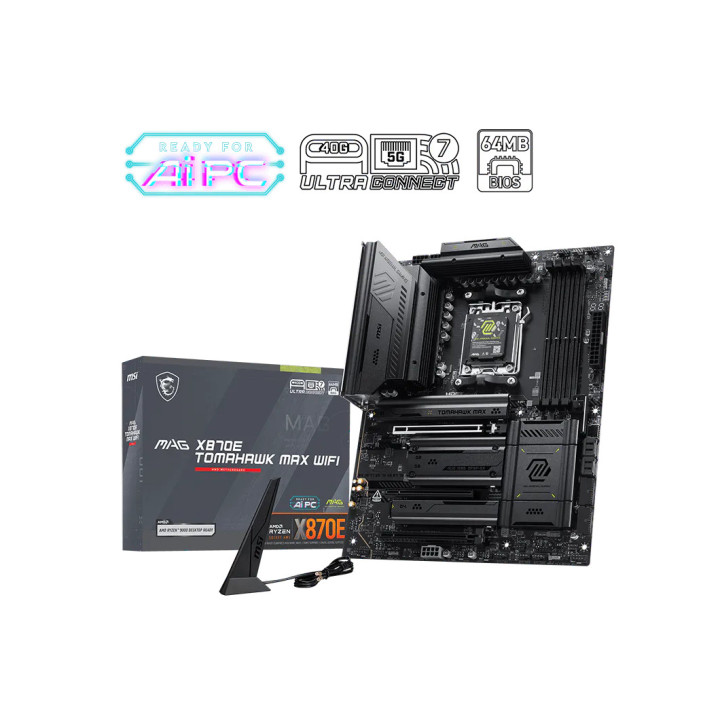

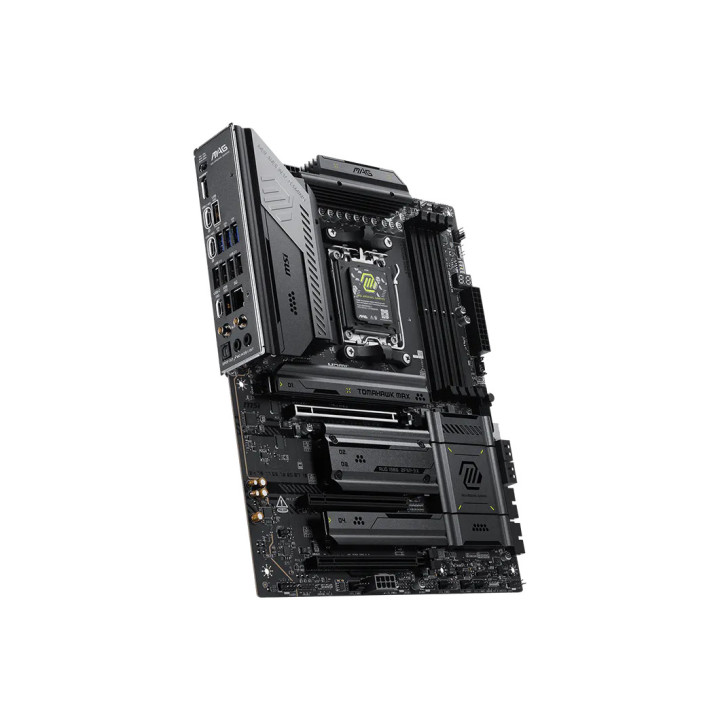

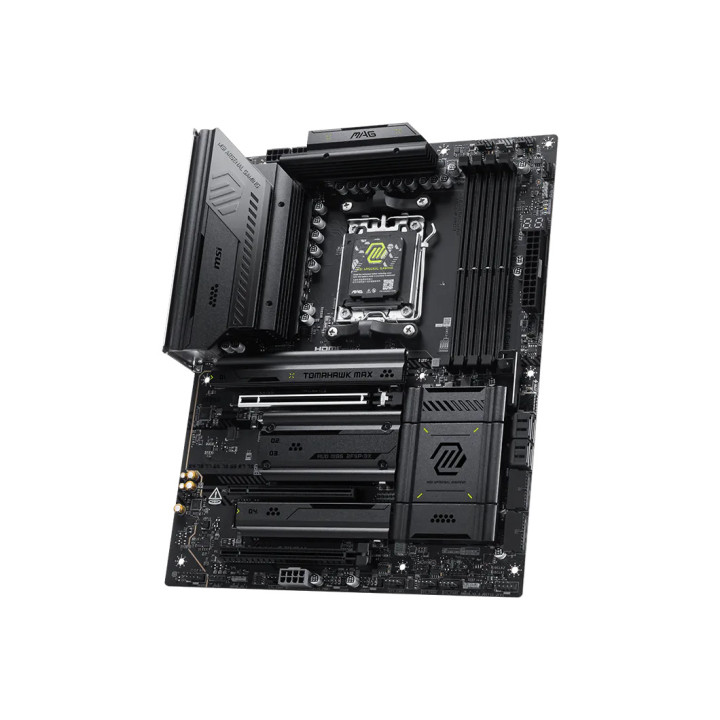

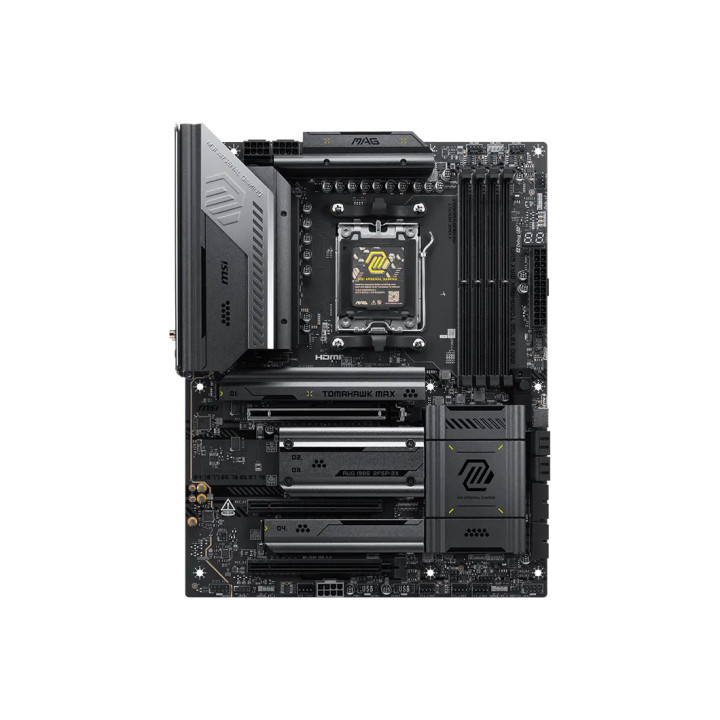

MSI MAG X870E TOMAHAWK MAX WF
MSI MAG X870E TOMAHAWK MAX WF
MSI MAG X870E TOMAHAWK MAX WF
MSI MAG X870E TOMAHAWK MAX WF
MSI MAG X870E TOMAHAWK MAX WF

MSI MAG X870E TOMAHAWK MAX WF

MSI
352,78 €
С вкл. данък
911-7E59-018_MO
Споделяне

_MO

  • Марка
  • Референция
    911-7E59-018
  • В наличност
    5 Артикула
  • Състояние
    Нов

  • Bluetooth
    Supports Bluetooth® 5.4**, MLO, 4KQAM
  • LAN
    1x Realtek® 8126 5G LAN
  • Manufacturer
    MSI
  • OS
    Support for Windows® 11 64-bit
  • Vendor_url
    https://www.msi.com/Motherboard/MAG-X870E-TOMAHAWK-MAX-WIFI
  • Dimensions
    ATX 243.84mmx304.8mm
  • Graphics
    1x HDMI™;
    Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*;
    2x Type-C DisplayPort;
    USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*;
    *Available only on processors featuring integrated graphics;
    **Graphi
  • Audio
    Realtek® ALC4080 Codec;
    7.1-Channel USB High Performance Audio;
    Supports up to 32-bit/384kHz playback on front panel;
    Supports S/PDIF output
  • Memory type
    4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
    Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;
    Ryzen™ 9000 Series Processors max. overclocking frequency:;
    • 1DPC 1R Max speed up to 8400+ MT/s;
    • 1DPC 2R Max speed up to 6400+ MT/s;
    • 2
  • Expansion Slots
    3x PCI-E x16 slot;
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);

    PCI_E1 slot;
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processor
  • Storage
    4x M.2;
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices;
    M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
  • Other
    4x EZ Debug LED;
    1x EZ Digit Debug LED;
    1x EZ Memory Detection LED
  • Chipset
    AMD X870E
  • Дънна платка - чипсет
    AMD X870E
  • Дънна платка - поддържан тип памет
    DDR5
  • Дънна платка - честота на паметта
    4800 MHz
    5600 MHz
    6400 MHz
    8400 MHz
    9000 MHz
  • Дънна платка - интерфейси
    M.2 (NVMe) конектор
    SATA 3.0
  • Дънна платка - портове
    HDMI
    USB 2.0
    USB 3.2
  • USB
    4x USB 2.0 (Rear);
    4x USB 2.0 (Front);
    3x USB 5Gbps Type A (Rear);
    4x USB 5Gbps Type A (Front);
    2x USB 10Gbps Type A (Rear);
    1x USB 10Gbps Type C (Rear);
    1x USB 20Gbps Type C (Front);
    2x USB 40Gbps Type C (Rear)

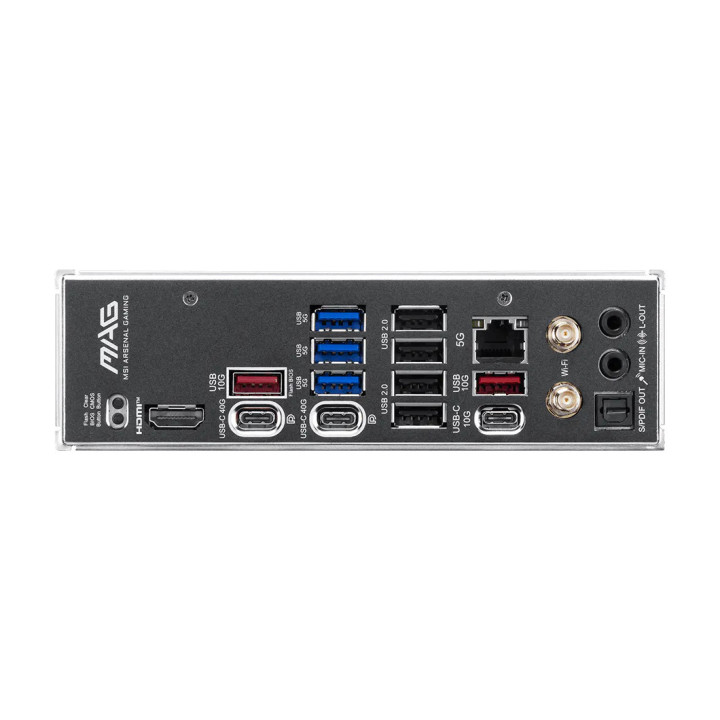

  • Rear panel I/O
    Clear CMOS Button;
    USB 10Gbps Type-A;
    USB 5Gbps Type-A;
    USB 2.0;
    5G LAN;
    Wi-Fi / Bluetooth;
    Audio connectors;
    Flash BIOS Button;
    HDMI™;
    USB 40Gbps Type-C;
    USB 10Gbps Type-C;
    USB 10Gbps Type-A;
    Optical S/PDIF-OUT
  • Connectors
    1x Power Connector(ATX_PWR);
    2x Power Connector(CPU_PWR);
    1x Power Connector(PCIE_PWR 8pin);
    1x CPU Fan;
    1x Combo Fan (Pump_Sys Fan);
    6x System Fan;
    1x EZ Conn-header (JAF_2);
    2x Front Panel (JFP);
    1x Chassis Intrusion (JCI);
    1x Front Audio (JAUD);
    3x Add
  • CPU's supported
    Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  • RAID
    •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices;
    •Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices;

    *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.;
    *RAID 10 for M.2 NVMe storage devices is
  • Wireless
    Wi-Fi 7;
    The Wireless module is pre-installed in the M.2 (Key-E) slot;
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps;
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be;

    Supports Bluetooth® 5.4**, MLO, 4KQAM;

    * 6GHz band support may depend on e
  • Socket
    Socket AM5
