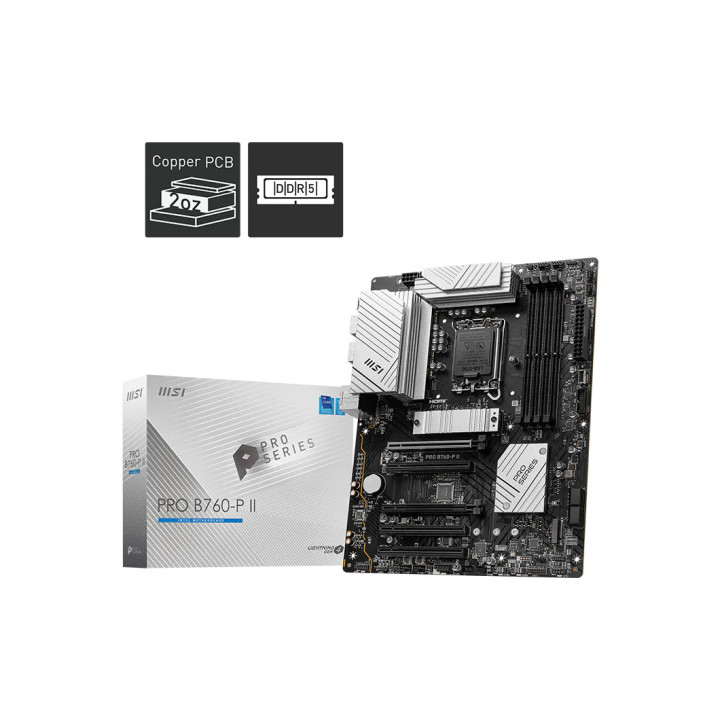

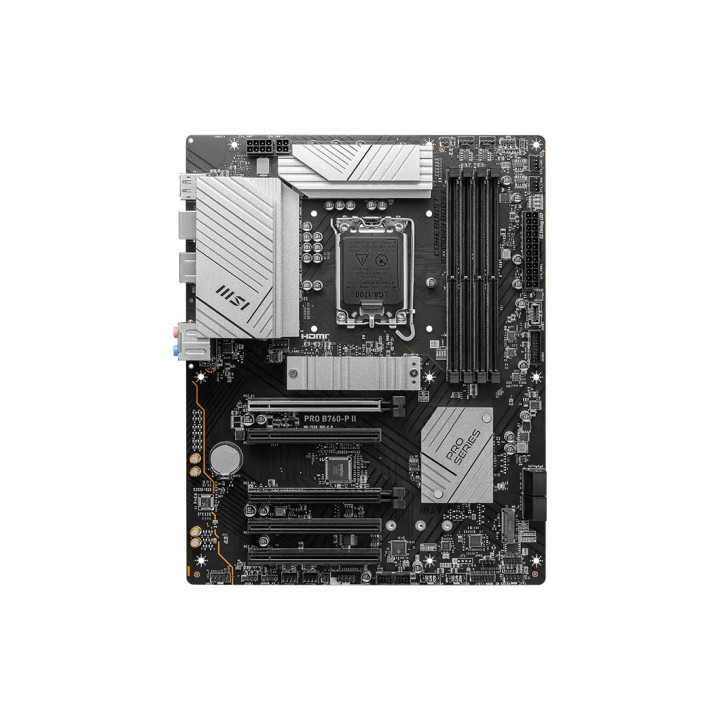

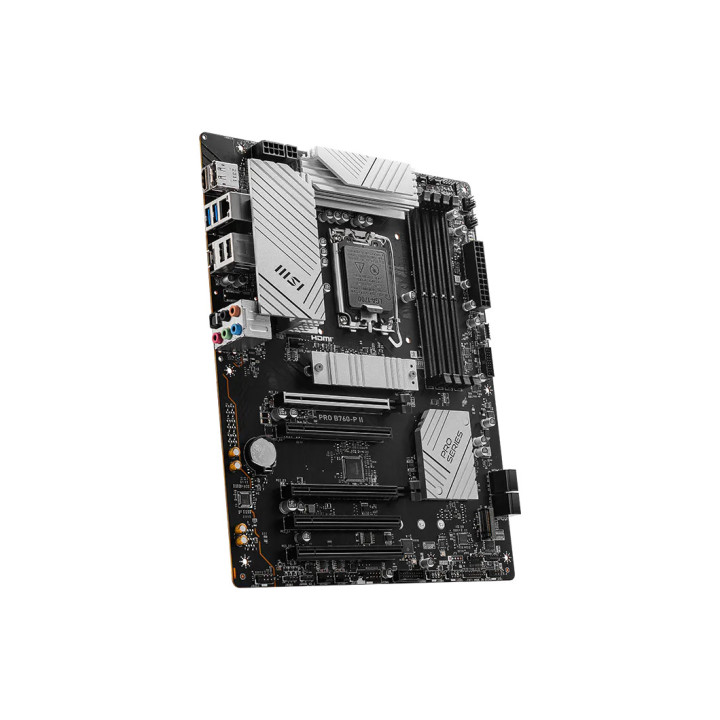

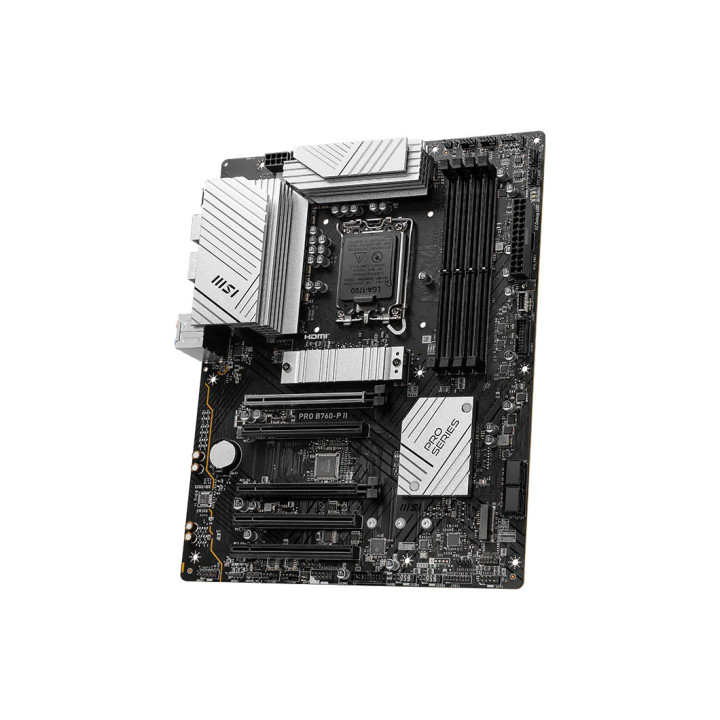

MSI PRO B760-P II

Name: MSI PRO B760-P II
Brand: MSI
SKU: 911-7E29-009
Price: 127.1 EUR
Availability: InStock

MSI

127,10 €

С вкл. данък

911-7E29-009_MO

Споделяне

MSI B760 4xDDR5 4xSATA3 RAID HDMI DP 2xM2 1XGLAN 5xPCIEx16_MO

Марка
Референция

911-7E29-009
В наличност

5 Артикула
Състояние

Нов

LAN

Realtek® RTL8125BG 2.5G LAN
Model

PRO B760-P II
Manufacturer

MSI
OS

Support for Windows® 11 64-bit, Windows® 10 64-bit
Vendor_url

https://www.msi.com/Motherboard/PRO-B760-P-II/Overview
Graphics

1x HDMI™;
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*;
1x DisplayPort;
Support DP 1.4, maximum resolution of 4K 60Hz*;
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio

Realtek® ALC897 Codec;
7.1-Channel High Definition Audio;
Supports S/PDIF output
Memory type

4x DDR5, Maximum Memory Capacity 256GB;
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 7000
Expansion Slots

5x PCI-E x16 slot;
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E5 Gen PCIe 3.0 sup
Storage

2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices;
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices;
4x SATA 6G
Other

Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics
Chipset

INTEL B760
Дънна платка - чипсет

INTEL B760
Дънна платка - поддържан тип памет

DDR5
Дънна платка - честота на паметта

4800 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове

Display Port
HDMI
USB 2.0
USB 3.2
Дънна платка - форм фактор

ATX
USB

2x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
4x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front);
1x USB 10Gbps Type C (Rear)
Form Factor

ATX, 243.84mmx304.8mm

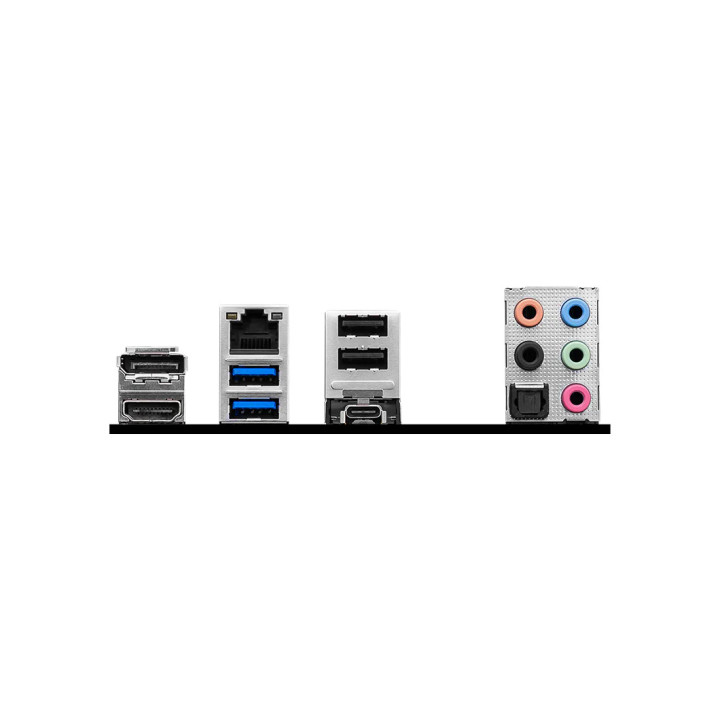

Rear panel I/O

DisplayPort;
2.5G LAN;
USB 2.0;
Audio Connectors;
HDMI™;
USB 5Gbps (Type-A);
USB 10Gbps (Type-C);
S/PDIF-OUT
BIOS

1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language
Connectors

1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x CPU Fan;
1x Pump Fan;
5x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
2x Addressable V2 RGB LED connector (JARGB_V2);
2x RGB LED conne
CPU's supported

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Socket

LGA 1700
