LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Cust
-
Manufacturer
ASROCK
-
OS
Microsoft Windows® 10 64-bit / 11 64-bit
-
Vendor_url
https://www.asrock.com/mb/AMD/A620AM%20Pro%20RS/index.asp
-
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120
-
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec);Nahimic Audio
-
Memory type
Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC);Max. capacity of system memory: 256GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
-
Warranty
36 Months
-
Expansion Slots
CPU:;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode;- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
-
Storage
CPU:;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset:;- 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 P
-
Chipset
AMD A620A
-
Дънна платка - сокет
AM5
-
Дънна платка - чипсет
AMD A620A
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - брой слотове за памет
4 бр
-
Дънна платка - честота на паметта
7200 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
Micro ATX
-
USB
CPU:;- 1 x USB 3.2 Gen1 Type-C (Rear);- 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) Chipset:;- 1 x USB 3.2 Gen1 Type-C (Front);- 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front);- 8 x USB 2.0 (4 Rear, 4 Front)
-
Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
-

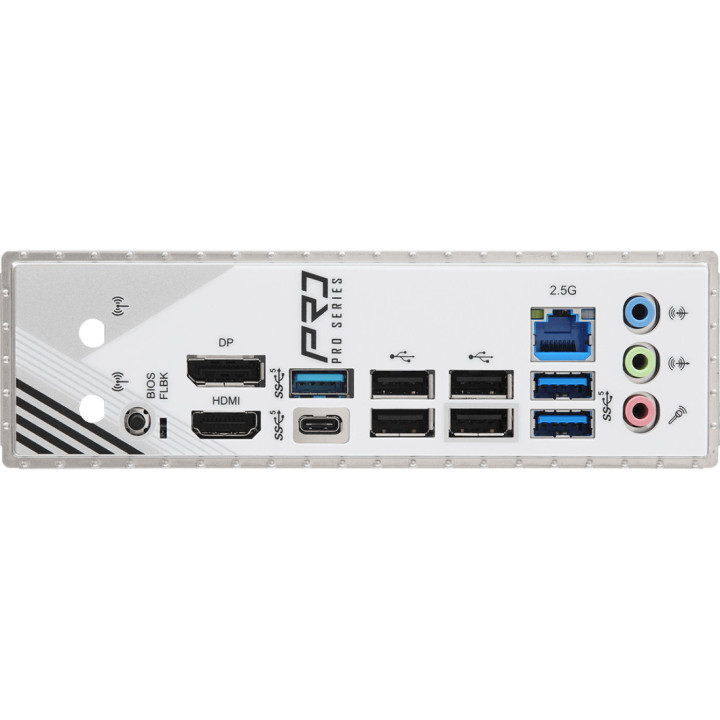

Rear panel I/O
2 x Antenna Mounting Points;1 x HDMI Port;1 x DisplayPort 1.4;3 x USB 3.2 Gen1 Type-A Ports;1 x USB 3.2 Gen1 Type-C Port;4 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;HD Audio Jacks: Line in / Front Speaker / Microphone
-
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
-
Connectors
1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;1 x CPU Fan Connector (4-pin);1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control);3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Sp
-
CPU's supported
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
