LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Cust
-
Manufacturer
ASROCK
-
OS
Microsoft Windows® 10 64-bit / 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Dragon 2.5G LAN Software;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash
-
Vendor_url
https://www.asrock.com/mb/AMD/X870%20Pro%20RS/index.asp
-
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
-
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);- Impedance Sensing on Rear Out port;- Individual PCB Layers for R/L Audio Channel;- Nahimic Audio
-
Memory type
Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);Max. capacity of system memory: 256GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
-
Warranty
36 Months
-
Expansion Slots
CPU;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode;- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- Supports AMD CrossFire™;- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
-
Storage
CPU;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280
-
Chipset
AMD X870
-
Дънна платка - сокет
AM5
-
Дънна платка - чипсет
AMD X870
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - брой слотове за памет
4 бр
-
Дънна платка - честота на паметта
8000 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
-
Дънна платка - портове
USB 2.0
USB 3.2
USB 4.0
-
Дънна платка - форм фактор
ATX
-
Form Factor
ATX 30.5 cm x 24.4 cm, 8 Layer PCB
-

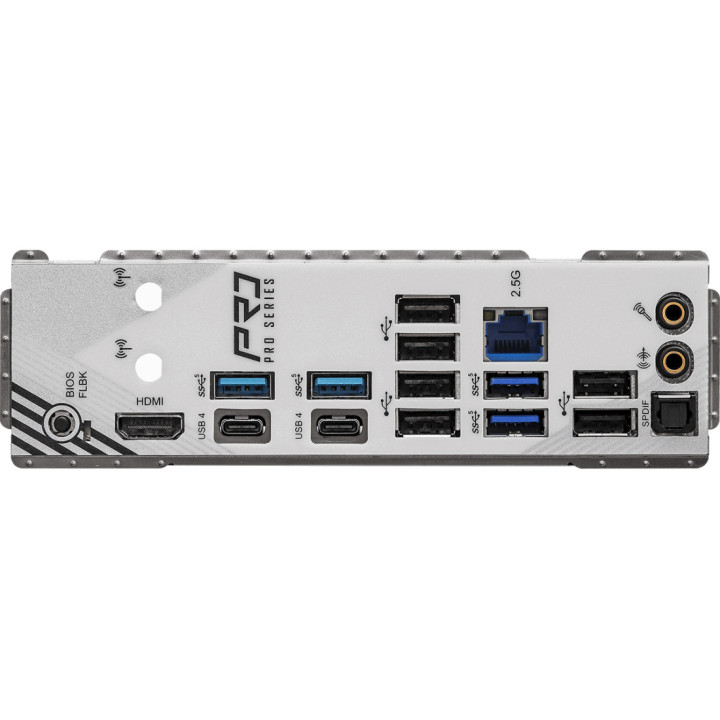

Rear panel I/O
CPU;- 2 x USB4 Type-C (Rear);- 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2));Chipset;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front);- 9 x USB 2.0 (6 Rear, 3 Front);- 2 x Antenna Mounting Points
-
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
-
Connectors
- 1 x Thermistor Cable Header;- 1 x Power LED and Speaker Header;- 1 x RGB LED Header;- 3 x Addressable LED Headers;- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);- 1 x AIO Pump Fa
-
CPU's supported
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
