Bluetooth
5.4
-
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Cust
-
Manufacturer
ASROCK
-
OS
Microsoft Windows® 10 64-bit / 11 64-bit
-
Vendor_url
https://www.asrock.com/mb/AMD/B850%20LiveMixer%20WiFi/index.asp
-
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120
-
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);Impedance Sensing on Rear Out port;Individual PCB Layers for R/L Audio Channel;Nahimic Audio
-
Memory type
Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);Max. capacity of system memory: 256GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
-
Warranty
36 Months
-
Expansion Slots
CPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode;- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
-
Storage
CPU:;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset:;- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/ 2242/ 2260/
-
Chipset
AMD B850
-
Дънна платка - сокет
AM5
-
Дънна платка - чипсет
AMD B850
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - брой слотове за памет
4 бр
-
Дънна платка - честота на паметта
8000 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
ATX
-
USB
CPU:;- 1 x USB 3.2 Gen2 Type-C (Rear);- 1 x USB 3.2 Gen2 Type-A (Rear);- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1));Chipset:;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 7 x USB 3.2 Gen1 Type-A (3 Rear (USB32_234), 4 Front);- 12 x USB 2.0 (8 Rear, 4 Front)
-
Form Factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;8 Layer PCB
-

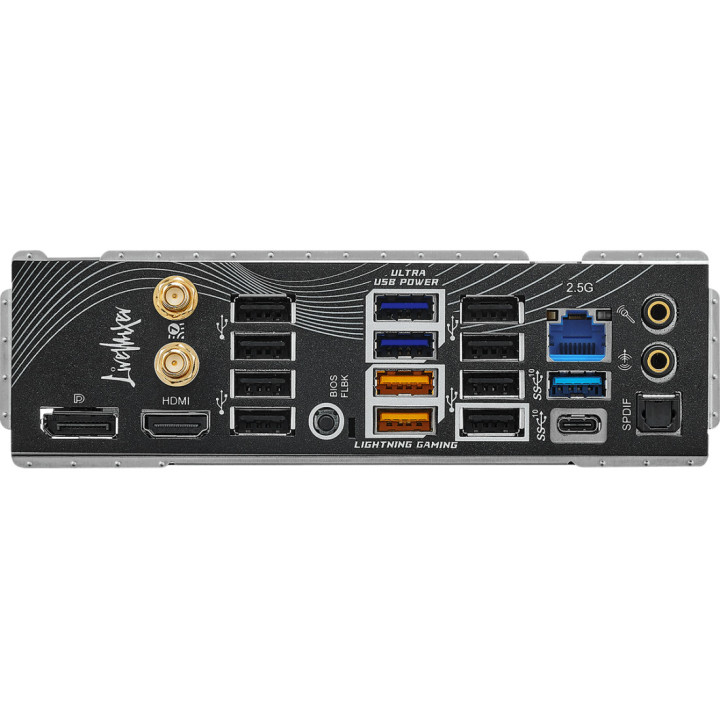

Rear panel I/O
2 x Antenna Ports;1 x HDMI Port;1 x DisplayPort 1.4;1 x Optical SPDIF Out Port;1 x USB 3.2 Gen2 Type-C Port (10 Gb/s);1 x USB 3.2 Gen2 Type-A Port (10 Gb/s);4 x USB 3.2 Gen1 Type-A Ports;8 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;1 x L
-
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
-
Connectors
1 x SPI TPM Header;1 x Thermistor Cable Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pu
-
CPU's supported
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
-
Wireless
802.11be 2x2 Wi-Fi 7 Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe/be;Supports 2.4GHz/5GHz/6GHz frequency band;Supports 160MHz channel bandwidth with 6GHz frequency band;1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetoot
