Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM;
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
-
LAN
Realtek® 8126VB 5G LAN
-
Manufacturer
MSI
-
OS
Support for Windows® 11 64-bit
-
Vendor_url
https://www.msi.com/Motherboard/PRO-B850-S-EVO-WIFI
-
Dimensions
ATX 243.84mmx304.8mm
-
Graphics
1x HDMI™;
Support HDMITM 2.1 with TMDS port, maximum resolution of 4K 60Hz*;
1x DisplayPort;
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*;
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending o
-
Audio
Realtek® ALC897;
7.1-Channel High Definition Audio
-
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;
Ryzen™ 9000 Series Processors max. overclocking:;
• 1DPC 1R Max speed up to 8200+ MT/s;
• 1DPC 2R Max speed up to 6400+ MT/s;
• 2DPC 1R Max
-
Expansion Slots
2x PCI-E x16 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset);
PCI_E1 slot;
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors);
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 840
-
Storage
3x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices;
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices;
-
Chipset
AMD B850
-
Дънна платка - чипсет
AMD B850
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - честота на паметта
4800 MHz
5600 MHz
6400 MHz
8200 MHz
9000 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
USB
4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
2x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear);
1x USB 10Gbps Type C (Front)
-

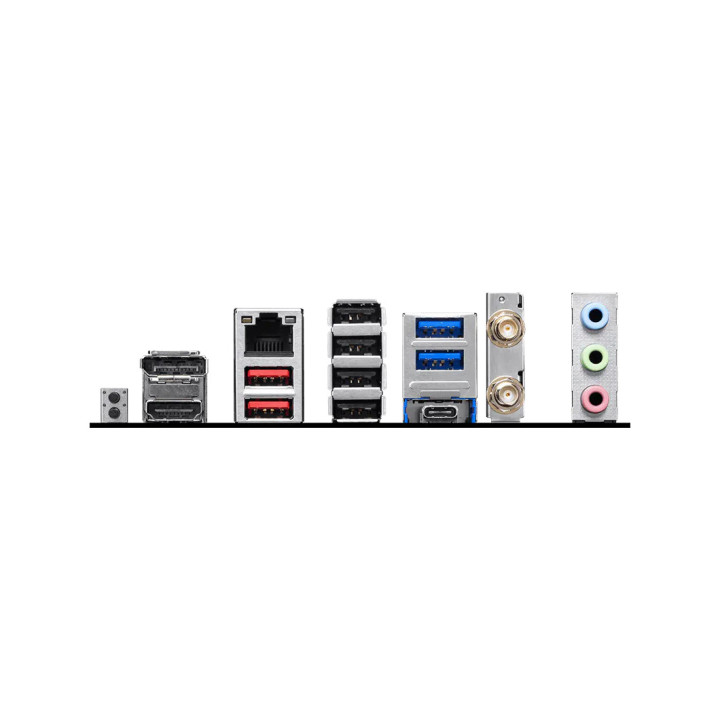

Rear panel I/O
Clear CMOS Button;
DisplayPort;
5G LAN;
USB 2.0;
USB 5Gbps Type-A;
Wi-Fi / Bluetooth;
Audio Connectors;
Flash BIOS Button;
HDMI™;
USB 10Gbps Type-A;
USB 10Gbps Type-C
-
Connectors
1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x Power Connector(PCIE_PWR 8pin);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
4x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Com Port (JCOM);
1x Tuning Con
-
CPU's supported
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
-
RAID
Supports RAID 0, RAID 1 , RAID 5* and RAID 10 for SATA storage devices;
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices;
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
-
Wireless
Wi-Fi 7;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be;
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 w
-
Socket
Socket AM5
