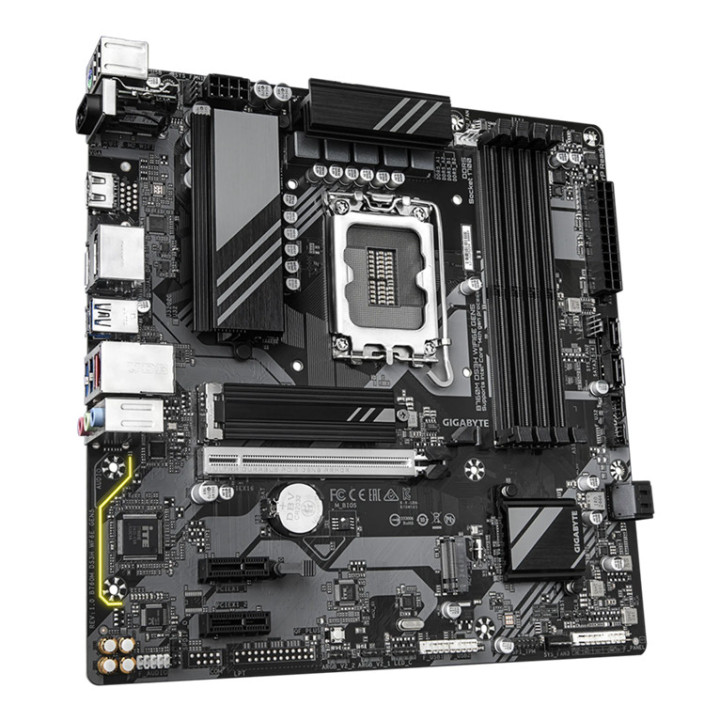

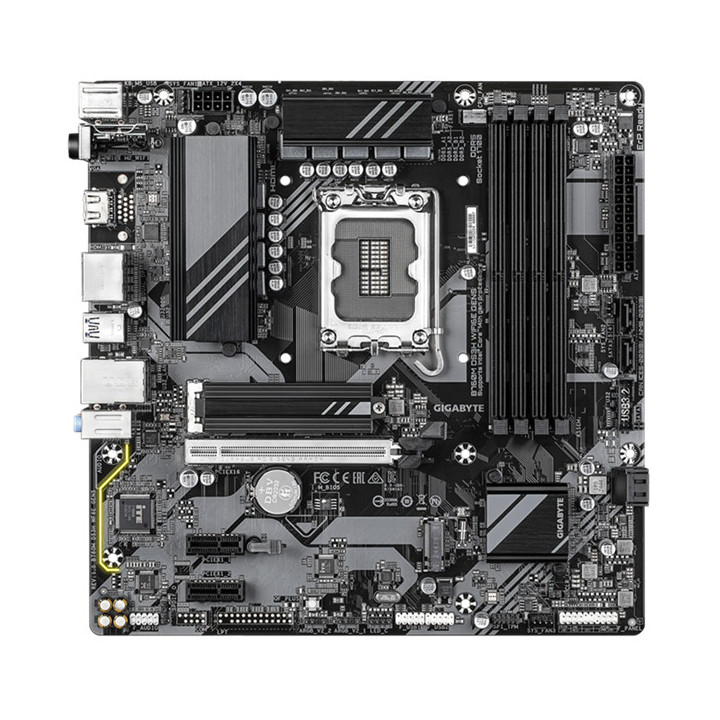

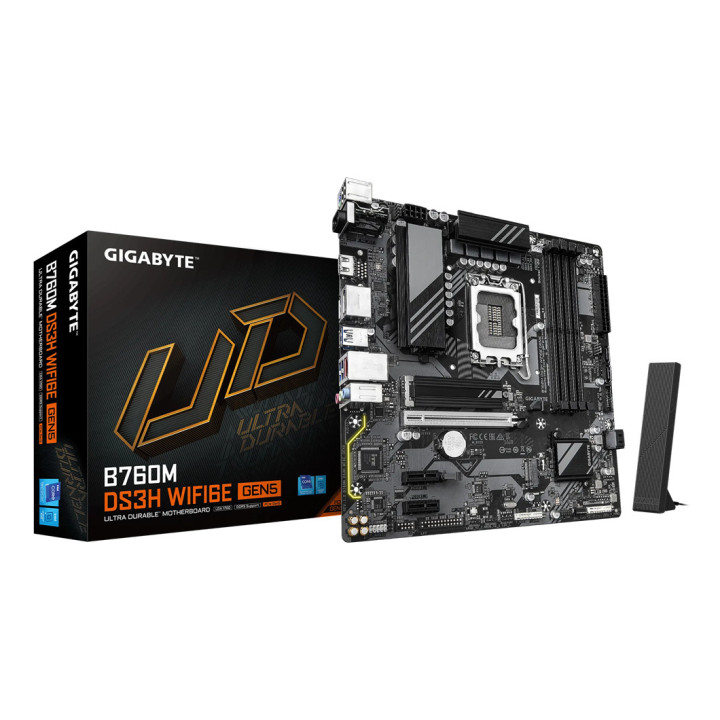

GB B760M DS3H WF6E GEN5

Name: GB B760M DS3H WF6E GEN5
Brand: GIGABYTE
SKU: B760M DS3H WF6E GEN5 1.0
Price: 139.06 EUR
Availability: InStock

GIGABYTE

139,06 €

С вкл. данък

B760M DS3H WF6E GEN5 1.0_MO

Споделяне

GB B760 4xDDR5 4xSATA3 RAID HDMI 2DP 2xM2 GLAN 1xPCIEx16 2xPCIEx1 WiFi_MO

Марка
Референция

B760M DS3H WF6E GEN5 1.0
В наличност

5 Артикула
Състояние

Нов

Bluetooth

5.3
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Manufacturer

GIGABYTE
OS

Support for Windows 11 64-bit;Support for Windows 10 64-bit
Vendor_url

https://www.gigabyte.com/Motherboard/B760M-DS3H-WIFI6E-GEN5
Graphics

Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for native HDMI 2.1 TMDS compatible ports.;- 1 x DisplayPort, supporting
Audio

Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;Support for S/PDIF Out
Memory type

14th and 13th Generation Intel® Core™ i9/i7 Processors:;Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/ 5200/ 4800/ 4400 MT/s memory modules;13th Generatio
Warranty

36 Months
Expansion Slots

CPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage

CPU:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 suppor
Chipset

Intel® B760 Express Chipset
Дънна платка - сокет

LGA1700
Дънна платка - чипсет

INTEL B760
Дънна платка - поддържан тип памет

DDR5
Дънна платка - честота на паметта

4400 MHz
4800 MHz
5200 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове

USB 2.0
USB 3.2
Дънна платка - форм фактор

Micro ATX
USB

Chipset:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub:;- 4 x USB
Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

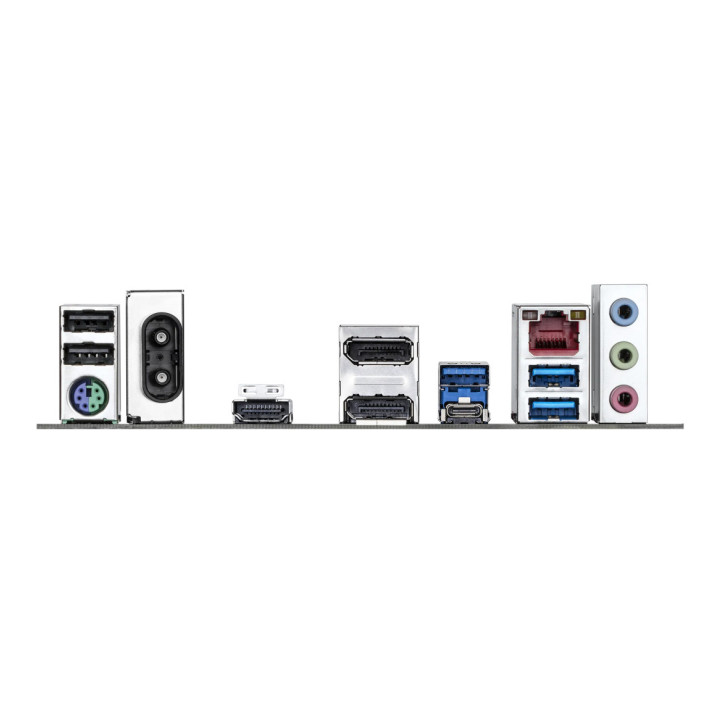

Rear panel I/O

iTE® I/O Controller Chip
BIOS

1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connectors

1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;3 x system fan headers;2 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel heade
CPU's supported

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
Wireless

Intel® Wi-Fi 6E AX210;- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard
