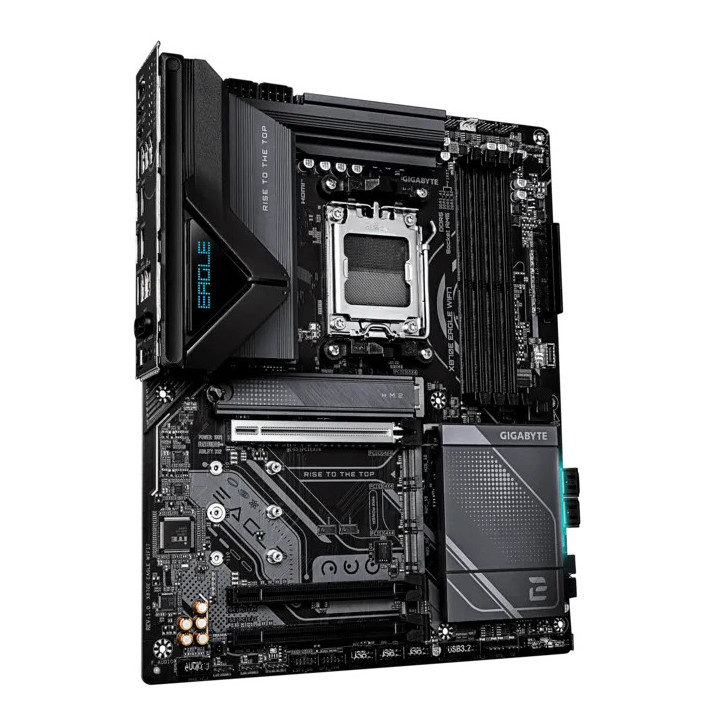

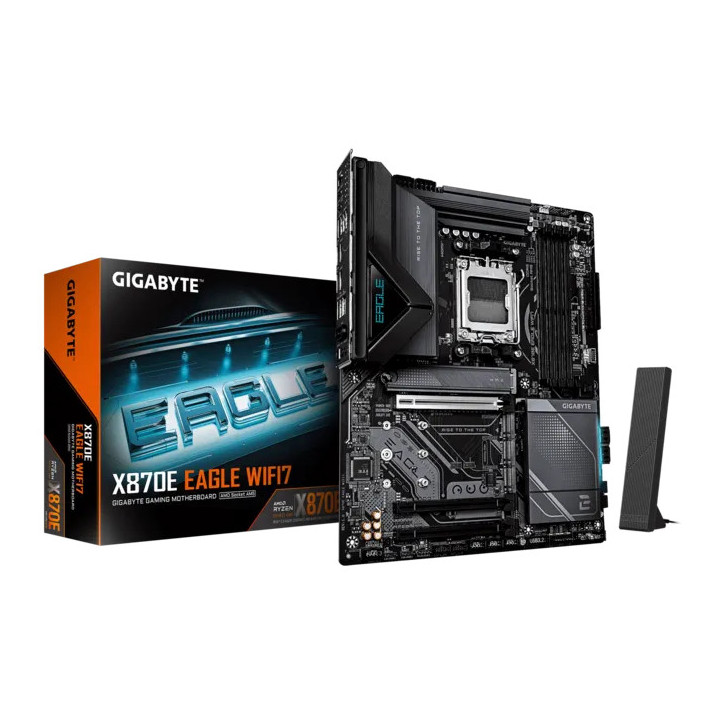

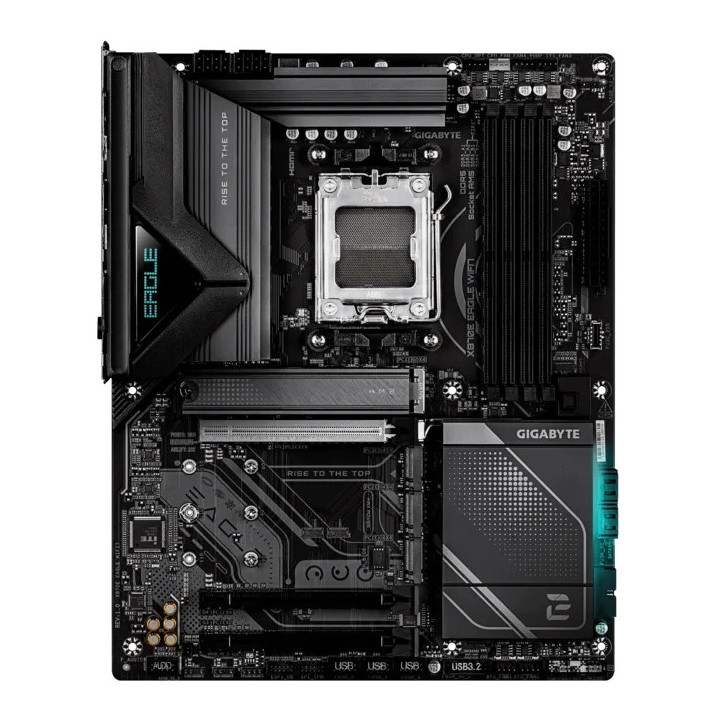

GB X870E EAGLE WIFI7 / AM5

Name: GB X870E EAGLE WIFI7 / AM5
Brand: GIGABYTE
SKU: X870E EAGLE WIFI7
Price: 277.11 EUR
Availability: InStock

GIGABYTE

277,11 €

С вкл. данък

X870E EAGLE WIFI7_MO

Споделяне

_MO

Марка
Референция

X870E EAGLE WIFI7
В наличност

5 Артикула
Състояние

Нов

Bluetooth

5.4
LAN

Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Manufacturer

GIGABYTE
OS

Support for Windows 11 64-bit
Vendor_url

https://www.gigabyte.com/Motherboard/X870E-EAGLE-WIFI7
Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:;
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;
* Support for DisplayPort 1.4 version and
Audio

Realtek® ALC1220 CODEC;
* The back panel line out jack supports DSD audio.;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software
Memory type

Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB si
Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support P
Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:;
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SS
Chipset

AMD X870E
Дънна платка - сокет

AM5
Дънна платка - чипсет

AMD X870E
Дънна платка - поддържан тип памет

DDR5
Дънна платка - честота на паметта

4400 MHz
4800 MHz
5200 MHz
5600 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6666 MHz
6800 MHz
7000 MHz
7200 MHz
7600 MHz
7800 MHz
8000 MHz
8200 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове

USB 3.2
USB 4.0
Дънна платка - форм фактор

ATX
USB

CPU+ASMedia USB4® controller:;
- 2 x USB4® USB Type-C® ports on the back panel;
CPU:;
- 2 x USB 3.2 Gen 1 ports on the back panel;
Chipset:;
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;
- 2 x USB 3.2 Gen
Form Factor

ATX Form Factor; 30.5cm x 24.4cm

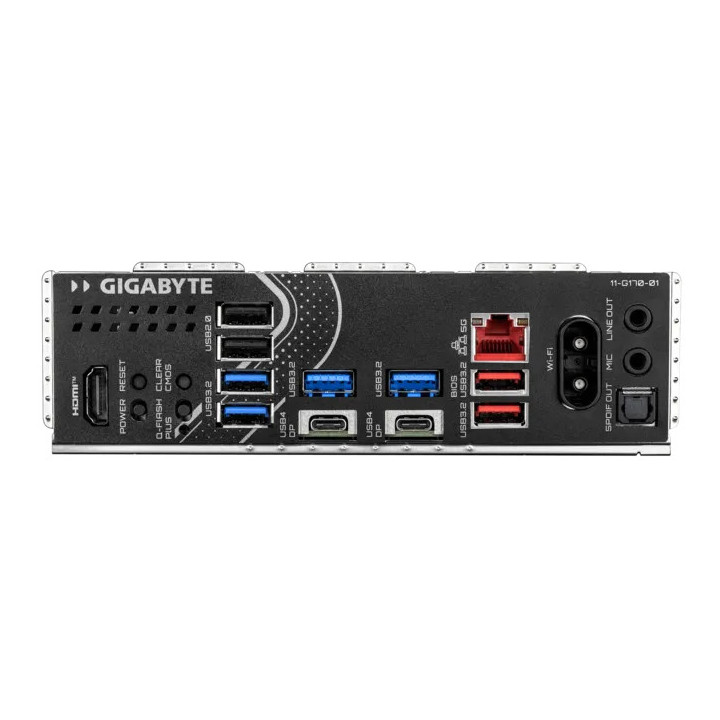

Rear panel I/O

iTE® I/O Controller Chip
BIOS

1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connectors

Internal I/O Connectors;
1 x 24-pin ATX main power connector;
2 x 8-pin ATX 12V power connectors;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
3 x system fan headers;
1 x system fan/water cooling pump header;
3 x addressable RGB Gen2 LED str
CPU's supported

AMD Socket AM5, support for:;
AMD Ryzen™ 9000 Series Processors/;
AMD Ryzen™ 8000 Series Processors/;
AMD Ryzen™ 7000 Series Processors
RAID

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Wireless

Realtek® Wi-Fi 7 RTL8922AE;
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;
- BLUETOOTH 5.4;
- Support for 11be 160MHz wireless standard;
(Actual data rate may vary depending on environment and equipment.);
* Wi-Fi 7 featur
