GB B760M DS3H GEN5 / LGA1700
GB B760M DS3H GEN5 / LGA1700
GB B760M DS3H GEN5 / LGA1700
GB B760M DS3H GEN5 / LGA1700

GB B760M DS3H GEN5 / LGA1700

GIGABYTE
118,61 €
С вкл. данък
B760M DS3H GEN5 1.0_MO
Споделяне

GB B760 4xDDR5 4xSATA3 RAID HDMI 2DP VGA 2xM2 GLAN 1xPCIEx16 2xPCIEx1 _MO

  • Марка
  • Референция
    B760M DS3H GEN5 1.0
  • В наличност
    5 Артикула
  • Състояние
    Нов

  • LAN
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Manufacturer
    GIGABYTE
  • OS
    Support for Windows 11 64-bit;Support for Windows 10 64-bit
  • Vendor_url
    https://www.gigabyte.com/Motherboard/B760M-DS3H-GEN5
  • Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;** Support for
  • Audio
    Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out
  • Memory type
    14th and 13th Generation Intel® Core™ i9/i7 Processors:;Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules;13th Generation In
  • Warranty
    36 Months
  • Expansion Slots
    CPU:;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16;* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;Chipset:;- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
  • Storage
    CPU:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU);Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 suppor
  • Chipset
    Intel® B760 Express Chipset
  • Дънна платка - сокет
    LGA1700
  • Дънна платка - чипсет
    INTEL B760
  • Дънна платка - поддържан тип памет
    DDR5
  • Дънна платка - честота на паметта
    4400 MHz
    4800 MHz
    5200 MHz
    5600 MHz
    5800 MHz
    6000 MHz
    6200 MHz
    6400 MHz
    6600 MHz
    6800 MHz
    7000 MHz
    7200 MHz
    7400 MHz
    7600 MHz
  • Дънна платка - интерфейси
    M.2 (NVMe) конектор
    SATA 3.0
  • Дънна платка - портове
    USB 2.0
    USB 3.2
  • Дънна платка - форм фактор
    Micro ATX
  • USB
    Chipset:;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports on the back panel;Chipset+USB 2.0 Hub:;- 4 x USB
  • Form Factor
    Micro ATX Form Factor; 24.4cm x 24.4cm

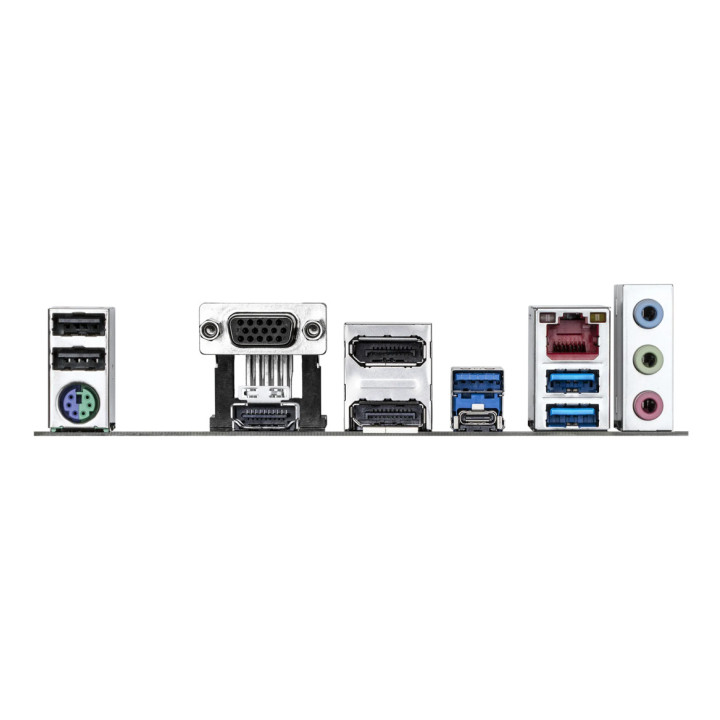

  • Rear panel I/O
    iTE® I/O Controller Chip
  • BIOS
    1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Connectors
    1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;3 x system fan headers;2 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel heade
  • CPU's supported
    LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
