GB Z890 EAGLE

Name: GB Z890 EAGLE
Brand: GIGABYTE
SKU: Z890 EAGLE
Price: 229.56 EUR
Availability: InStock

GIGABYTE

229,56 €

С вкл. данък

Z890 EAGLE_MO

Споделяне

_MO

Марка
Референция

Z890 EAGLE
В наличност

5 Артикула
Състояние

Нов

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Manufacturer

GIGABYTE
OS

Support for Windows 11 64-bit
Vendor_url

https://www.gigabyte.com/Motherboard/Z890-EAGLE
Graphics

Integrated Graphics Processor-Intel® HD Graphics support:;
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz;
* Support for DisplayPort 2.1 version;
- 1 x DisplayPort, supporting a max
Audio

Realtek® Audio CODEC;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Memory type

Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Expansion Slots

CPU:;
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset:;
- 2
Storage

CPU:;
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280;
PCIe 5.0 x4/x2 SSD support) (M2A_CPU);
- 1 x M.2 connector (Socket 3, M key, type 22110/2280;
PCIe 4.0 x4/x2 SSD support) (M2B_CPU);
Chipset:;
- 1 x M.2 connector (Socket 3, M key, ty
Chipset

Intel® Z890 Express Chipset
Дънна платка - сокет

LGA1851
Дънна платка - чипсет

INTEL Z890
Дънна платка - поддържан тип памет

DDR5
Дънна платка - честота на паметта

5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
7900 MHz
7950 MHz
8000 MHz
8200 MHz
8266 MHz
8400 MHz
8600 MHz
8800 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове

USB 3.2
USB 4.0
Дънна платка - форм фактор

ATX
USB

CPU:;
- 1 x USB4® USB Type-C® port on the back panel;
Chipset:;
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;
- 5 x USB 3.2 Gen 1 ports (3 ports on t
Form Factor

ATX Form Factor; 30.5cm x 24.4cm

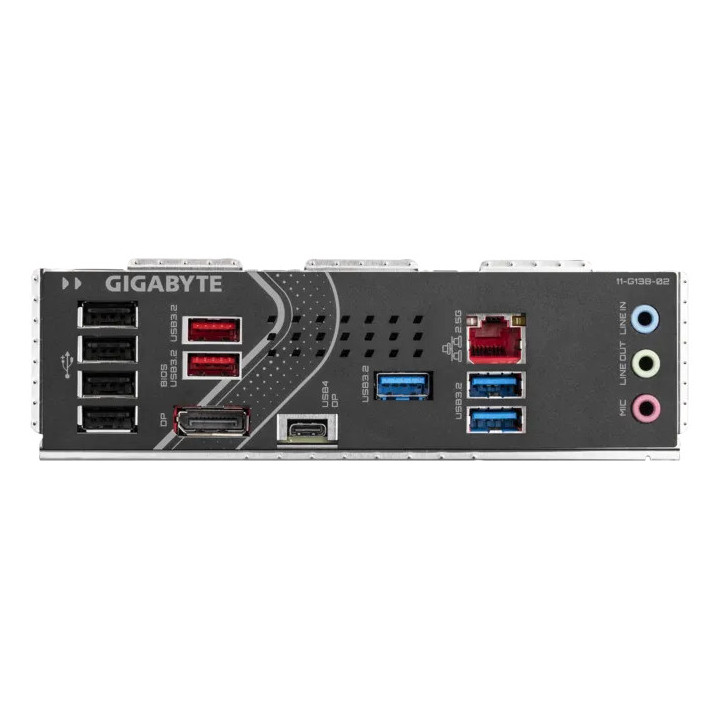

Rear panel I/O

iTE® I/O Controller Chip
BIOS

1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connectors

Internal I/O Connectors;
1 x 24-pin ATX main power connector;
2 x 8-pin ATX 12V power connectors;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
3 x system fan headers;
1 x system fan/water cooling pump header;
3 x addressable RGB Gen2 LED str
CPU's supported

LGA1851 socket: Support for Intel® Core™ Ultra Processors;
(Go to GIGABYTE's website for the latest CPU support list.);
L3 cache varies with CPU
RAID

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
