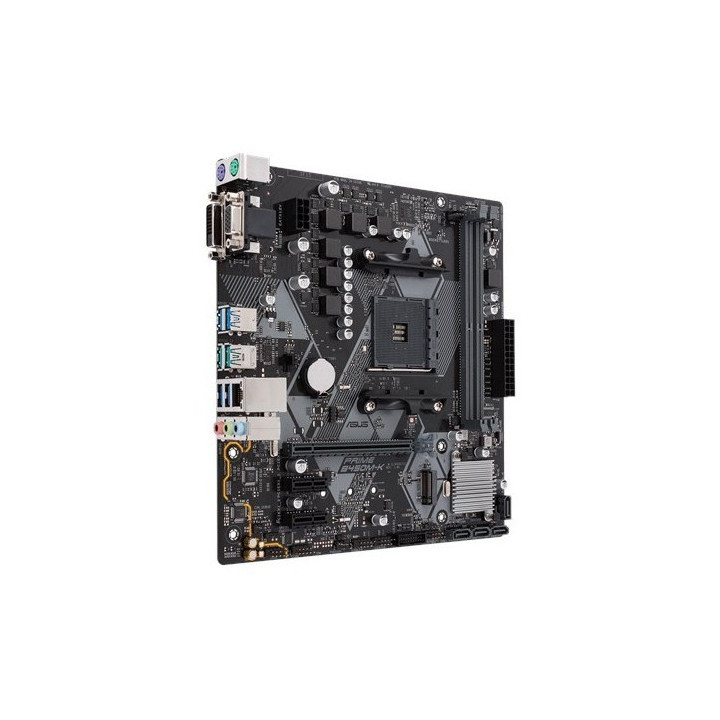

ASUS PRIME B450M-K s.AM4

CPU

• Chipset
  AMD B450
• Memory
  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
  2 x DIMM, Max. 32GB, DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  Multi-VGA output support : DVI-D/D-Sub ports
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
• Expansion Slots
  AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  AMD Ryzen™ with Radeon™ Vega Graphics Processor
  1 x PCIe 3.0/2.0 x16 (x8 mode) *¹
  AMD Athlon™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0/2.0 x16 (max at x4 mode)
  AMD B450 chipset
  2 x PCIe 2.0 x1
• Storage
  AMD B450 chipset :
  4 x SATA 6Gb/s port(s), gray,
  Support Raid 0, 1, 10
  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  AMD Athlon™ with Radeon™ Vega Graphics Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  ASUS LAN Guard
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC
  Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports
  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
  4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
  AMD B450 chipset :
  2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
  AMD B450 chipset :
  2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
  AMD B450 chipset :
  4 x USB 2.0/1.1 port(s) (4 at mid-board)
• Special Features
  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: Premium components provide better power efficiency
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Multi-language BIOS
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM

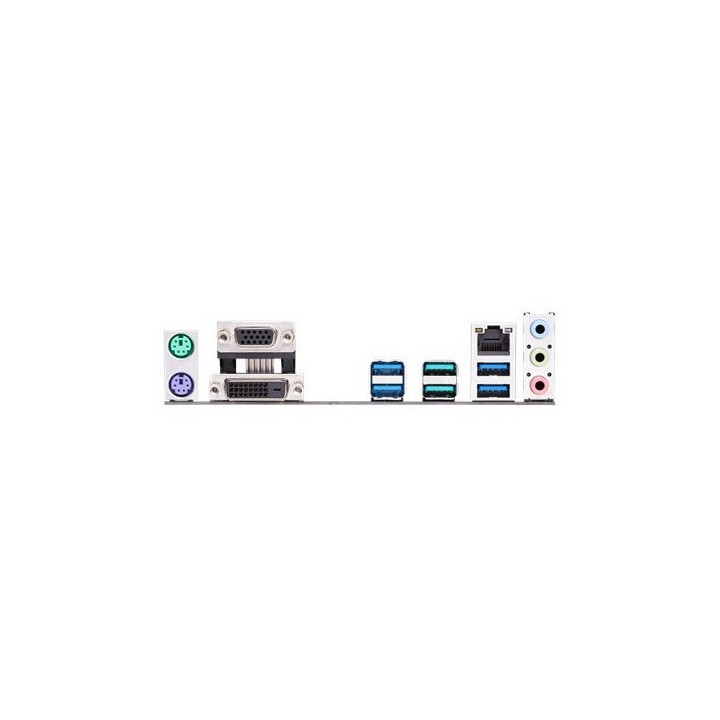

• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 2
  4 x USB 3.1 Gen 1
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x Speaker connector

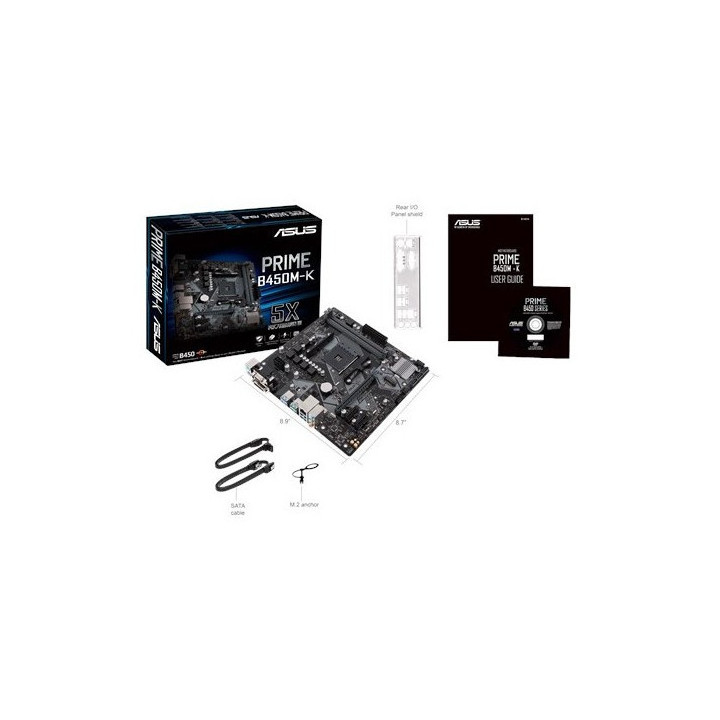

• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Anchor
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
• Operating System
  Windows® 10 64-bit
  Windows® 7 64-bit *²
• Form Factor
  mATX Form Factor
  8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
• Note
  1*Support NVMe PCIe RAID.
  2*Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors.
