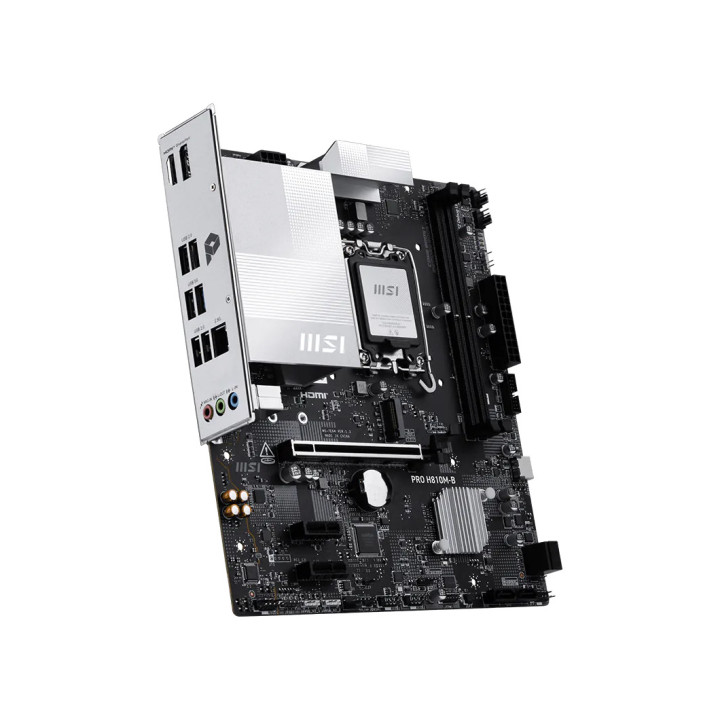

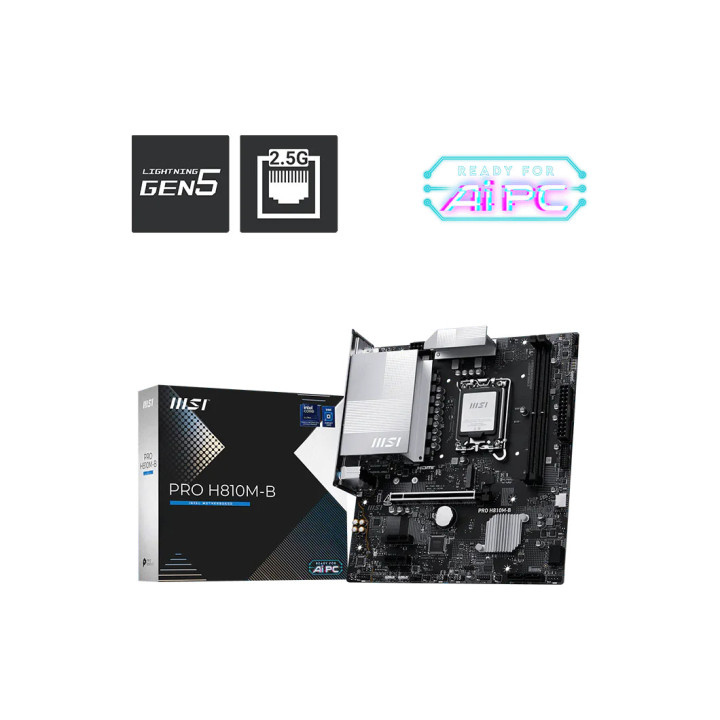

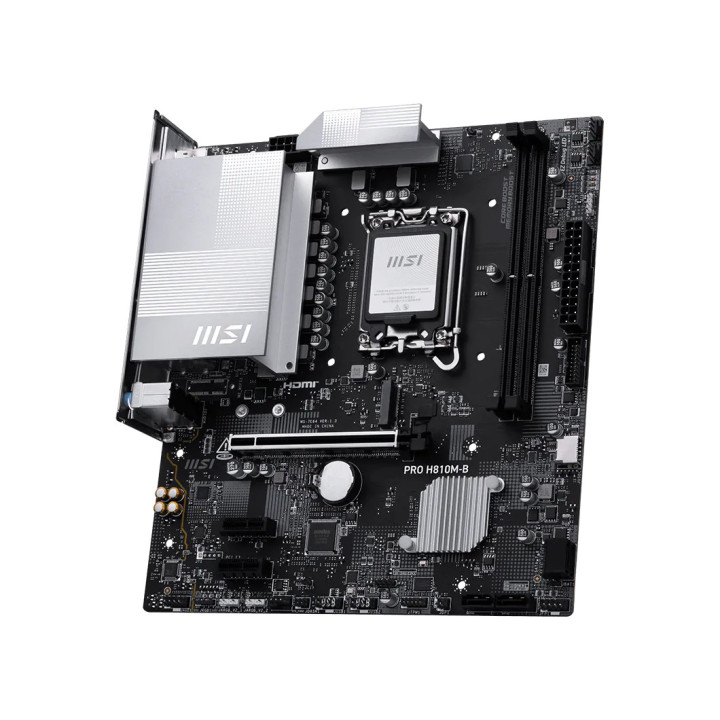

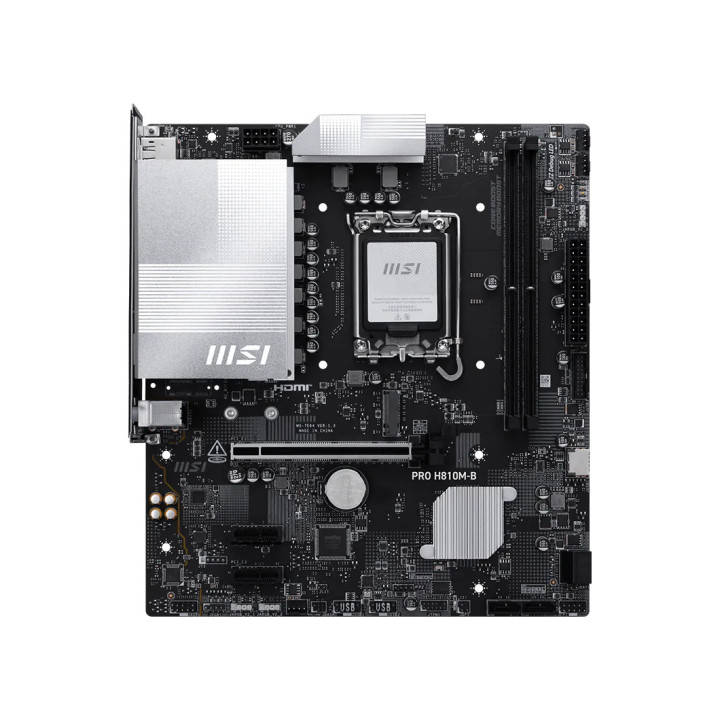

MSI PRO H810M-B

Name: MSI PRO H810M-B
Brand: MSI
SKU: 911-7E64-001
Price: 92.02 EUR
Availability: InStock

MSI

92,02 €

С вкл. данък

911-7E64-001_MO

Споделяне

_MO

Марка
Референция

911-7E64-001
В наличност

5 Артикула
Състояние

Нов

LAN

Realtek® 8125 2.5Gbps LAN
Manufacturer

MSI
OS

Support for Windows® 11 64-bit
Vendor_url

https://www.msi.com/Motherboard/PRO-H810M-B
Dimensions

mATX, 220mmx243.84mm
Graphics

1x HDMI™;
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*;
1x DisplayPort;
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*;
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU instal
Audio

Realtek® ALC897 Codec;
7.1-Channel High Definition Audio
Memory type

2x DDR5 UDIMM, Maximum Memory Capacity 128GB;
Memory Support DDR5 7200 - 4800 (JEDEC) MT/s;
Max. overclocking frequency:;
• 1DPC 1R Max speed up to 7200 MT/s;
• 1DPC 2R Max speed up to 6400 MT/s;

Supports Intel® POR Speed and JEDEC Speed;
Supports Intel®
Expansion Slots

1x PCI-E x16 slot;
2x PCI-E x1 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Storage

1x M.2;
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
4x SATA 6G;

*Please refer to the manual for M.2 SSD heatsink restrictions.
Other

4x EZ Debug LED;
1x EZ Memory Detection LED
Chipset

INTEL H810
Дънна платка - чипсет

INTEL H810
Дънна платка - поддържан тип памет

DDR5
Дънна платка - честота на паметта

4800 MHz
6400 MHz
7200 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове

Display Port
USB 2.0
USB 3.2
USB

4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
2x USB 5Gbps Type A (Front);
1x USB 10Gbps Type C (Front)

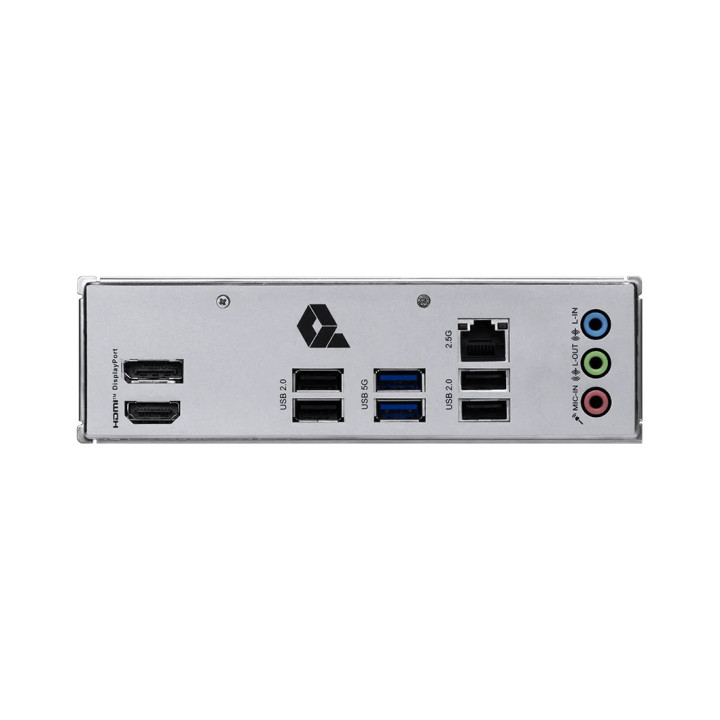

Rear panel I/O

DisplayPort;
USB 2.0;
USB 5Gbps Type-A;
2.5G LAN;
Audio Connectors;
HDMITM;
USB 2.0
Connectors

1x Power Connector(ATX_PWR);
1x Power Connector(CPU_PWR);
1x CPU Fan;
2x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Tuning Controller connector(JDASH);
3x Addressable V2 RGB LED connector (JARGB_V2);
1x RGB LED
CPU's supported

Supports Intel® Core™ Ultra Processors (Series 2)
Socket

LGA 1851
