MSI MAG B850 TOMAHAWK MAX WFII
MSI MAG B850 TOMAHAWK MAX WFII
MSI MAG B850 TOMAHAWK MAX WFII
MSI MAG B850 TOMAHAWK MAX WFII
MSI MAG B850 TOMAHAWK MAX WFII

MSI MAG B850 TOMAHAWK MAX WFII

MSI
300,63 €
С вкл. данък
911-7E62-015_MO
Споделяне

_MO

  • Марка
  • Референция
    911-7E62-015
  • В наличност
    5 Артикула
  • Състояние
    Нов

  • Bluetooth
    Supports Bluetooth® 5.4**, MLO, 4KQAM;
    ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
  • LAN
    Realtek® 8126VB 5G LAN
  • Manufacturer
    MSI
  • OS
    Support for Windows® 11 64-bit
  • Vendor_url
    https://www.msi.com/Motherboard/MAG-B850-TOMAHAWK-MAX-WIFI
  • Graphics
    1x HDMI™;
    Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*;
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • Audio
    Realtek® ALC4080 Codec;
    7.1-Channel USB High Performance Audio;
    Supports up to 32-bit/384kHz playback on front panel;
    Supports S/PDIF output
  • Memory type
    4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
    Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;
    Ryzen™ 9000 Series Processors max. overclocking frequency:;
    • 1DPC 1R Max speed up to 8400+ MT/s;
    • 1DPC 2R Max speed up to 6400+ MT/s;
    • 2
  • Expansion Slots
    3x PCI-E x16 slot;
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);

    PCI_E1 slot;
    • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processor
  • Storage
    4x M.2;
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices;
    M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices;
  • Chipset
    AMD B850
  • Дънна платка - чипсет
    AMD B850
  • Дънна платка - поддържан тип памет
    DDR5
  • Дънна платка - честота на паметта
    4800 MHz
    5600 MHz
    6400 MHz
    8400 MHz
    9000 MHz
  • Дънна платка - интерфейси
    M.2 (NVMe) конектор
  • Дънна платка - портове
    HDMI
    USB 2.0
    USB 3.2
  • Дънна платка - форм фактор
    ATX
  • USB
    4x USB 2.0 (Rear);
    4x USB 2.0 (Front);
    1x USB 5Gbps Type A (Rear);
    4x USB 5Gbps Type A (Front);
    2x USB 10Gbps Type A (Rear);
    3x USB 10Gbps Type C (Rear);
    1x USB 20Gbps Type C (Front)
  • Form Factor
    ATX, 243.84mmx304.8mm

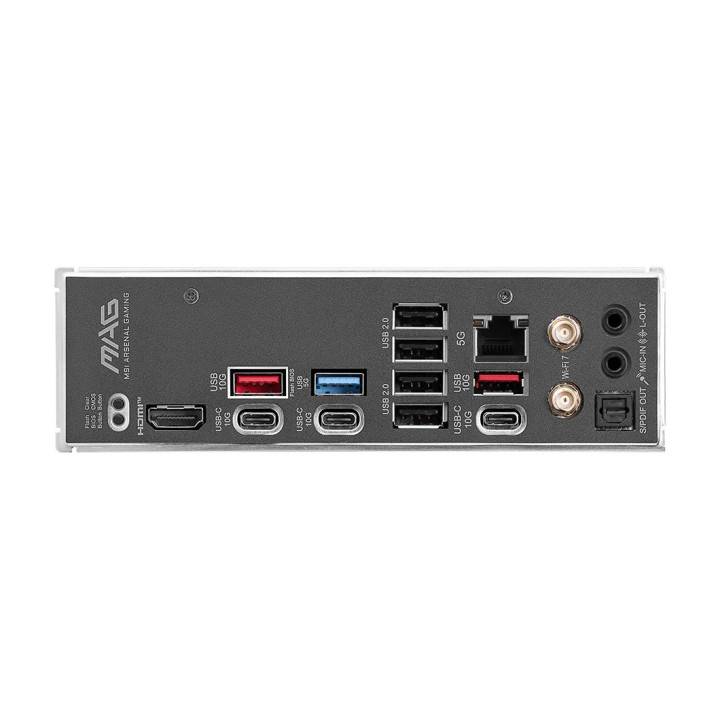

  • Rear panel I/O
    Clear CMOS Button;
    USB 10Gbps Type-A;
    USB 5Gbps Type-A;
    USB 2.0;
    5G LAN;
    Wi-Fi / Bluetooth;
    Audio Connectors;
    Flash BIOS Button;
    HDMI™;
    USB 10Gbps Type-C;
    USB 10Gbps Type-C;
    USB 10Gbps Type-A
  • Connectors
    1x Power Connector(ATX_PWR);
    2x Power Connector(CPU_PWR);
    1x Power Connector(PCIE_PWR 8pin);
    1x CPU Fan;
    1x Combo Fan (Pump_Sys Fan);
    6x System Fan;
    1x EZ Conn-header (JAF_2);
    2x Front Panel (JFP);
    1x Chassis Intrusion (JCI);
    1x Front Audio (JAUD);
    3x Add
  • CPU's supported
    Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
  • RAID
    Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
  • Wireless
    Wi-Fi 7 Solution;
    The Wireless module is pre-installed in the M.2 (Key-E) slot;
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps;
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be;

    * 6GHz band support may depend on every country’s regulations and
  • Socket
    Socket AM5
