LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
-
Manufacturer
GIGABYTE
-
OS
Support for Windows 11 64-bit;Support for Windows 10 64-bit
-
Vendor_url
https://www.gigabyte.com/Motherboard/X870-GAMING-WIFI6#kf
-
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HD
-
Audio
Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
-
Memory type
Support for DDR5;8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capaci
-
Warranty
36 Months
-
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0
-
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs;-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;-AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSD
-
Chipset
AMD X870
-
Дънна платка - сокет
AM5
-
Дънна платка - чипсет
AMD X870
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - честота на паметта
4400 MHz
4800 MHz
5200 MHz
5600 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6666 MHz
6800 MHz
7000 MHz
7200 MHz
7600 MHz
7800 MHz
8000 MHz
8200 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
-
Дънна платка - форм фактор
ATX
-
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
-

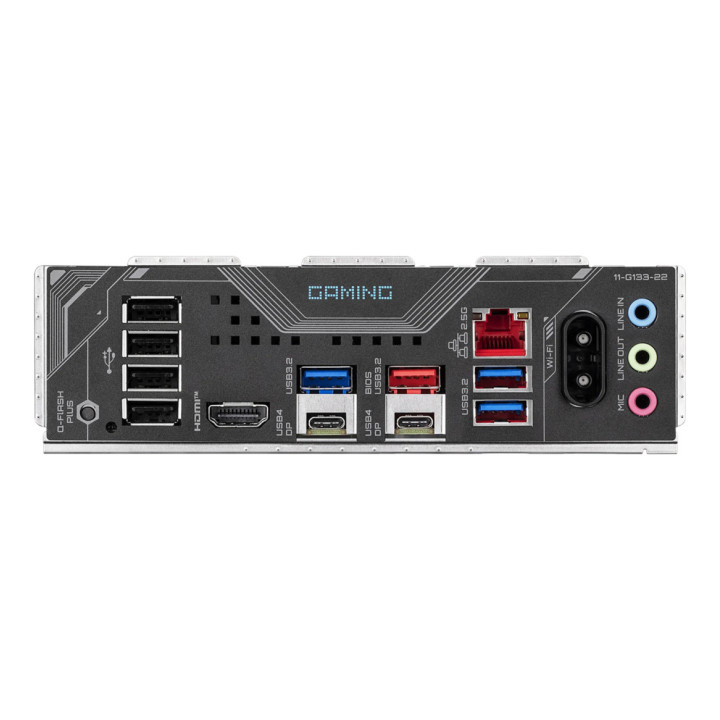

Rear panel I/O
iTE® I/O Controller Chip
-
BIOS
1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Connectors
Internal I/O Connectors;-1 x 24-pin ATX main power connector;-1 x 8-pin ATX 12V power connector;-1 x 4-pin ATX 12V power connector;-1 x CPU fan header;-1 x CPU fan/water cooling pump header;-4 x system fan headers;-3 x addressable RGB Gen2 LED strip heade
-
CPU's supported
AMD Socket AM5, support for;-AMD Ryzen™ 9000 Series Processors/;-AMD Ryzen™ 8000 Series Processors/;-AMD Ryzen™ 7000 Series Processors
-
Wireless
Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0);- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 80MHz wireless standard;(Actual data rate may vary depending on environment and equipment.)
