LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Strea
-
OS
- Microsoft Windows® 10 64-bit / 11 64-bit
-
Vendor_url
https://www.asrock.com/mb/Intel/B760M%20Pro%20RS/index.asp#Specification
-
Graphics
- Intel® Xe Graphics Architecture (Gen 12); - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
-
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
-
Memory type
- Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 192GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
-
Warranty
36 Months
-
Expansion Slots
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT); - Supports AMD Cross
-
Storage
CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PC
-
Chipset
- Intel® B760
-
Дънна платка - чипсет
INTEL B760
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - брой слотове за памет
4 бр
-
Дънна платка - честота на паметта
7200 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
Micro ATX
-
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
-

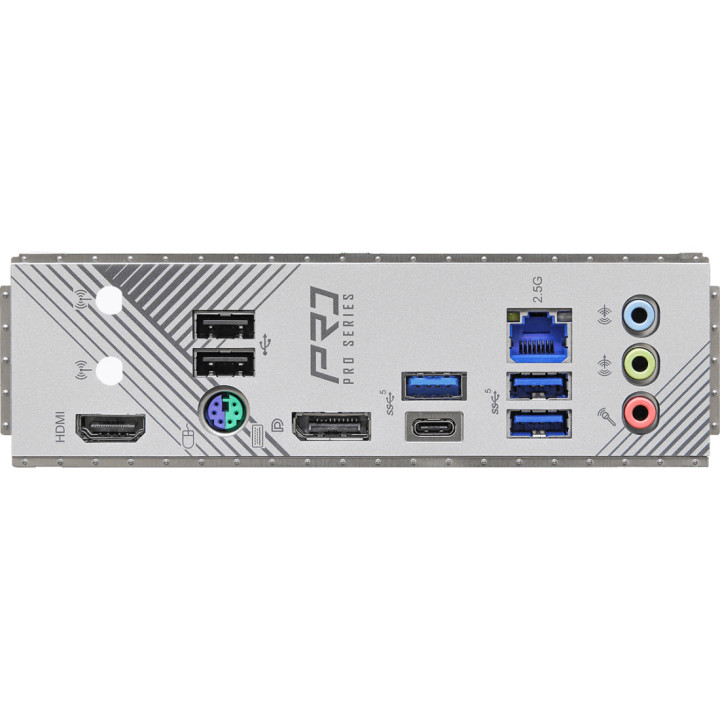

Rear panel I/O
- 2 x Antenna Mounting Points; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 3 x USB 3.2 Gen1 Type-A Ports; - 2 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker /
-
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
-
Connectors
- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 4 x Chassis/Water Pum
