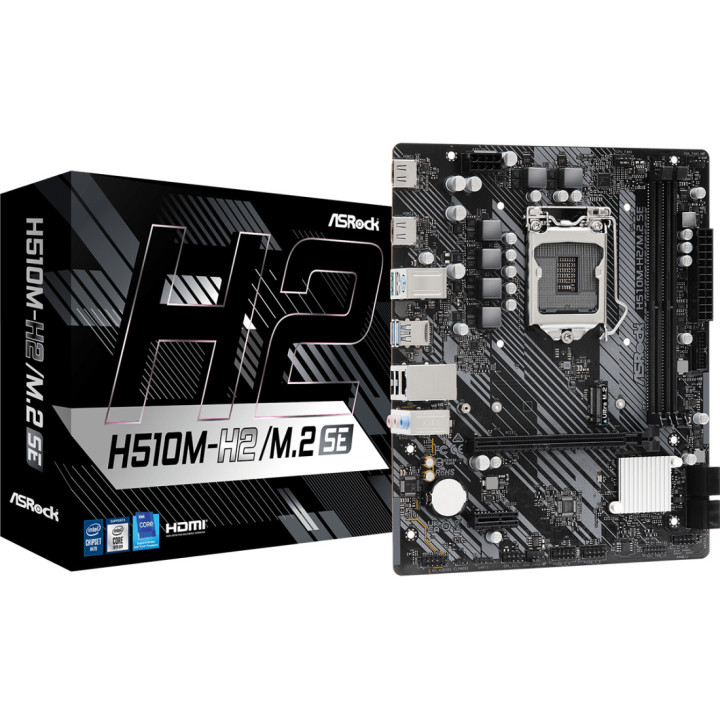

ASROCK H510M-H2 SE M.2 NVME

ASROCK H510M-H2/M.2 SE /1200
Product ID: 69106
Mnfr. Part#: H510M-H2/M.2 SE

• CPU`s supported: - Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200); - Supports Intel® Turbo Boost Max 3.0 Technology

• Memory type: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 64GB**; - Supports Intel® Extreme Memory Profile (XMP) 2.0; - 15? Gold Contact in DIMM Slots

• Chipset: - Intel® H470

• Graphics: - 2 x HDMI Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz; Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz

• Expansion Slots: Intel® 11th Gen & 10th Gen Processors: - 1 x PCIe 4.0 x16 Slot (PCIE1)*; Intel® H470 Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)**

• Storage: Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*; - 4 x SATA3 6.0 Gb/s Connectors

• I/O: - 1 x PS/2 Mouse/Keyboard Port; - 2 x HDMI Ports; - 2 x USB 2.0 Ports; - 4 x USB 3.2 Gen1 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone

• Connectors: - 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

• Audio: - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• LAN: - Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H

• BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support

• Form Factor: - Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm

• OS: - Microsoft® Windows® 10 64-bit / 11 64-bit
