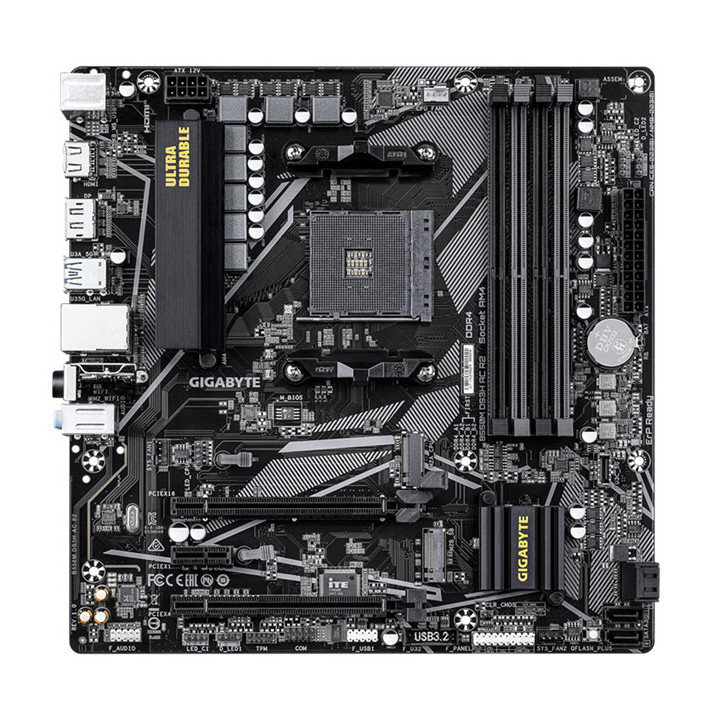

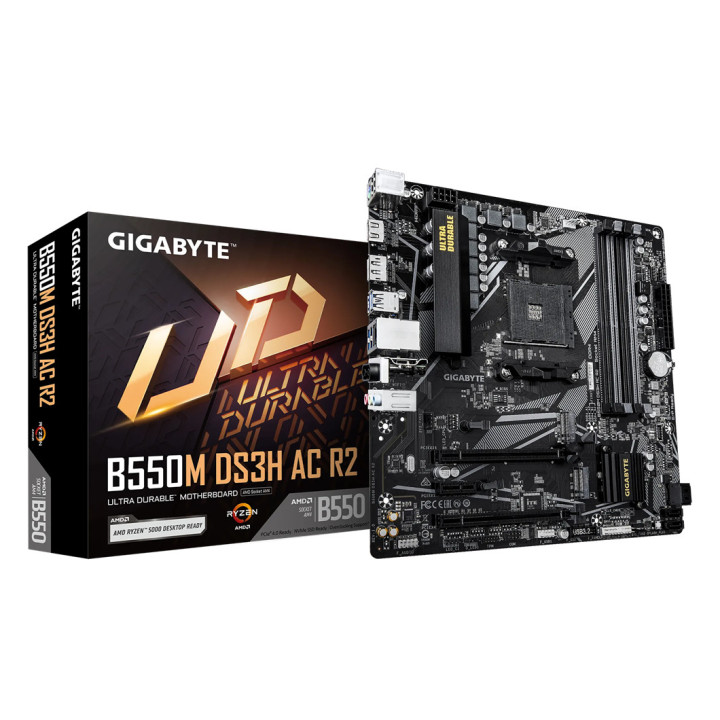

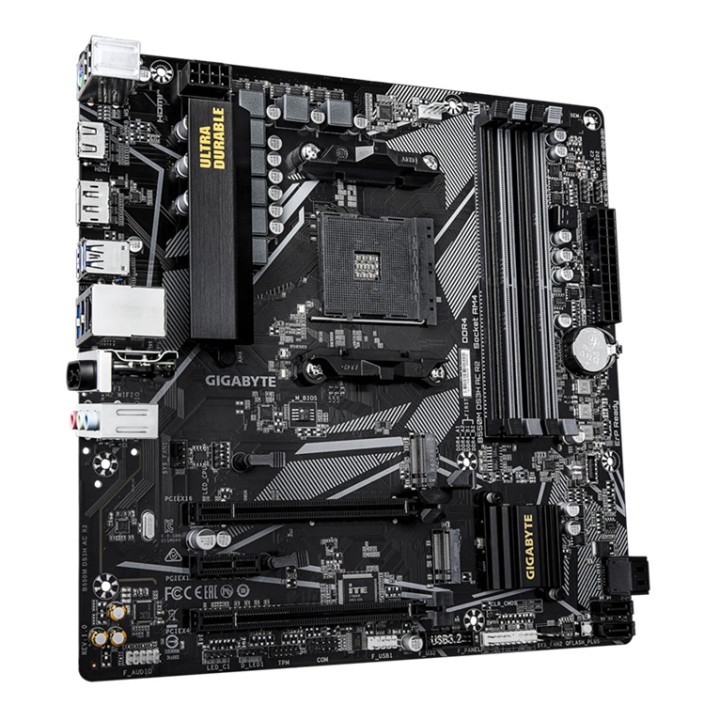

GB B550M DS3H AC R2 / AM4

Name: GB B550M DS3H AC R2 / AM4
Brand: GIGABYTE
SKU: B550M DS3H AC R2 1.0
Price: 102.77 EUR
Availability: InStock

GIGABYTE

102,77 €

С вкл. данък

B550M DS3H AC R2 1.0_MO

Споделяне

GB B550 4xDDR4 4xSATA3 RAID HDMI DVI 2xM2 GLAN 2xPCIEx16 1xPCIEx1 WiFi_MO

Марка
Референция

B550M DS3H AC R2 1.0
В наличност

5 Артикула
Състояние

Нов

Bluetooth

5.0
LAN

Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Manufacturer

GIGABYTE
OS

Support for Windows 11 64-bit;Support for Windows 10 64-bit
Vendor_url

https://www.gigabyte.com/Motherboard/B550M-DS3H-AC-R2
Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz;* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@
Audio

Realtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio.;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for
Memory type

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory;Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200
Warranty

36 Months
Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode;- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode;* The PCIEX16 slot can only support a graphics card
Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:;- AMD Ryzen™ 5000/ 3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs;- AMD Ryzen™ 5000 G/ 4000 G/ 3000 G Series Processors support SATA and PCIe 3.0 x
Chipset

AMD B550
Дънна платка - сокет

AM4
Дънна платка - чипсет

AMD B550
Дънна платка - поддържан тип памет

DDR4
Дънна платка - честота на паметта

3200 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
3866 MHz
4000 MHz
4133 MHz
4266 MHz
4400 MHz
4600 MHz
4733 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове

USB 2.0
USB 3.2
Дънна платка - форм фактор

Micro ATX
USB

CPU:;- 4 x USB 3.2 Gen 1 ports on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 2 x USB 3.2 Gen 1 ports available through the internal USB header;- 4 x USB 2.0/1.1 ports (2 ports on
Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

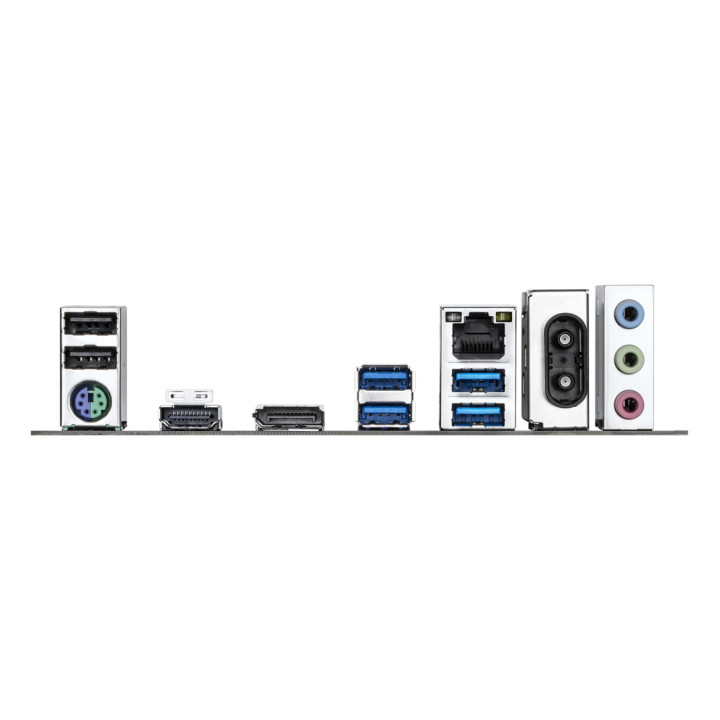

Rear panel I/O

iTE® I/O Controller Chip
BIOS

1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connectors

1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable LED strip headers;2 x RGB LED strip headers;1 x CPU cooler LED strip/RGB LED strip header;2 x M.2 Socket 3 connectors;4 x SATA
CPU's supported

AMD Socket AM4, support for:;AMD Ryzen™ 5000 G-Series Processors/;AMD Ryzen™ 5000 Series Processors/;AMD Ryzen™ 4000 G-Series Processors/;AMD Ryzen™ 3000 G-Series Processors/;AMD Ryzen™ 3000 Series Processors;(Go to GIGABYTE's website for the latest CPU s
Wireless

Realtek® Wi-Fi RTL8821CE;- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band;- BLUETOOTH 5.0;- Support for 11ac wireless standard
