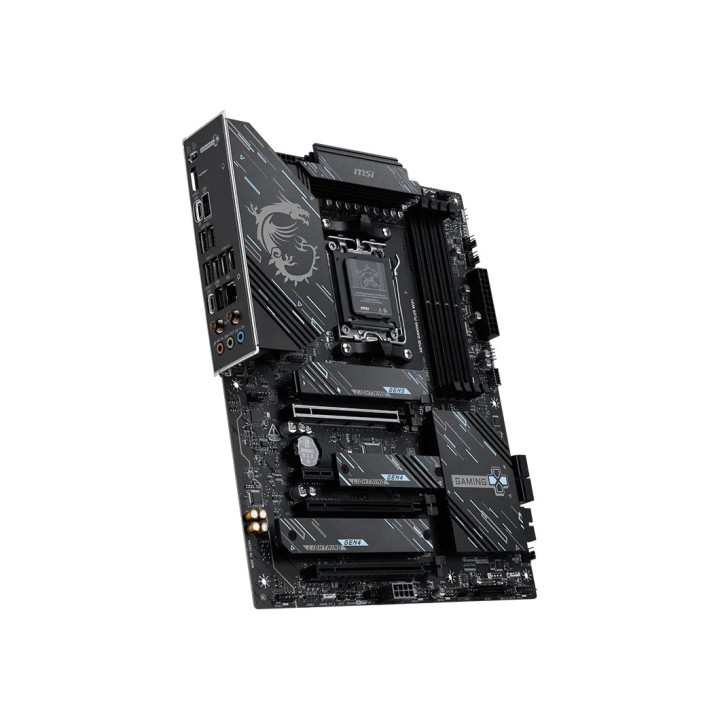

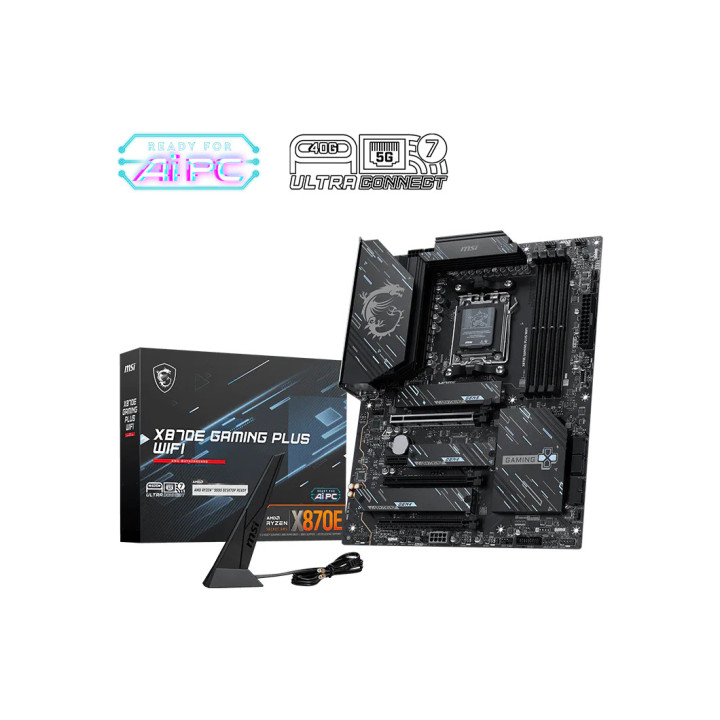

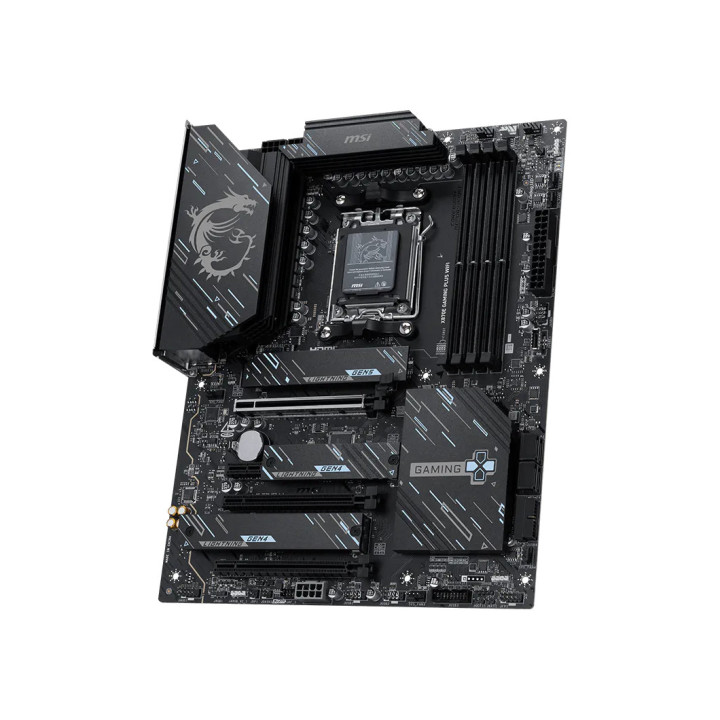

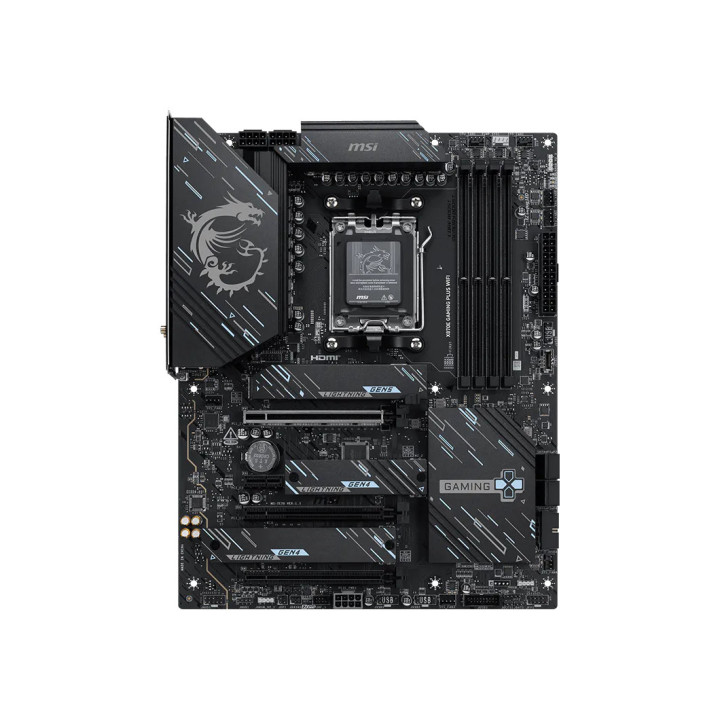

MSI X870E GAMING PLUS WIFI

Name: MSI X870E GAMING PLUS WIFI
Brand: MSI
SKU: 911-7E70-001
Price: 239.28 EUR
Availability: InStock

MSI

239,28 €

С вкл. данък

911-7E70-001_MO

Споделяне

_MO

Марка
Референция

911-7E70-001
В наличност

5 Артикула
Състояние

Нов

Bluetooth

Supports Bluetooth® 5.4**, MLO, 4KQAM
LAN

Realtek® 8126VB 5G LAN
Manufacturer

MSI
OS

Support for Windows® 11 64-bit
Vendor_url

https://www.msi.com/Motherboard/X870E-GAMING-PLUS-WIFI
Dimensions

ATX 243.84mmx304.8mm
Graphics

1x HDMI™;
Support HDMITM 2.1, maximum resolution of 4K 60Hz*;
1x Type-C DisplayPort;
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz*;
*Available only on processors featuring integrated graphics. Graphics s
Audio

Realtek® ALC897;
7.1-Channel High Definition Audio
Memory type

4x DDR5 UDIMM, Maximum Memory Capacity 256GB;
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;
Ryzen™ 9000 Series Processors max. overclocking frequency:;
• 1DPC 1R Max speed up to 8200+ MT/s;
• 1DPC 2R Max speed up to 6400+ MT/s;
• 2
Expansion Slots

3x PCI-E x16 slot;
1x PCI-E x1 slot;
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset);

PCI_
Storage

3x M.2;
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devi
Other

4x EZ Debug LED;
1x EZ Memory Detection LED
Chipset

AMD X870E
Дънна платка - чипсет

AMD X870E
Дънна платка - поддържан тип памет

DDR5
Дънна платка - честота на паметта

4800 MHz
5600 MHz
6400 MHz
8200 MHz
9000 MHz
Дънна платка - интерфейси

M.2 (NVMe) конектор
SATA 3.0
Дънна платка - портове

HDMI
USB 2.0
USB 3.2
USB

4x USB 2.0 (Rear);
6x USB 2.0 (Front);
2x USB 5Gbps Type A (Rear);
4x USB 5Gbps Type A (Front);
2x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Front);
1x USB 20Gbps Type C (Rear);
1x USB 40Gbps Type C (Rear)

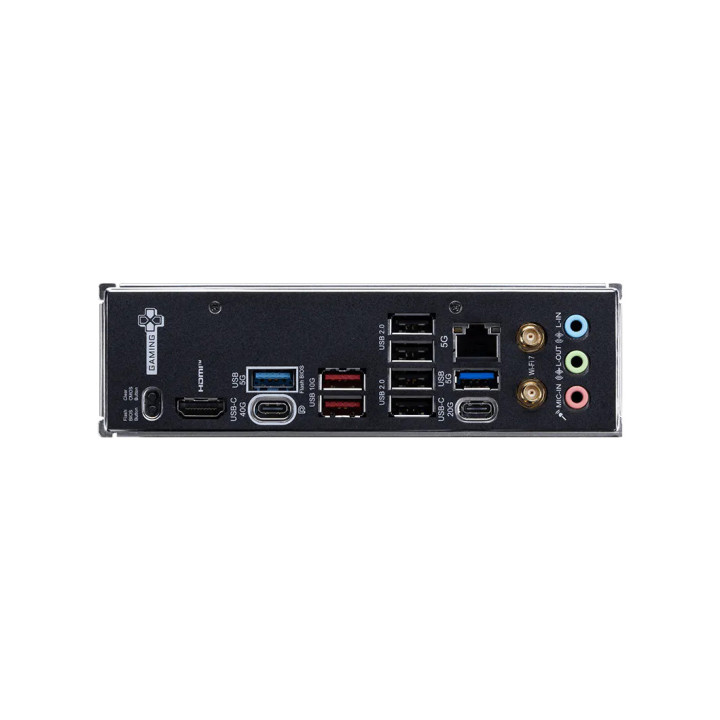

Rear panel I/O

Clear CMOS Button;
USB 5Gbps Type-A;
USB 10Gbps Type-A;
USB 2.0;
5G LAN;
Wi-Fi / Bluetooth;
Audio connectors;
Flash BIOS Button;
HDMI™;
USB 40Gbps Type-C;
USB 2.0;
USB 20Gbps Type-C;
USB 5Gbps Type-A
Connectors

1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x Power Connector(PCIE_PWR 8pin);
1x CPU Fan;
1x Combo Fan (Pump_Sys Fan);
6x System Fan;
1x EZ Conn-header (JAF_1);
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Tun
CPU's supported

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
RAID

• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices;
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices;
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Wireless

Wi-Fi 7;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be;

Supports Bluetooth® 5.4**, MLO, 4KQAM;

* 6GHz band support may depend on e
Socket

Socket AM5
