LAN
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
-
Manufacturer
GIGABYTE
-
OS
Support for Windows 11 64-bit;Support for Windows 10 64-bit
-
Vendor_url
https://www.gigabyte.com/Motherboard/B760M-H-V2
-
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz;* Support for DisplayPort 1.2 version and HDCP 2.3;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Suppor
-
Audio
Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
-
Memory type
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules;2 x DDR5 DIMM sock
-
Warranty
36 Months
-
Expansion Slots
CPU:;- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16;Chipset:;- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
-
Storage
Chipset:;- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
-
Chipset
Intel® B760 Express Chipset
-
Дънна платка - сокет
LGA1700
-
Дънна платка - чипсет
INTEL B760
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - честота на паметта
4000 MHz
4800 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
8000 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
SATA 3.0
-
Дънна платка - портове
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
Micro ATX
-
USB
Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);- 2 x USB 2.0/1.1 ports available through the in
-
Form Factor
Micro ATX Form Factor; 24.4cm x 22.0cm
-

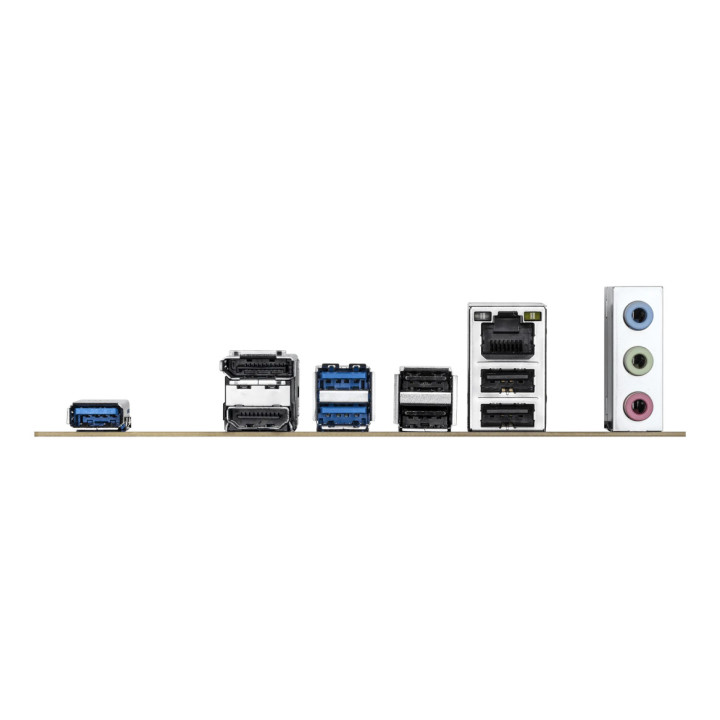

Rear panel I/O
iTE® I/O Controller Chip
-
BIOS
1 x 128 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Connectors
1 x 24-pin ATX main power connector;1 x 8-pin ATX 12V power connector;1 x CPU fan header;2 x system fan headers;2 x addressable RGB Gen2 LED strip headers;1 x M.2 Socket 3 connector;4 x SATA 6Gb/s connectors;1 x front panel header;1 x front panel audio he
-
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU
