Bluetooth
Supports Bluetooth® 5.3, FIPS, FISMA;
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
-
LAN
Realtek® RTL8125BG 2.5G LAN
-
Manufacturer
MSI
-
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
-
Vendor_url
https://www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI-DDR4
-
Graphics
1x HDMI™;
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*;
1x DisplayPort;
Support DP 1.4, maximum resolution of 4K 60Hz*;
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU instal
-
Audio
Realtek® ALC897 Codec;
7.1-Channel High Definition Audio;
Supports S/PDIF output
-
Memory type
4x DDR4, Maximum Memory Capacity 128GB;
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2
-
Expansion Slots
5x PCI-E x16 slot;
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset);
PCI_E5 Gen PCIe 3.0 sup
-
Storage
2x M.2;
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices;
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices;
4x SATA 6G;
* SATA8 will be unavailable when installin
-
Chipset
INTEL B760
-
Дънна платка - чипсет
INTEL B760
-
Дънна платка - поддържан тип памет
DDR4
-
Дънна платка - честота на паметта
2666 MHz
2933 MHz
3200 MHz
3333 MHz
3400 MHz
3466 MHz
3600 MHz
3733 MHz
3800 MHz
4000 MHz
4200 MHz
4266 MHz
4400 MHz
4600 MHz
4800 MHz
5000 MHz
5066 MHz
5200 MHz
5333 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
ATX
-
USB
4x USB 2.0 (Rear);
4x USB 2.0 (Front);
2x USB 5Gbps Type A (Front);
1x USB 5Gbps Type C (Front);
2x USB 10Gbps Type A (Rear);
1x USB 10Gbps Type C (Rear)
-
Form Factor
ATX, 243.84mmx304.8mm
-

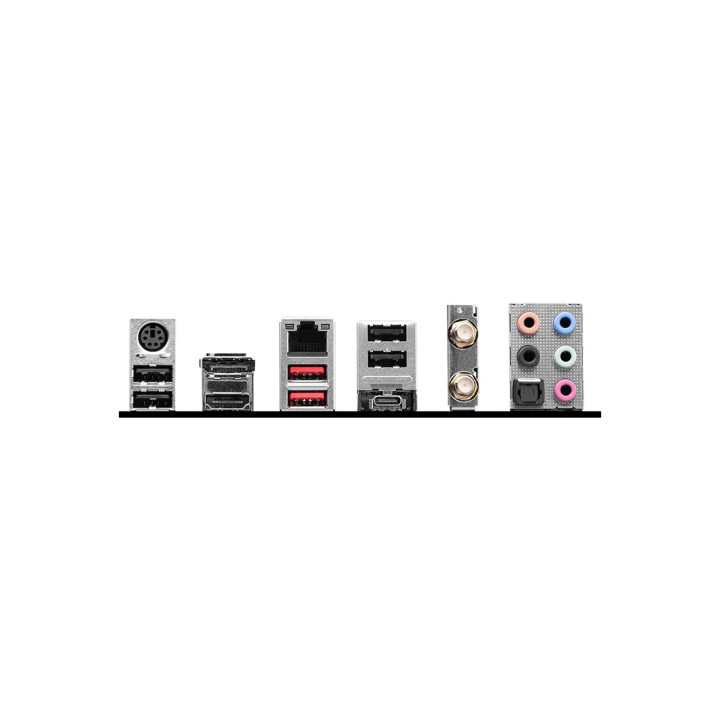

Rear panel I/O
Keyboard / Mouse;
DisplayPort;
2.5G LAN;
USB 2.0;
Wi-Fi / Bluetooth;
Audio Connectors;
USB 2.0;
HDMI™;
USB 3.2 Gen 2 10Gbps (Type-A);
USB 3.2 Gen 2 10Gbps (Type-C);
S/PDIF-OUT
-
Connectors
1x Power Connector(ATX_PWR);
2x Power Connector(CPU_PWR);
1x CPU Fan;
1x Pump Fan;
5x System Fan;
2x Front Panel (JFP);
1x Chassis Intrusion (JCI);
1x Front Audio (JAUD);
1x Printer Port (JLPT);
1x Com Port (JCOM);
2x Addressable V2 RGB LED connector (JAR
-
CPU's supported
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
-
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
-
Wireless
Intel® Wi-Fi 6E;
The Wireless module is pre-installed in the M.2 (Key-E) slot;
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps;
Supports 802.11 a/ b/ g/ n/ ac/ ax;
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be
-
Socket
LGA 1700
