LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
-
OS
- Microsoft® Windows® 10 64-bit
-
Vendor_url
https://www.asrock.com/mb/AMD/B550M-ITXac/index.asp#Specification
-
Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent displa
-
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec); - Supports Surge Protection
-
Memory type
- Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 36
-
Warranty
36 Months
-
Expansion Slots
AMD Ryzen series CPUs (Matisse); - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*; AMD Ryzen series APUs (Renoir); - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*; - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on th
-
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x
-
Other
- Intel® 802.11ac WiFi Module; - Supports IEEE 802.11a/b/g/n/ac; - Supports Dual-Band (2.4/5 GHz); - Supports high speed wireless connections up to 433Mbps; - Supports Bluetooth 4.2 + High speed class II
-
Chipset
- AMD B550
-
Дънна платка - чипсет
AMD B550
-
Дънна платка - поддържан тип памет
DDR4
-
Дънна платка - брой слотове за памет
2 бр
-
Дънна платка - честота на паметта
3733 MHz
3800 MHz
3866 MHz
4000 MHz
4133 MHz
4200 MHz
4266 MHz
4333 MHz
4400 MHz
4466 MHz
4533 MHz
4600 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
Mini ITX
-
Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; - Solid Capacitor design
-

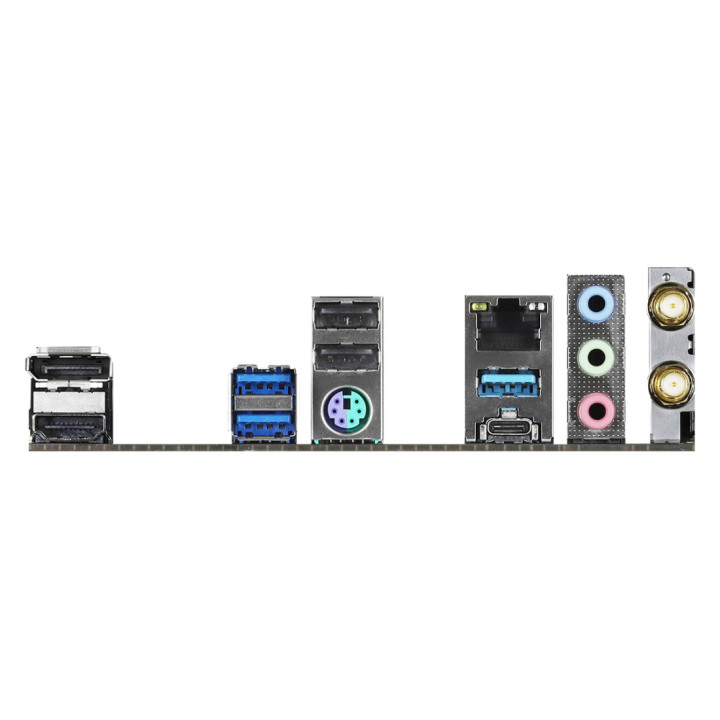

Rear panel I/O
- 2 x Antenna Ports; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 2 x USB 2.0 Ports (Supports ESD Protection); - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection); - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
-
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
-
Connectors
- 1 x RGB LED Header*; - 1 x Addressable LED Header**; - 1 x CPU Fan Connector (4-pin)***; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel
