Bluetooth
5.3
-
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Cust
-
Manufacturer
ASROCK
-
OS
Microsoft Windows® 11 64-bit
-
Vendor_url
https://www.asrock.com/MB/Intel/B860%20LiveMixer%20WiFi/index.asp#Gallery
-
Graphics
Intel® Xe LPG Graphics Architecture;- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
-
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);Impedance Sensing on Rear Out port;Individual PCB Layers for R/L Audio Channel;Nahimic Audio
-
Memory type
Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC);Supports Clocked Unbuffered DIMM (CUDIMM);Max. capacity of system memory: 256GB;Supports Intel® Extreme Memory Profile (XMP) 3.0x
-
Warranty
36 Months
-
Expansion Slots
CPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode;- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
-
Storage
CPU:;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset:;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 228
-
Chipset
Intel® B860
-
Дънна платка - сокет
LGA1851
-
Дънна платка - чипсет
INTEL B860
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - брой слотове за памет
4 бр
-
Дънна платка - честота на паметта
8666 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
-
Дънна платка - портове
HDMI
USB 2.0
USB 3.2
USB 4.0
-
Дънна платка - форм фактор
ATX
-
USB
CPU:;- 1 x Thunderbolt™ 4/USB4 Type-C (Rear);Chipset:;- 1 x USB 3.2 Gen1 Type-C (Front);- 10 x USB 3.2 Gen1 Type-A (6 Rear, 4 Front);- 10 x USB 2.0 (6 Rear, 4 Front)
-
Form Factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
-

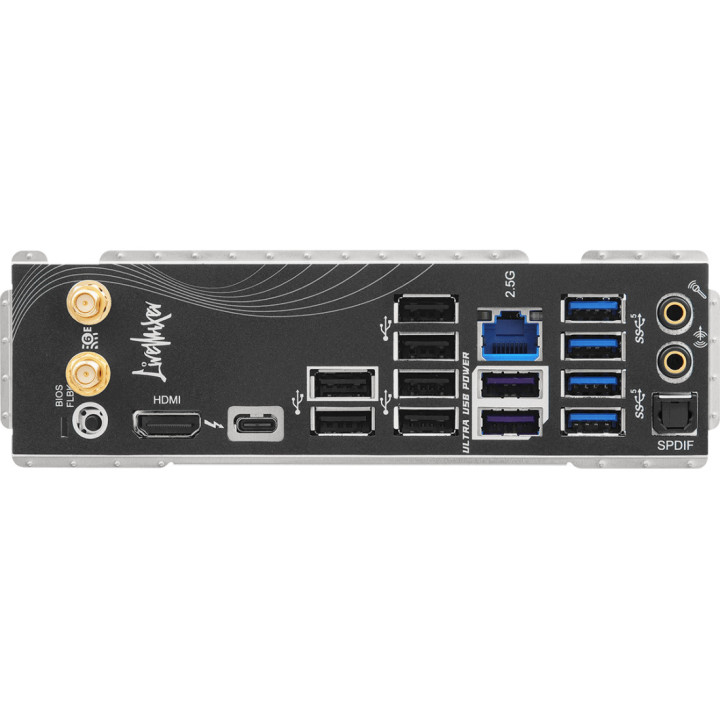

Rear panel I/O
2 x Antenna Ports;1 x HDMI Port;1 x Optical SPDIF Out Port;1 x Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s);6 x USB 3.2 Gen1 Ports;6 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;1 x Line Out Jack (Gold Audio Jack);1 x Microphone Input Jack (G
-
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
-
Connectors
1 x Thermistor Cable Header;1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pu
-
CPU's supported
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851);Supports Intel® Hybrid Technology;Supports Intel® Turbo Boost Max 3.0 Technology;Supports Intel® Thermal Velocity Boost (TVB);Supports Intel® Adaptive Boost Technology (ABT);Integrated NPU for de
-
Wireless
802.11axe Wi-Fi 6E Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe;Supports Dual-Band 2x2 with extended 6GHz band support;2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.3;Supports MU-MIMO
