LAN
1 x Realtek 2.5Gb Ethernet; TUF LANGuard
-
OS
Windows® 11, Windows® 10 64-bit
-
Vendor_url
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-ii/techspec/
-
Graphics
1 x DisplayPort**; 1 x HDMI™port***
-
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium audio c
-
Memory type
4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMe
-
Warranty
36 Months
-
Expansion Slots
Intel® CoreTM Processors (14th & 13th & 12th Gen)*; 1 x PCIe 5.0 x16 slot; Intel® B760 Chipset; 1 x PCIe 4.0 x4 slot; 1 x PCIe 3.0 x1 slot
-
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® CoreTM Processors (14th & 13th & 12th Gen); M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel® B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mo
-
Other
Wi-Fi 6E; 2x2 Wi-Fi 6E (802.11ax); Supports 2.4/5/6GHz frequency band*; Bluetooth® v5.3**
-
Chipset
Intel® B760 Chipset
-
Дънна платка - чипсет
INTEL B760
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - брой слотове за памет
4 бр
-
Дънна платка - честота на паметта
4800 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7800 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 2.0
USB 3.2
-
Дънна платка - форм фактор
Micro ATX
-
Form Factor
mATX Form Factor; 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
-

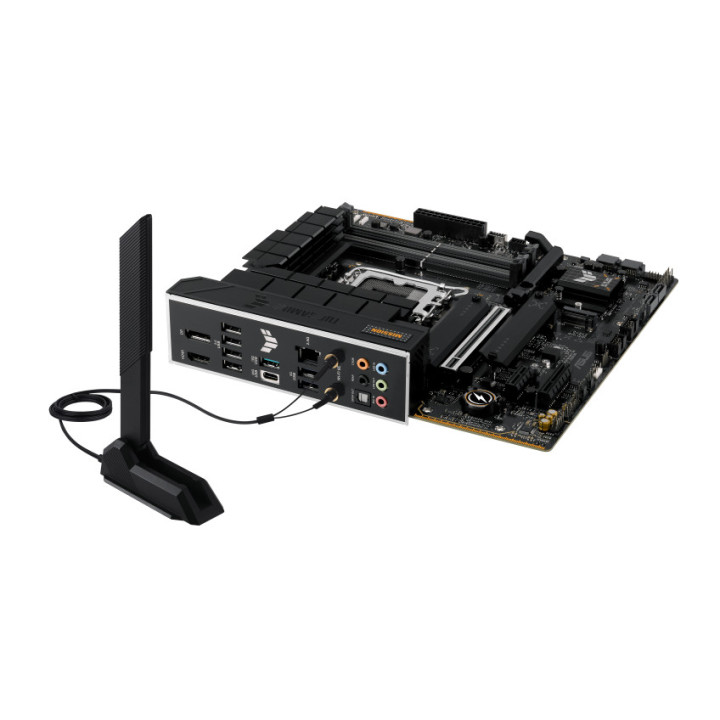

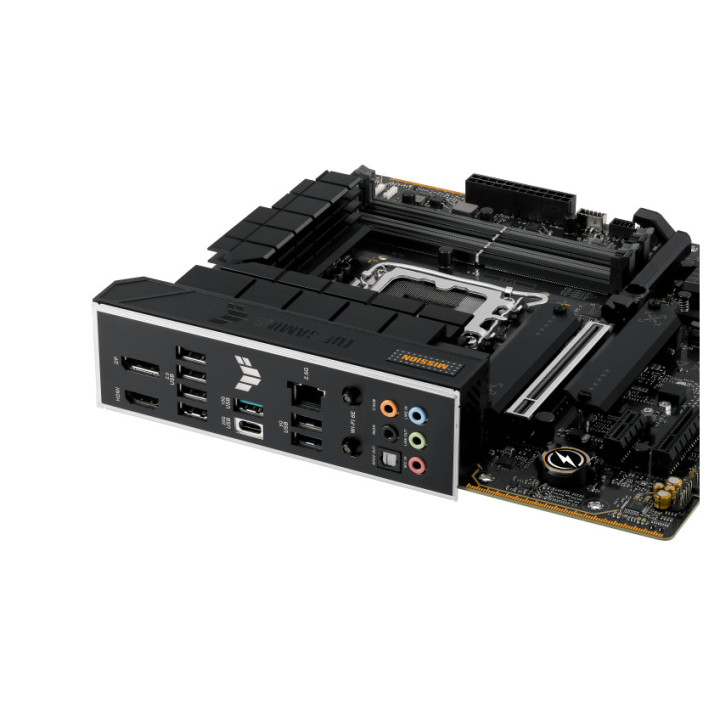

Rear panel I/O
1 x USB 20Gbps port (1 x USB Type-C®); 1 x USB 10Gbps port (1 x Type-A); 2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x Wi-Fi Module; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/P
-
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
-
Connectors
1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 2 x 8-pin +12V Power connectors; 3 x M.2 slots (Key M) ; 4 x SATA 6Gb/s ports; 1 x USB 10Gbps connector (sup
