LAN
1 x Intel® 2.5Gb Ethernet;
ASUS LANGuard
-
Model

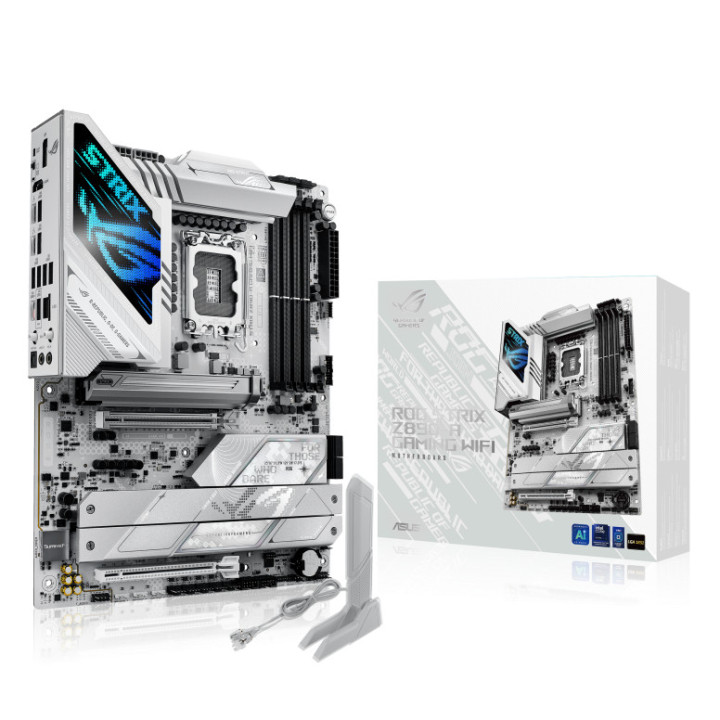

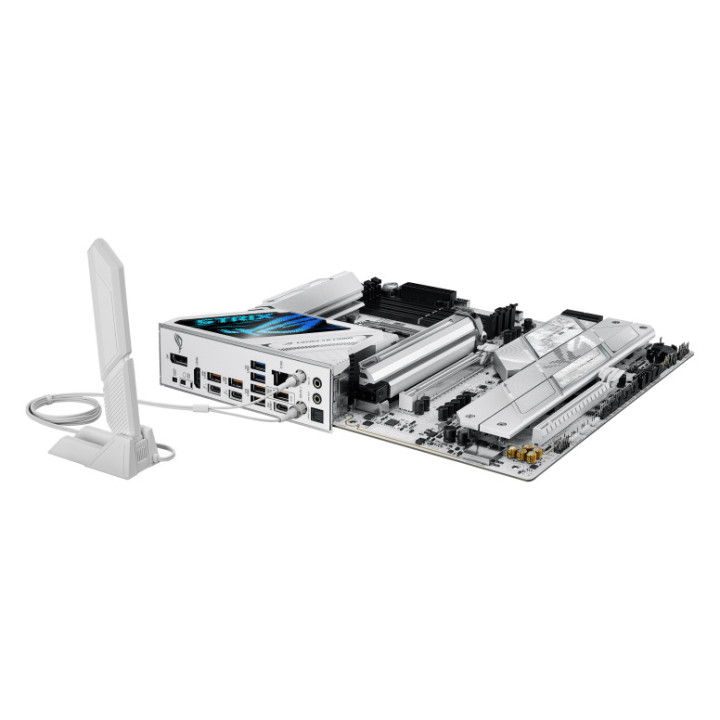

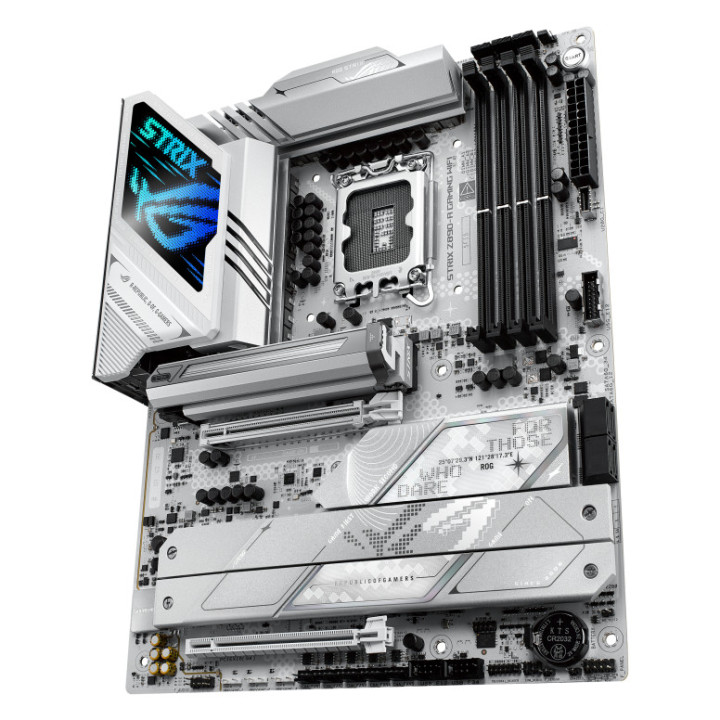

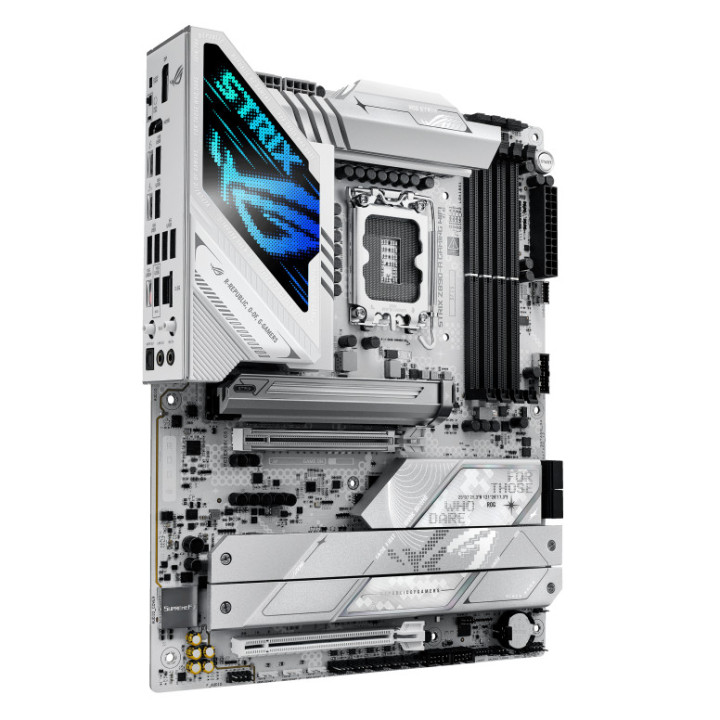

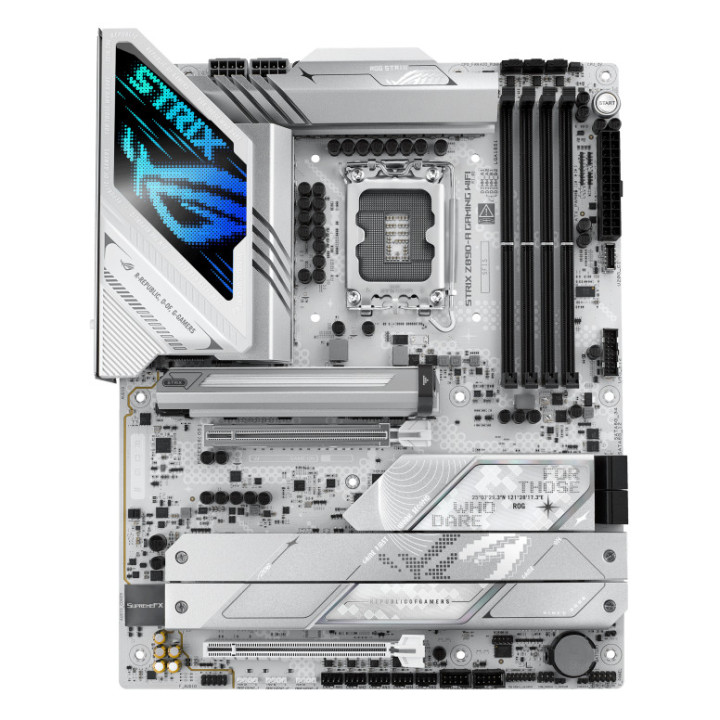

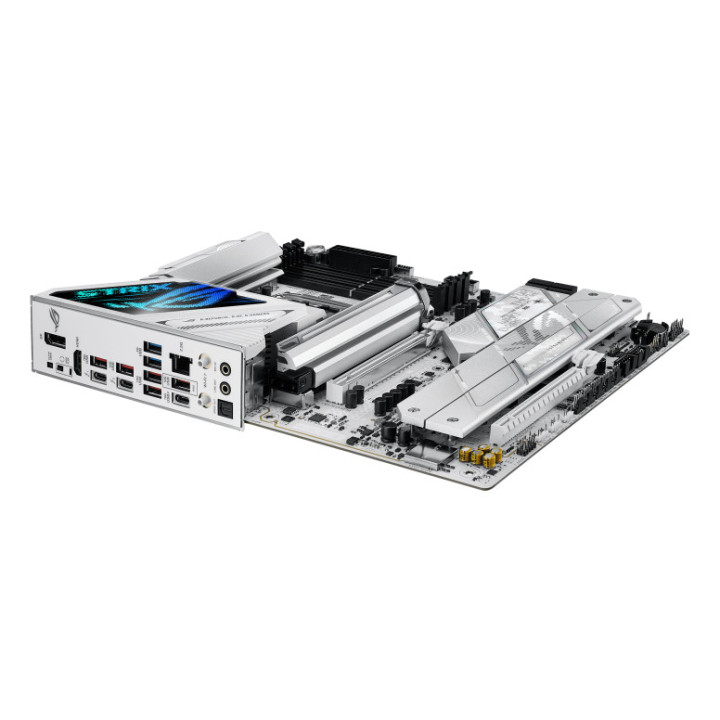

ROG STRIX Z890-A GAMING WIFI
-
Manufacturer
ASUS
-
OS
Windows 11 (22H2 later)
-
Vendor_url
https://rog.asus.com/motherboards/rog-strix/rog-strix-z890-a-gaming-wifi/
-
Dimensions
30.5 cm x 24.4 cm
-
Graphics
1 x DisplayPort;
1 x HDMI™ port;
2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs;
- Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
-
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*;
- Impedance sense for front and rear headphone outputs;
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;
- High quality 120 dB SNR stereo playback output
-
Memory type
4 x DIMM slots, max. 256GB, DDR5;
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);
Dual channel memory architecture;
Supports Intel® Extreme Memory Profile (XMP) memory module;
Supports DIMM Flex;
Supports DIMM FIT;
AS
-
Expansion Slots
Intel® Core™ Ultra Processors (Series 2);
1 x PCIe 5.0 x16 slot;
Intel® Z890 Chipset;
1 x PCIe 4.0 x16 slot (supports x4 mode)
-
Storage
Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports;
Intel® Core™ Ultra Processors (Series 2)*;
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);
Intel® Z890 Chipset;
M.
-
Chipset
Intel® Z890 Chipset
-
Дънна платка - чипсет
INTEL Z890
-
Дънна платка - поддържан тип памет
DDR5
-
Дънна платка - брой слотове за памет
4 бр
-
Дънна платка - честота на паметта
9066 MHz
-
Дънна платка - интерфейси
M.2 (NVMe) конектор
M.2 (SATA) конектор
SATA 3.0
-
Дънна платка - портове
Display Port
HDMI
USB 3.2
-
Дънна платка - форм фактор
ATX
-
USB
Rear USB (Total 10 ports);
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*;
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)**;
2 x USB 5Gbps ports (2 x Type-A);
Front USB (Total 7 ports);
1 x USB 20Gbps connector (supports
-
Form Factor
ATX Form Factor
-

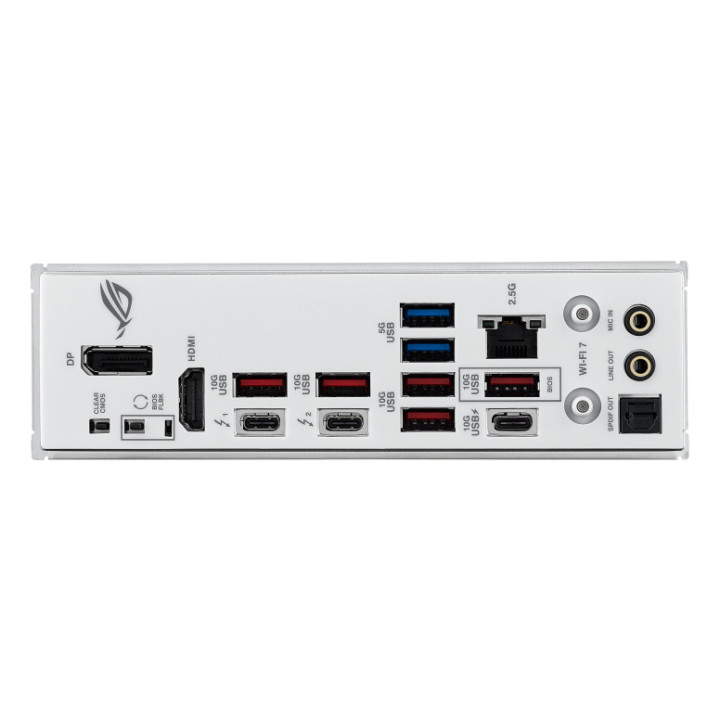

Rear panel I/O
2 x Thunderbolt™ 4 ports (2 x USB Type-C®);
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge);
2 x USB 5Gbps ports (2 x Type-A);
1 x DisplayPort;
1 x HDMI™ port;
1 x Wi-Fi module;
1 x Intel® 2.5Gb Ethernet port;
2 x Audi
-
BIOS
256 Mb UEFI AMI BIOS
-
Connectors
Fan and Cooling Related;
1 x 4-pin CPU Fan header;
1 x 4-pin CPU OPT Fan header;
1 x 4-pin AIO Pump header;
5 x 4-pin Chassis Fan headers;
Power Related;
1 x 24-pin Main Power connector;
2 x 8-pin +12V CPU Power connectors;
Storage Related;
5 x M.2 slot
-
CPU's supported
Support Intel® Core™ Ultra Processors (Series 2);
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
-
Wireless
Wi-Fi 7*;
2x2 Wi-Fi 7 (802.11be);
Supports 2.4/5/6GHz frequency band**;
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.;
Bluetooth® v5.4***;
*Wi-Fi features may vary depending on the operating system;
For Windows 11, Wi-Fi 7 will require 2
